Chapter 14 Backplane Unit Replacement 14-3

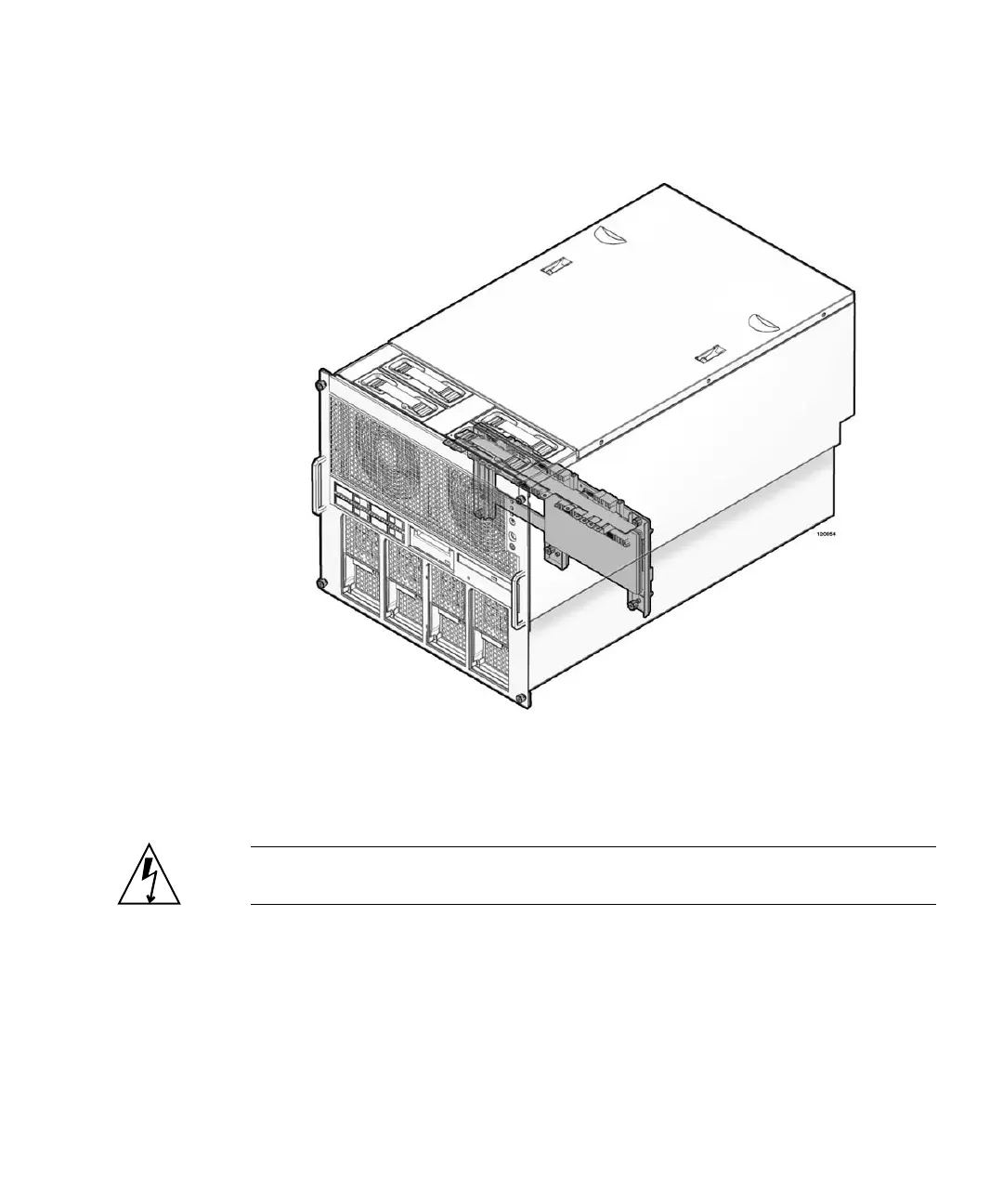

FIGURE 14-2 shows the backplane unit location on the M5000 server.
FIGURE 14-2 M5000 Server Backplane Unit Location
14.1.1 Accessing the M4000 Server Backplane Unit
Caution – There is an electrical hazard if the power cords are not disconnected. All
power cords must be disconnected to completely remove power from the server.
1. Power off the server.
This step includes turning the key switch to the Service position, confirming that
the POWER LED is off, and disconnecting power cables. See Section 4.4.1,
“Powering the Server Off Using Software” on page 4-12.
