Fujitsu SPARC Enterprise M5000 User Manual

Chapter 11 Memory Board Replacement 11-11
11.2.5 Removing the DIMMs
1. Open the plastic hinged DIMM cover on the memory board cover to expose the
DIMMs.
2. Pull the DIMM eject levers outwards to release the DIMM.
3. Pull the DIMM upwards to remove the DIMM from the socket (
FIGURE 11-6).

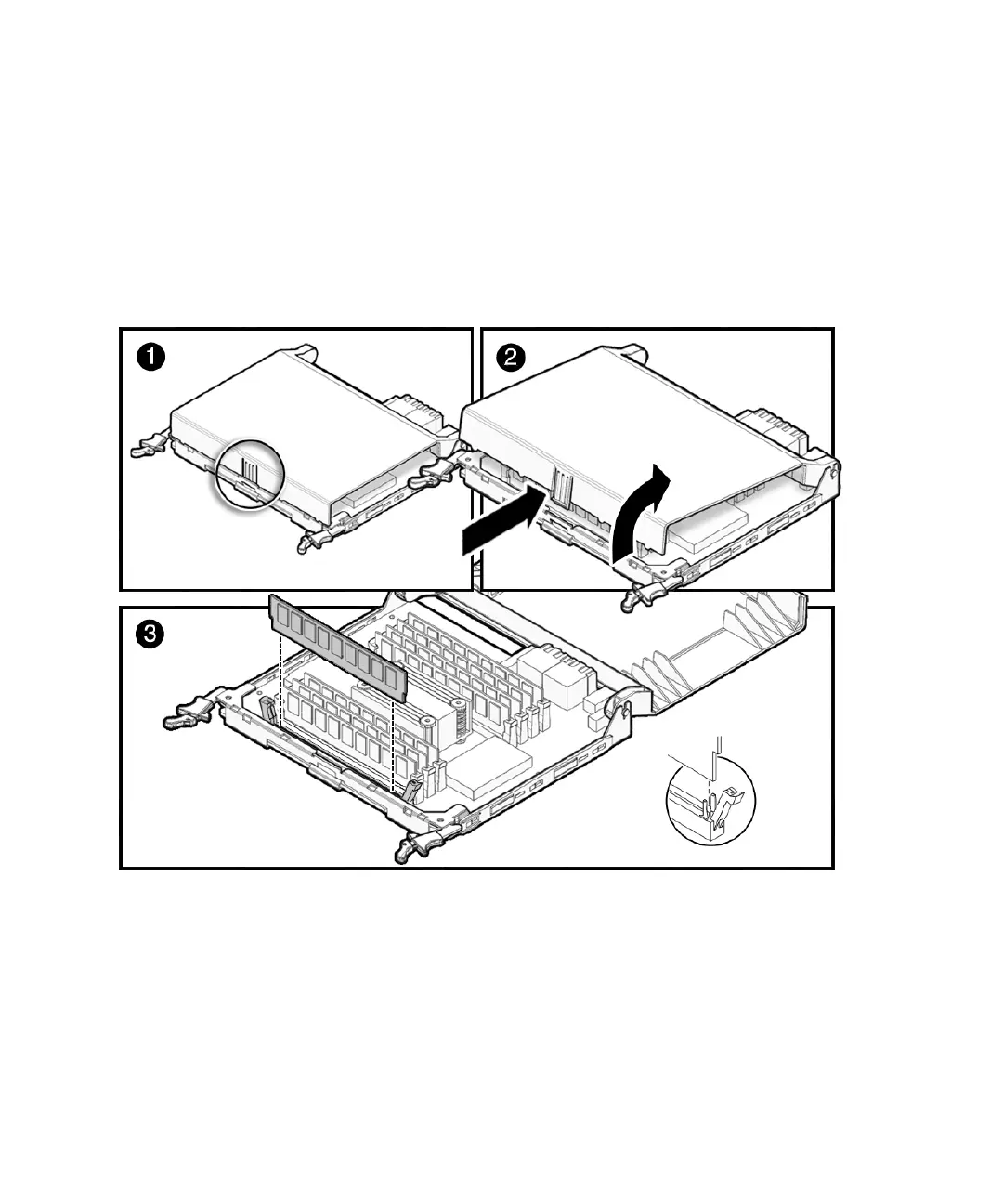

FIGURE 11-6 DIMM Removal
