Chapter 9 XSCF Unit Replacement 9-3

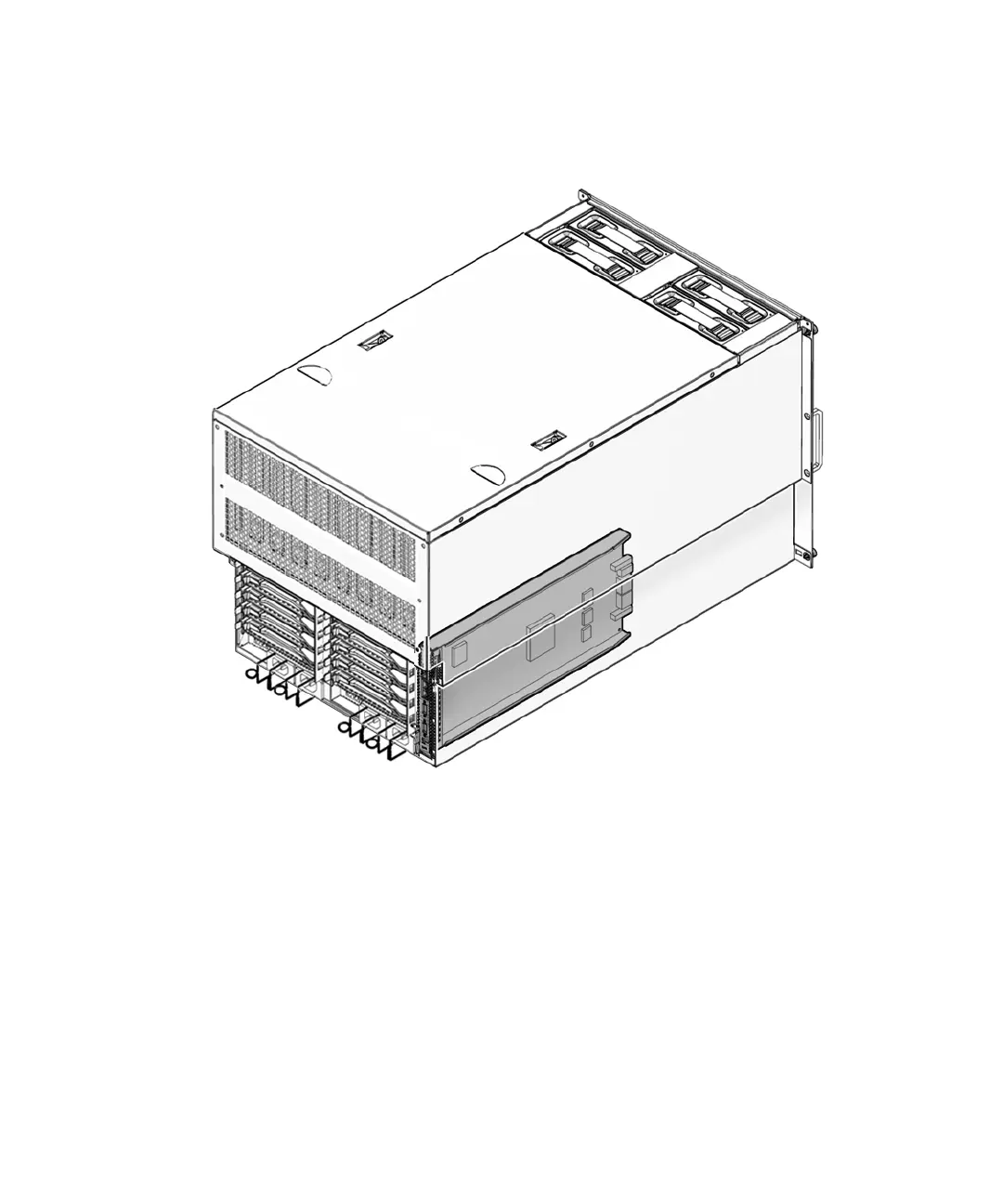

FIGURE 9-2 shows the XSCF unit location on the M5000 server.
FIGURE 9-2 M5000 Server XSCF Unit Location (Rear)
9.1.1 Accessing the XSCF Unit
1. Power off the server.
This step includes turning the key switch to the Service position, confirming that
the POWER LED is off, and disconnecting power cables. See Section 4.4.1,
“Powering the Server Off Using Software” on page 4-12.
2. Label and remove the Ethernet and UPC cables connecting to the XSCFU.
