Fujitsu SPARC Enterprise M5000 User Manual

Chapter 10 Fan Modules Replacement 10-11
10.1.10 Removing the 60-mm Fan Backplane
1. Observe how the cable bundle routes beneath the left front edge of the 60-mm
fan backplane. This routing must be duplicated when the backplane unit is
reinstalled.
2. Remove the three (3) cable connectors on the forward edge of the 60-mm fan
backplane (
FIGURE 10-5 #1).
3. Loosen the two (2) green captive screws (
FIGURE 10-5 #2).
4. Remove the 60-mm fan backplane from the server and place it on the ESD mat
(
FIGURE 10-5 #3 and #4) .

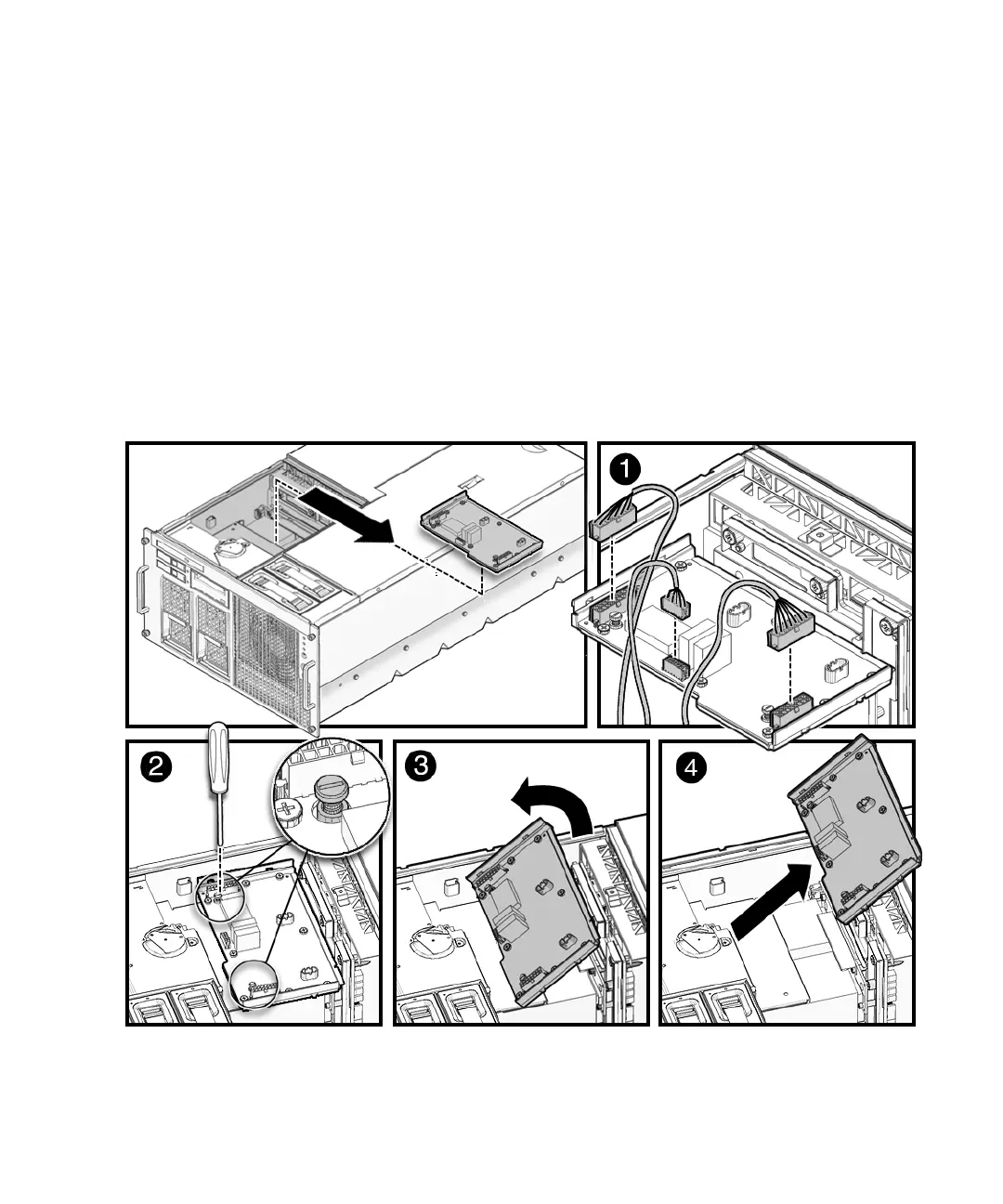

FIGURE 10-5 Removing the 60-mm Fan Backplane
