Chapter 13
Motherboard Unit Replacement
13-5
13.1.2
Removing
the
M4000
Server
Motherboar
d
Unit
1.
Push
the
server
back
into
the
rack.
2.
Loosen
the
two
captive
screws
that
secure
the
motherboard
unit
handle
in
place.
3.
Pull
the
motherboard
unit
handle
down
(

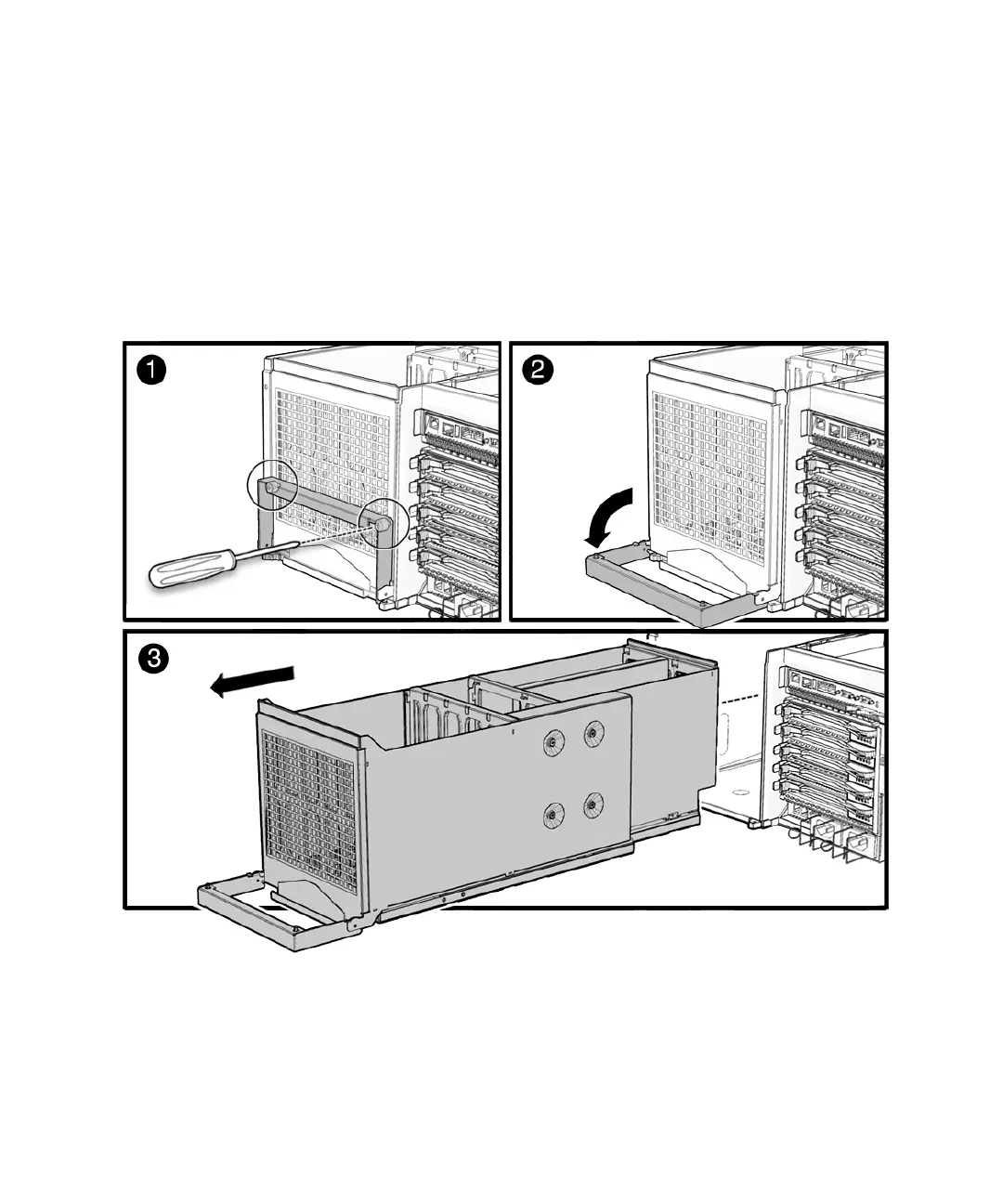

FIGURE
13-3
).
FIGURE
13-3
Removing
the
M4000
Server
Motherboard
Unit
216
