F-8 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010
F.2.1 Removing the Air Filter From the M4000 Server
This section covers how to remove the air filter for servicing power supplies or
servicing the air filter.
1. Grasp the top edge corners of the air filter and slowly pull the air filter away
and down from the front of the server (
FIGURE F-6).

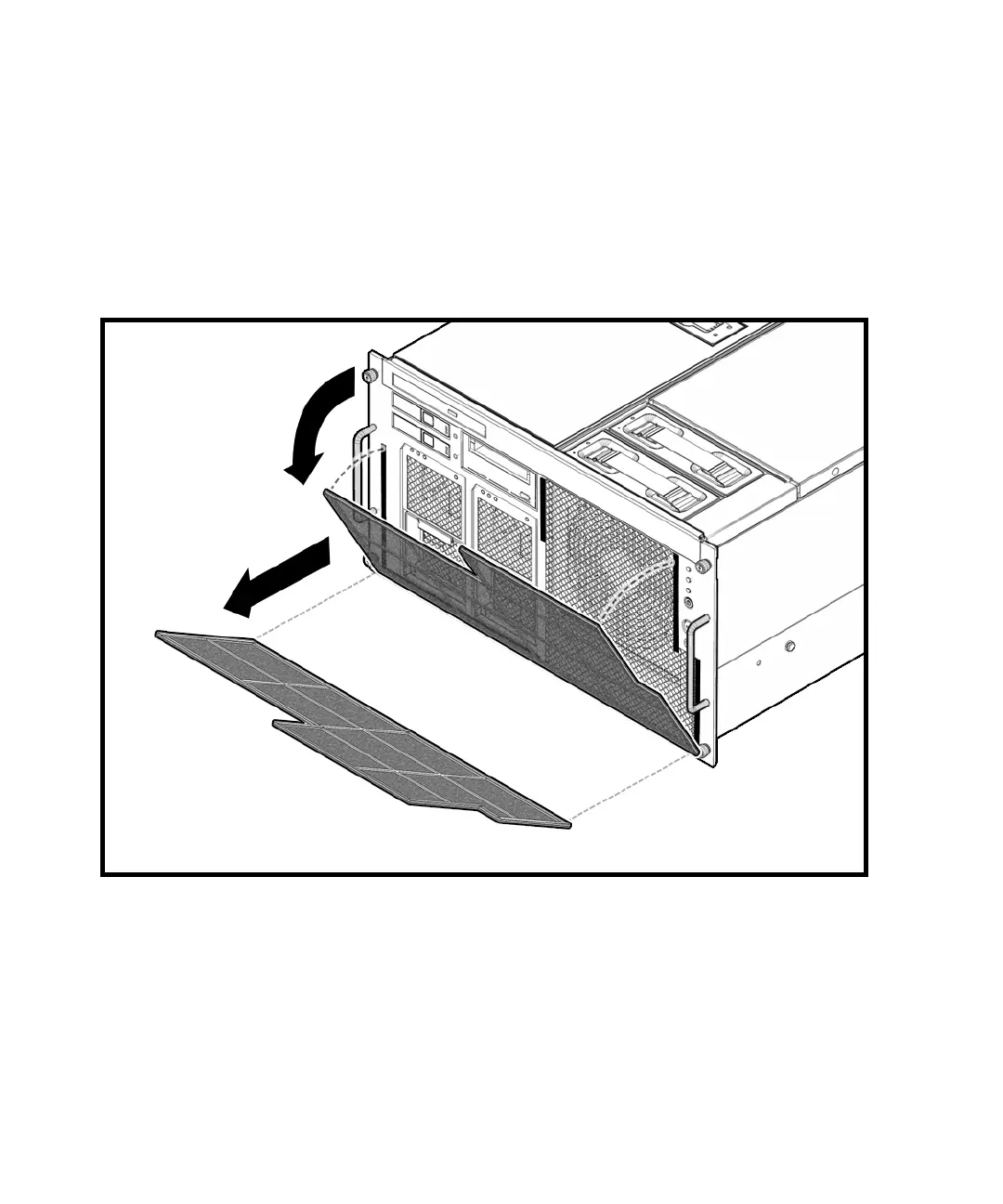

FIGURE F-6 Removing the M4000 Server Air Filter
.
