8.1 PCI Cassette Replacement
PCI cassettes are hot, active, or cold replacement components.

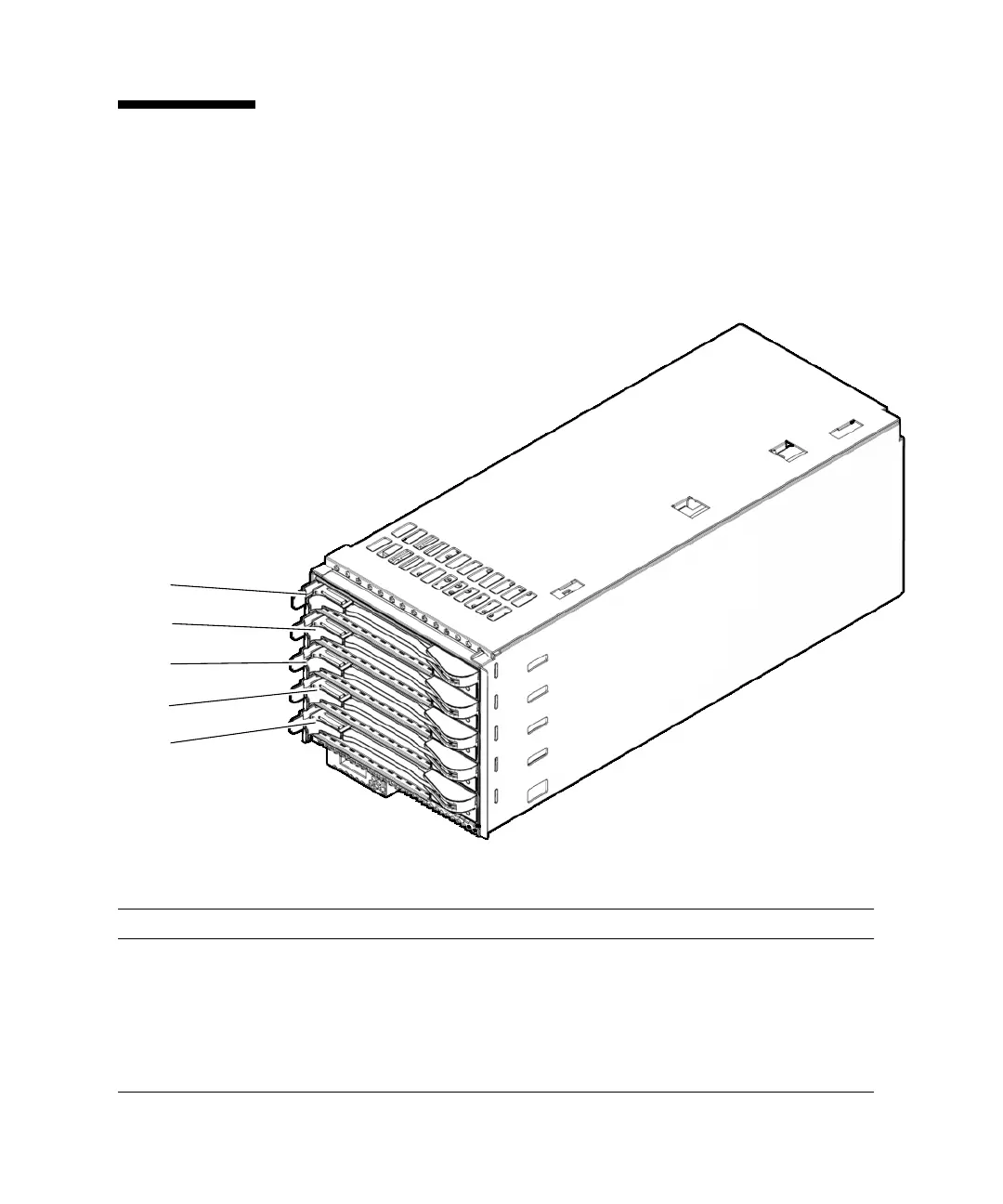

FIGURE 8-3 shows the PCI cassette slot locations.
FIGURE 8-3 PCI Cassette Slot Locations
Location Number Component
1 PCI cassette #1 (PCIe)
2 PCI cassette #2 (PCIe)
3 PCI cassette #3 (PCIe)
4 PCI cassette #4 (PCIe)
5 PCI cassette #0 (PCI-X)
4
3
2
1
5
