Chapter 10 Fan Modules Replacement 10-5
10.1.2 Removing the 60-mm Fan Module
1. Place a No. 1 screwdriver into the fan release hole and pull upwards on the
handle to unseat the fan (
FIGURE 10-3).
The screwdriver must be pushed down until it stops to release the fan lock.
2. Remove the 60-mm fan module from the server and place the fan on an ESD
mat.

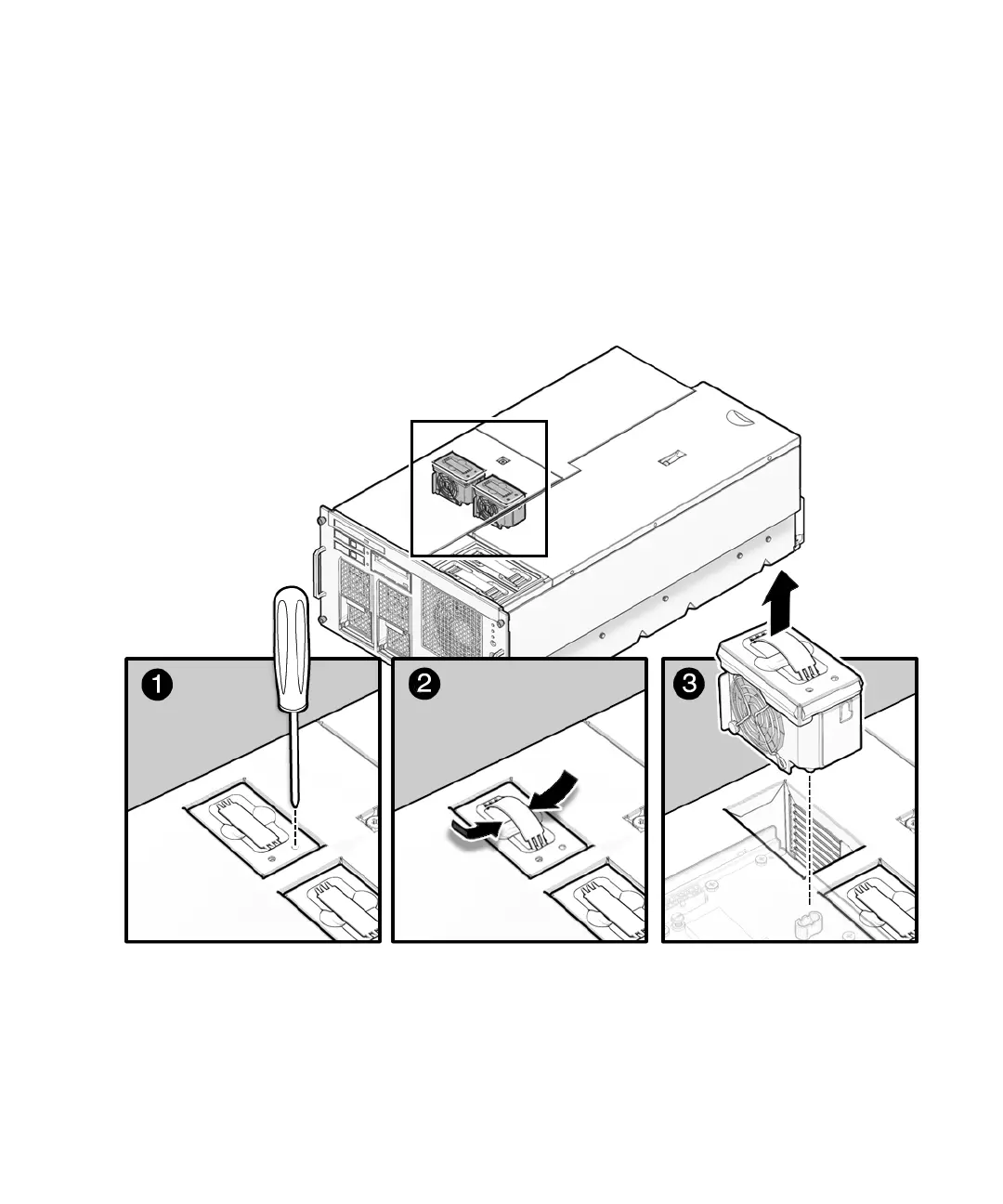

FIGURE 10-3 60-mm Fan Module Removal
