8-8 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010

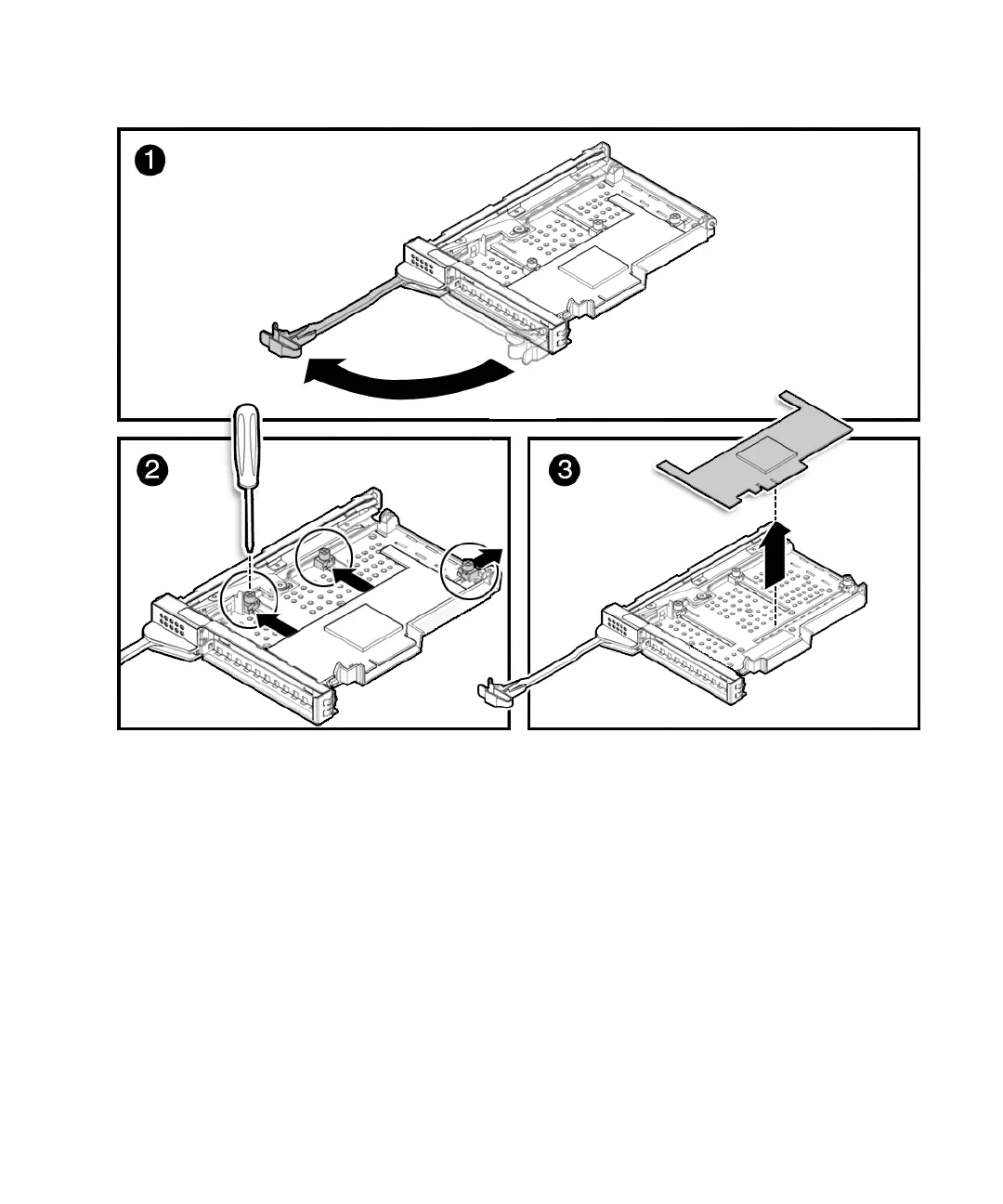

FIGURE 8-5 PCI Card Mounted in PCI Cassette
8.2.2 Installing the PCI Card
1. Loosen the three (3) captive screws on the adjustable stops with a screwdriver
and move the adjustable stops to make space for the PCI card.
2. Open the cassette lever until horizontal and push the plastic cassette body
towards the metal base to make room for the PCI card.
3. Place the PCI card into the cassette.
4. Slide the adjustable stops into position against the PCI card to hold it in place
and secure them with a screwdriver.
