5-10 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010

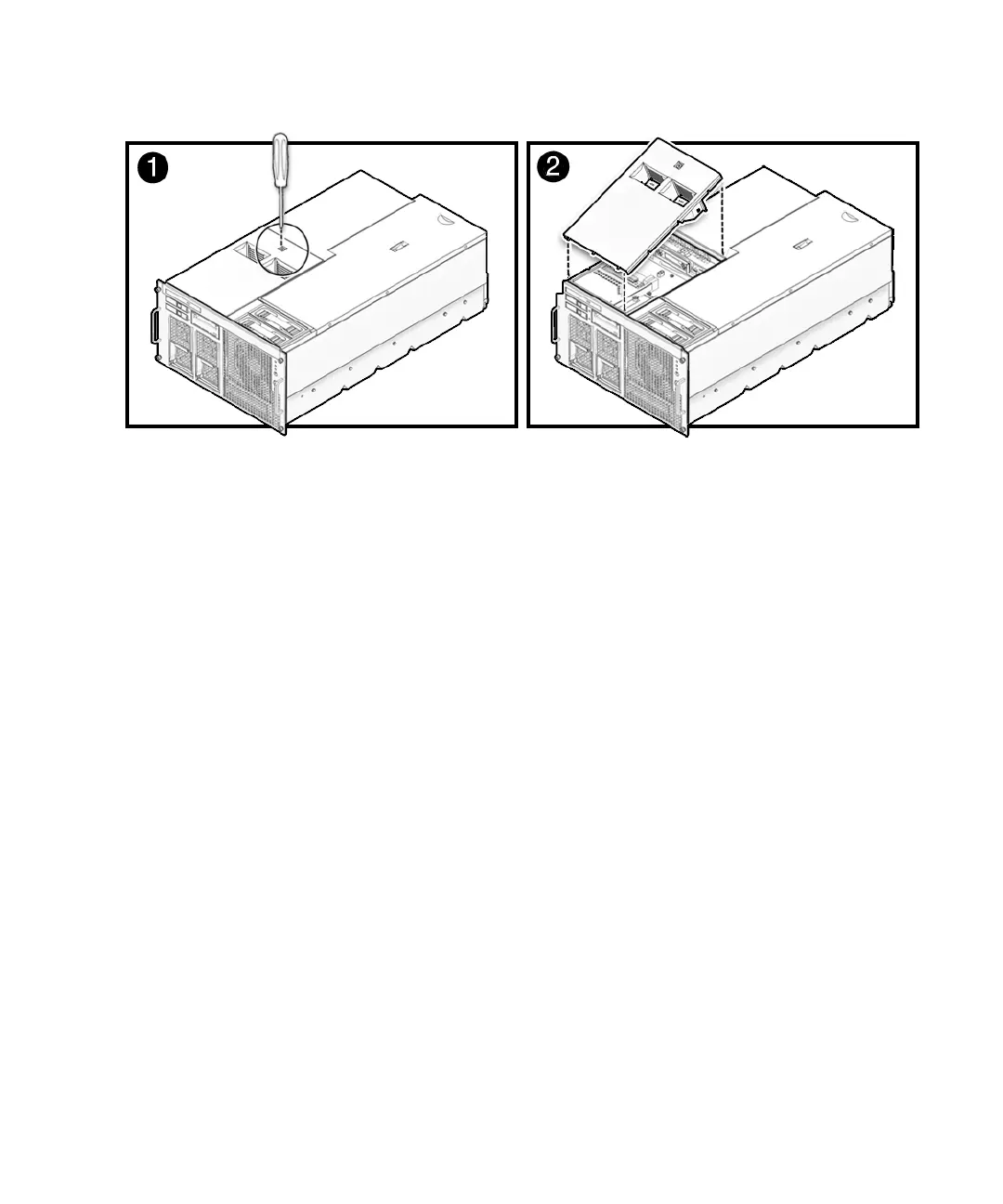

FIGURE 5-5 Removing the Fan Cover
5.3.2 Replacing the Fan Cover
1. Align the tabs on the forward section of the fan cover and push the cover down
to secure it in place.
2. Tighten the captive screw on the fan cover.
3. Install the 60-mm fan units.
See Section 10.1.3, “Installing the 60-mm Fan Module” on page 10-6.
4. Push the green plastic releases on each slide rail and push the system back into
the equipment rack.
5. Tighten the four (4) captive screws at the front of the system to secure it in the
rack (
FIGURE 5-2).
6. Tighten the four (4) captive screws on the shipping brackets at the rear of the
server (
FIGURE 5-1).
7. Reconnect the service loop cables to the rear of the server.
8. Restore the rack antitilt features to their original position.
