8-6 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010
3. Remove the PCI cassette from the slot and place it on the ESD mat.
Note – When the PCI cassette is removed with the cfgadm command, the PCI
cassette is isolated from the Oracle Solaris OS and the power to the PCI card is
automatically turned off.

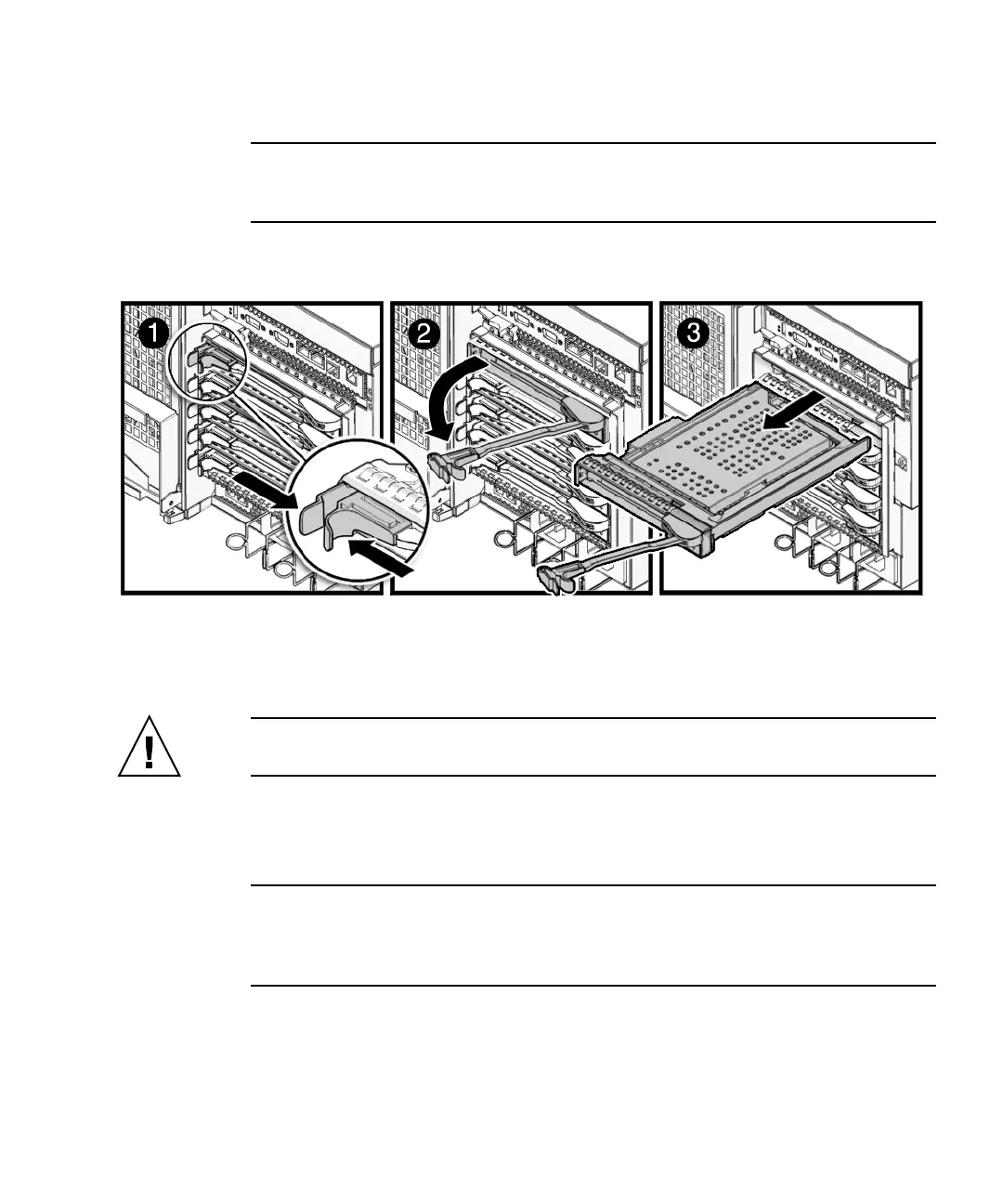

FIGURE 8-4 Removing the PCI Cassette
8.1.3 Installing the PCI Cassette
Caution – Do not force the PCI cassette into a slot. Doing so can cause damage to the
cassette and server.
1. Align the PCI cassette on the gray plastic guide and install it into the slot.
2. Lock the lever into place to seat the cassette.
Note – As the lever is moved pressure will build up, then just prior to locking into
place the pressure will suddenly release. If the lever locks in place without the
pressure release, the card may not be seated correctly. If this happens the card should
be removed and reinstalled.
