Chapter 12 CPU Module Replacement 12-5
12.1.2 Removing the CPU Module
1. Unlock the levers and raise both levers simultaneously to unseat the CPU
module (
FIGURE 12-3).
Caution – The bottom of the board tends to swing when it is removed.
2. Remove the CPU module or filler panel from the server and place it on the ESD
mat.

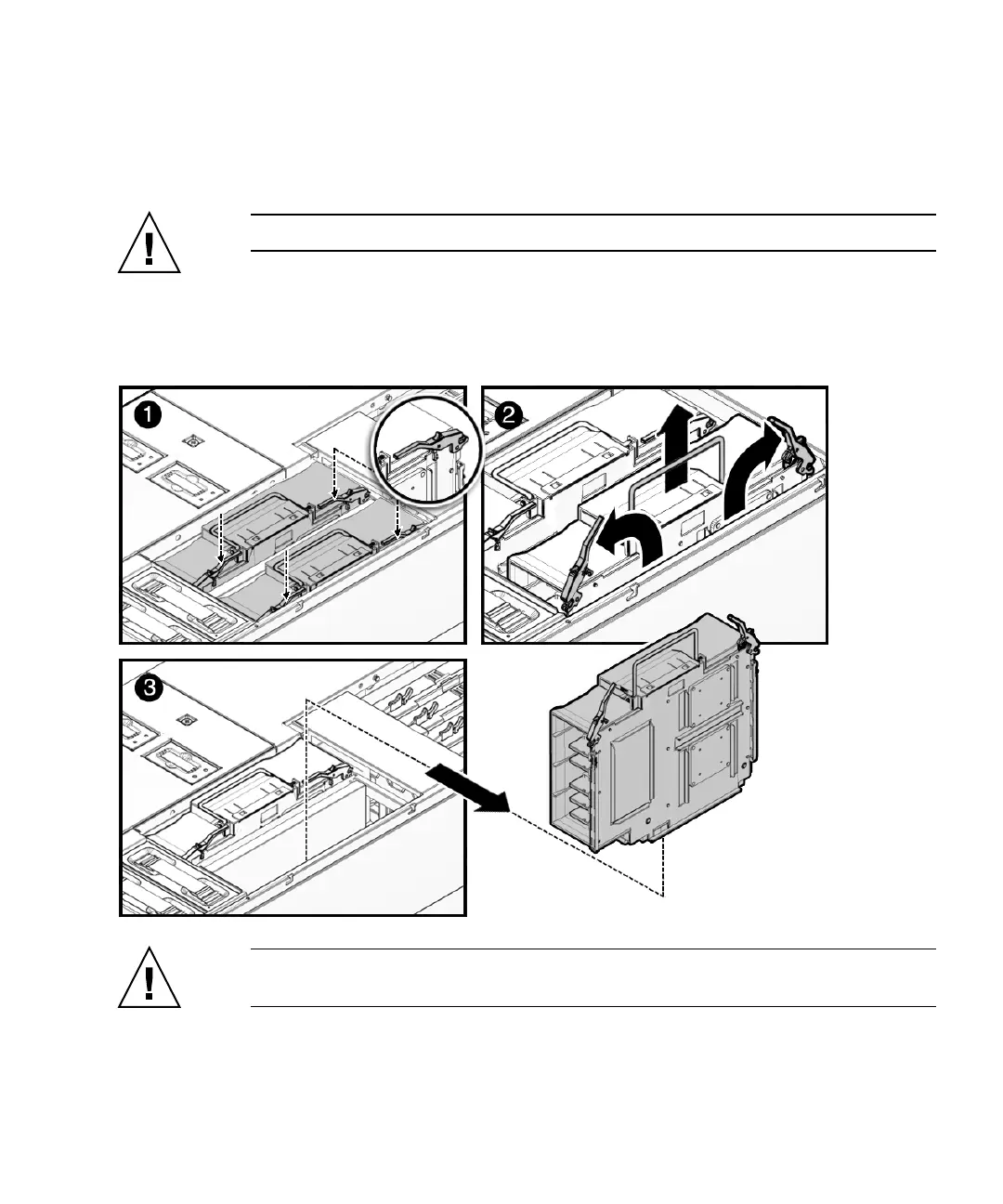

FIGURE 12-3 CPU Module Removal
Caution – Do not stack CPU modules on top of one another or on top of other
components.
