9.1.2 Removing the XSCF Unit
Caution – Use proper ESD grounding techniques when handling components. See
Section 1.1, “Safety Precautions” on page 1-1.
1. Pinch the handle and then pull the lever on the XSCF unit downward to unseat
the board (
FIGURE 9-3).
2. Remove the board from the slot and place it on the ESD mat.

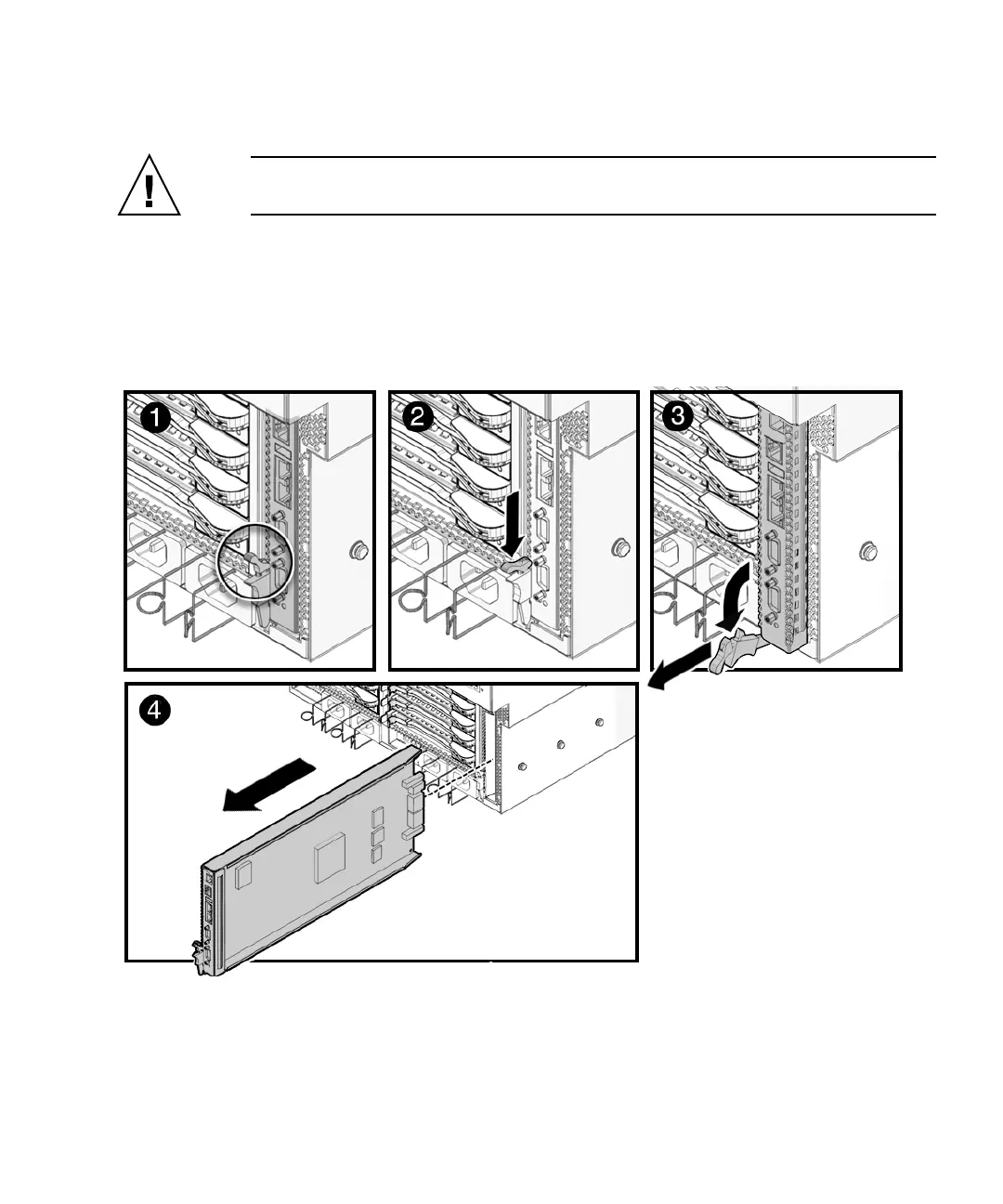

FIGURE 9-3 XSCF Unit Removal
