10.1.6 Removing the 172-mm Fan Module
1. Place a No. 1 screwdriver into the fan module release hole and pull upwards on
the handle to unseat the fan (
FIGURE 10-4).
The screwdriver must be pushed down until it stops to release the fan lock.
2. Remove the fan module from the server and place it on an ESD mat.

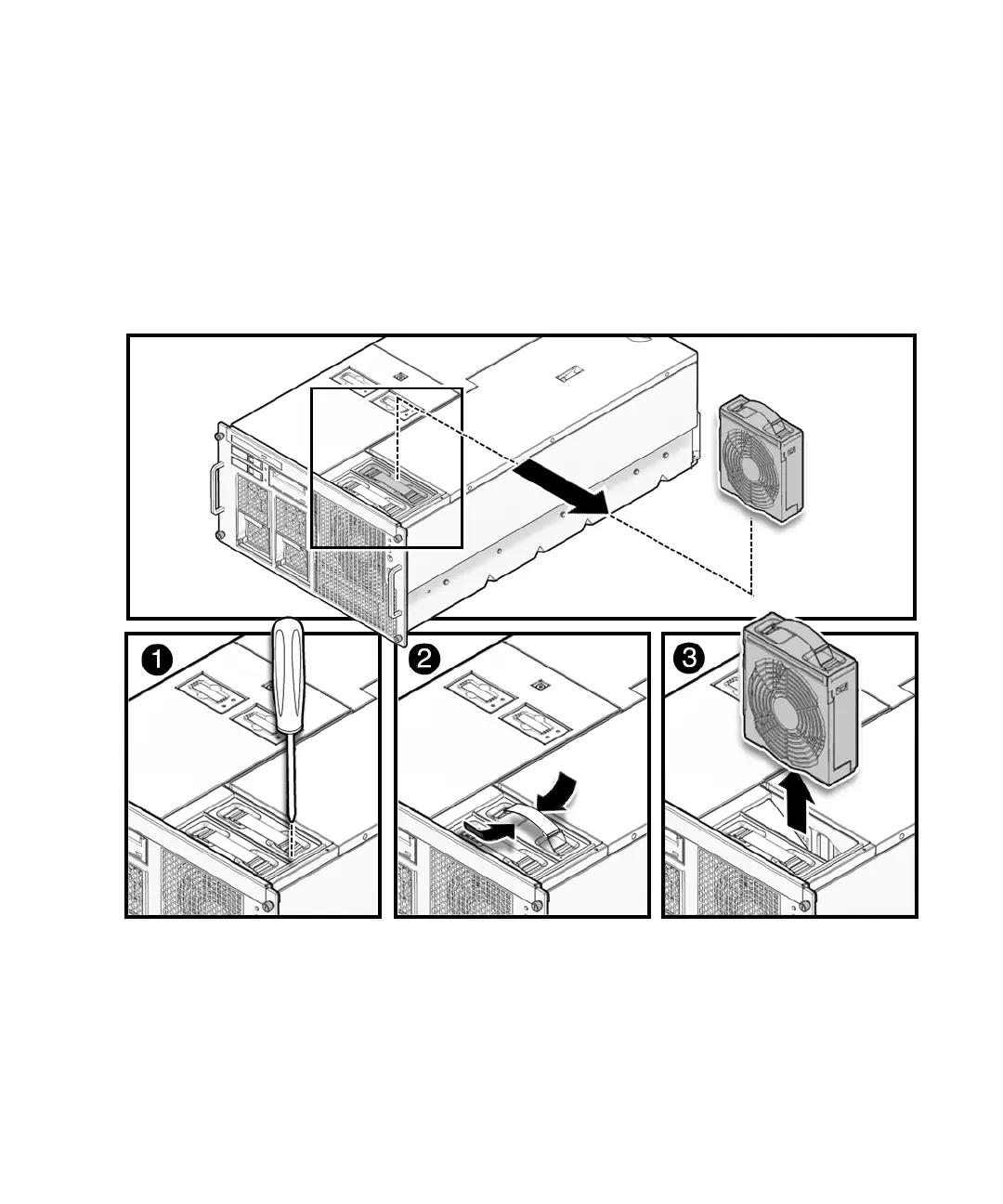

FIGURE 10-4 172-mm Fan Module Removal
