Fujitsu SPARC Enterprise M5000

Chapter 11 Memory Board Replacement 11-3

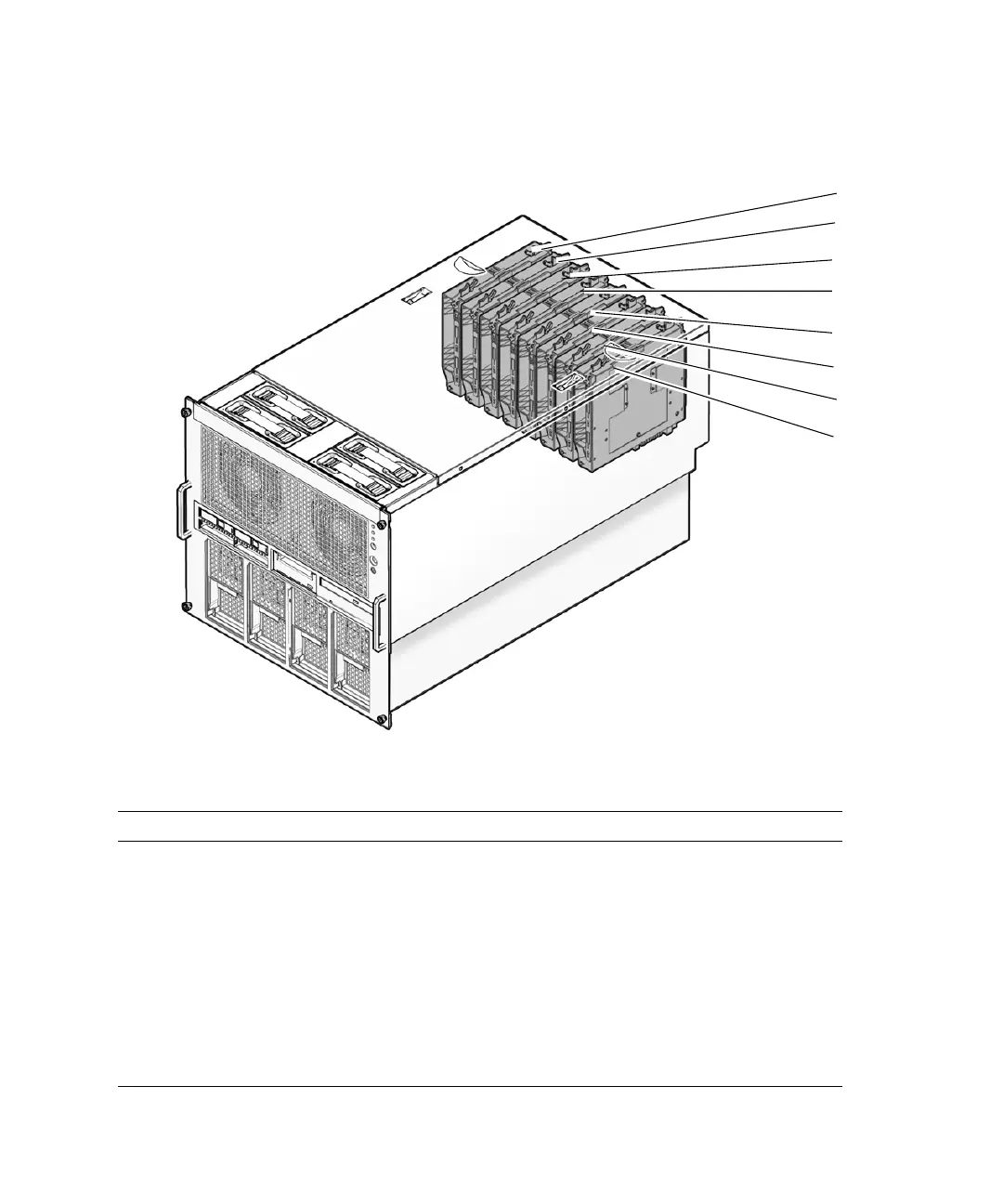

FIGURE 11-2 shows the memory board location on the M5000 server.
FIGURE 11-2 M5000 Server Memory Board Locations
Location Number Component
1 Memory board (MEMB#0)
2 Memory board (MEMB#1)
3 Memory board (MEMB#2)
4 Memory board (MEMB#3)
5 Memory board (MEMB#4)
6 Memory board (MEMB#5)
7 Memory board (MEMB#6)
8 Memory board (MEMB#7)
8
1
2
3
4
5
6
7
