Chapter 8 I/O Unit Replacement 8-9

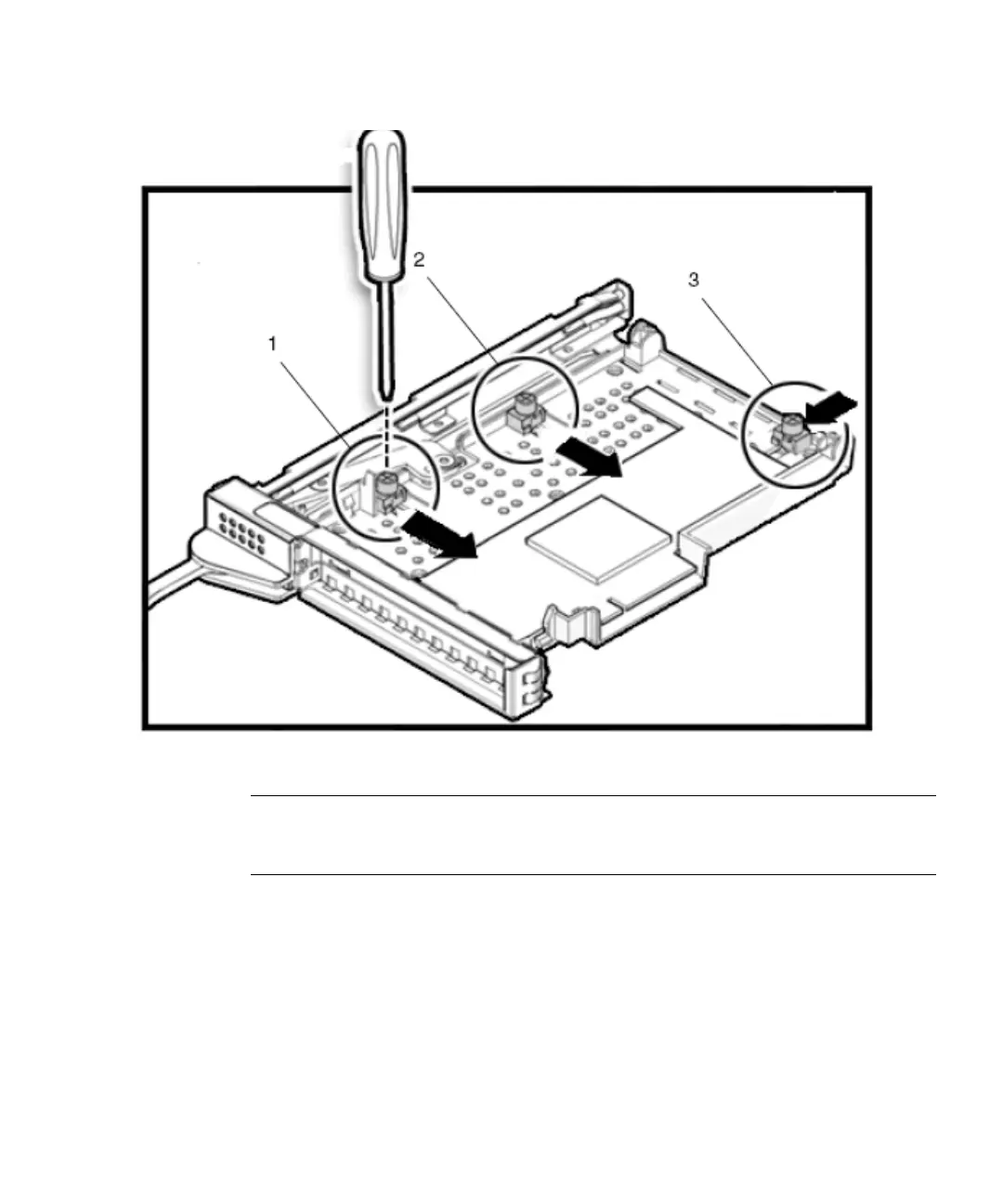

FIGURE 8-6 Sequence of Adjusting the PCI Card in Position
Note – The adjustable stops should be snug against the card and securely tightened
to ensure the card seats correctly. Also, fix the PCI card in position by following the
1-2-3 sequence in FIGURE 8-6.
5. Install the PCI cassette containing the PCI card into the server.
See Section 8.1.3, “Installing the PCI Cassette” on page 8-6.
