8-20 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010

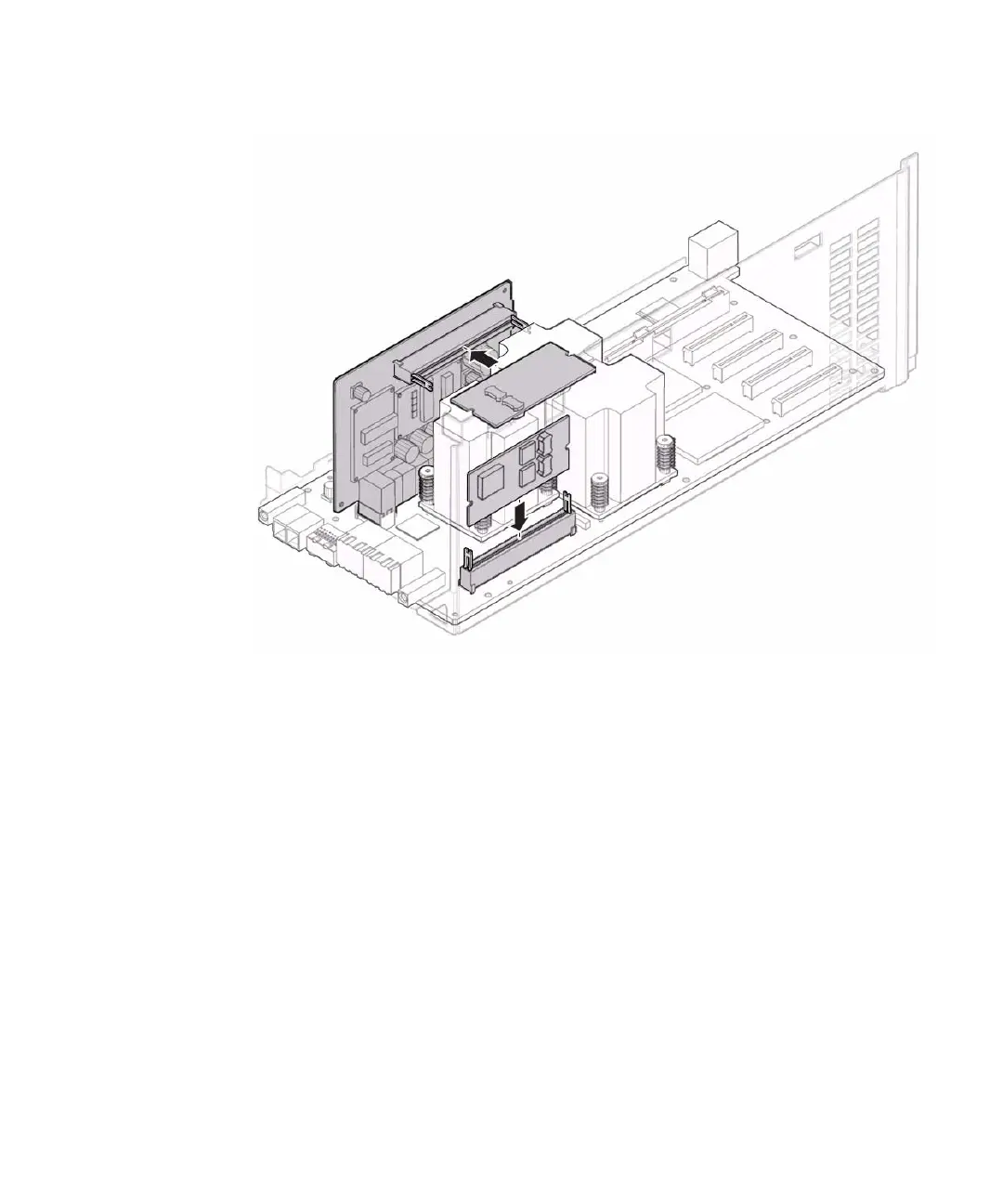

FIGURE 8-13 Installing the DC-DC Converter (With a DC-DC Converter Retainer)
4. Place the metal bracket into position and tighten the three screws that hold the
metal bracket in place.
Reconnect the small cable before tightening the screws to the bracket.
5. Install the I/O unit cover.
6. Tighten the two screws at the front of the I/O unit using a No. 2 screwdriver.
.
