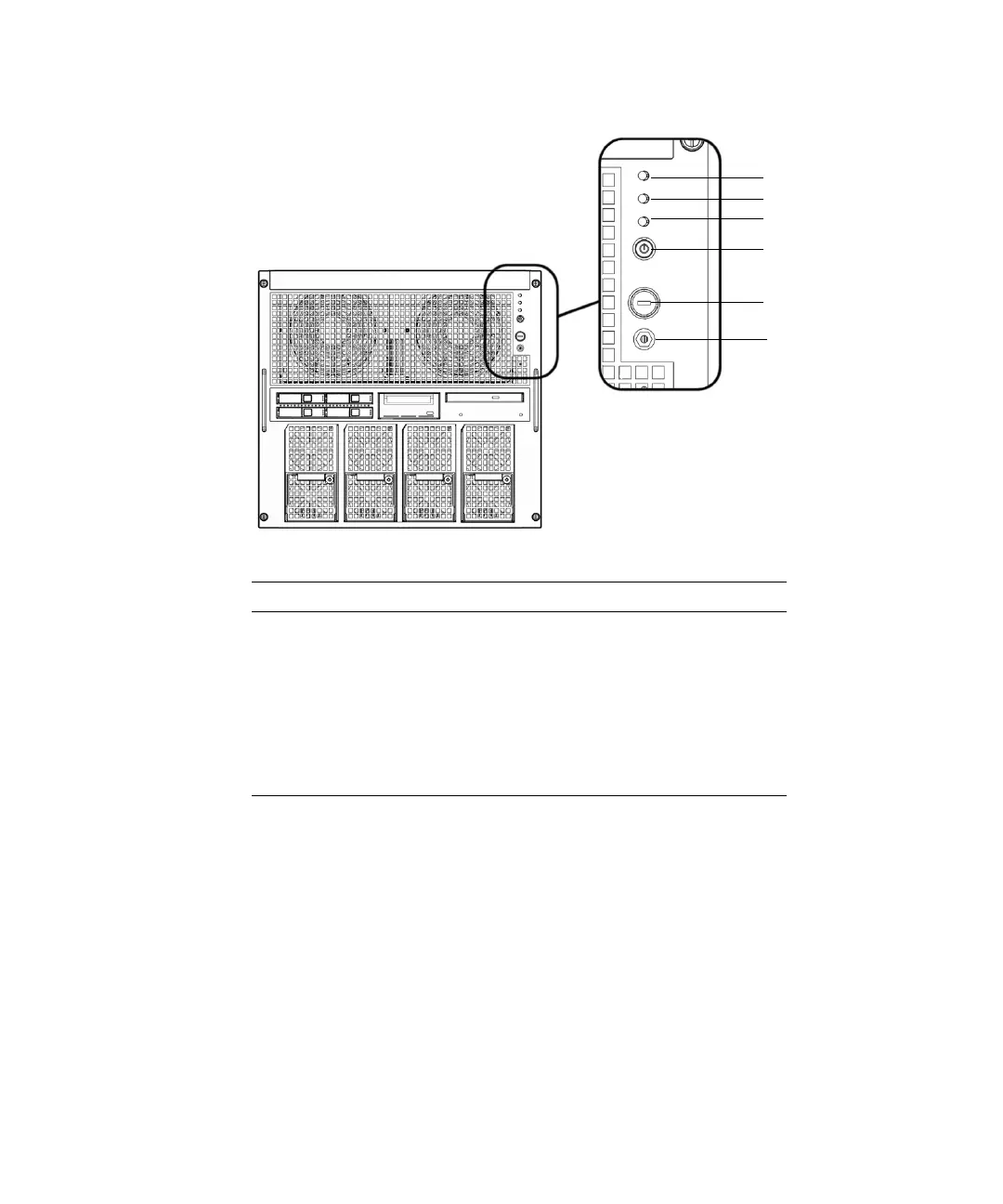

FIGURE 2-4 M5000 Server Operator Panel
Additional LEDs are located in various locations in the server. For more information
about LED indicator locations, see Section 2.5, “LED Functions” on page 2-18.
Location Number Component
1 POWER LED
2 XSCF STANDBY LED
3 CHECK LED
4 Power switch
5 Mode switch (keyswitch)
6 Antistatic ground socket
1
2
3
4
5
6
