5-6 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010
6. Loosen the captive screw(s) on the center top of the server.
The SPARC Enterprise M4000 server has one (1) captive screw (
FIGURE 5-1). The
SPARC Enterprise M5000 server has two (2) captive screws (
FIGURE 5-4).
7. Slide the top cover towards the rear and then remove it.

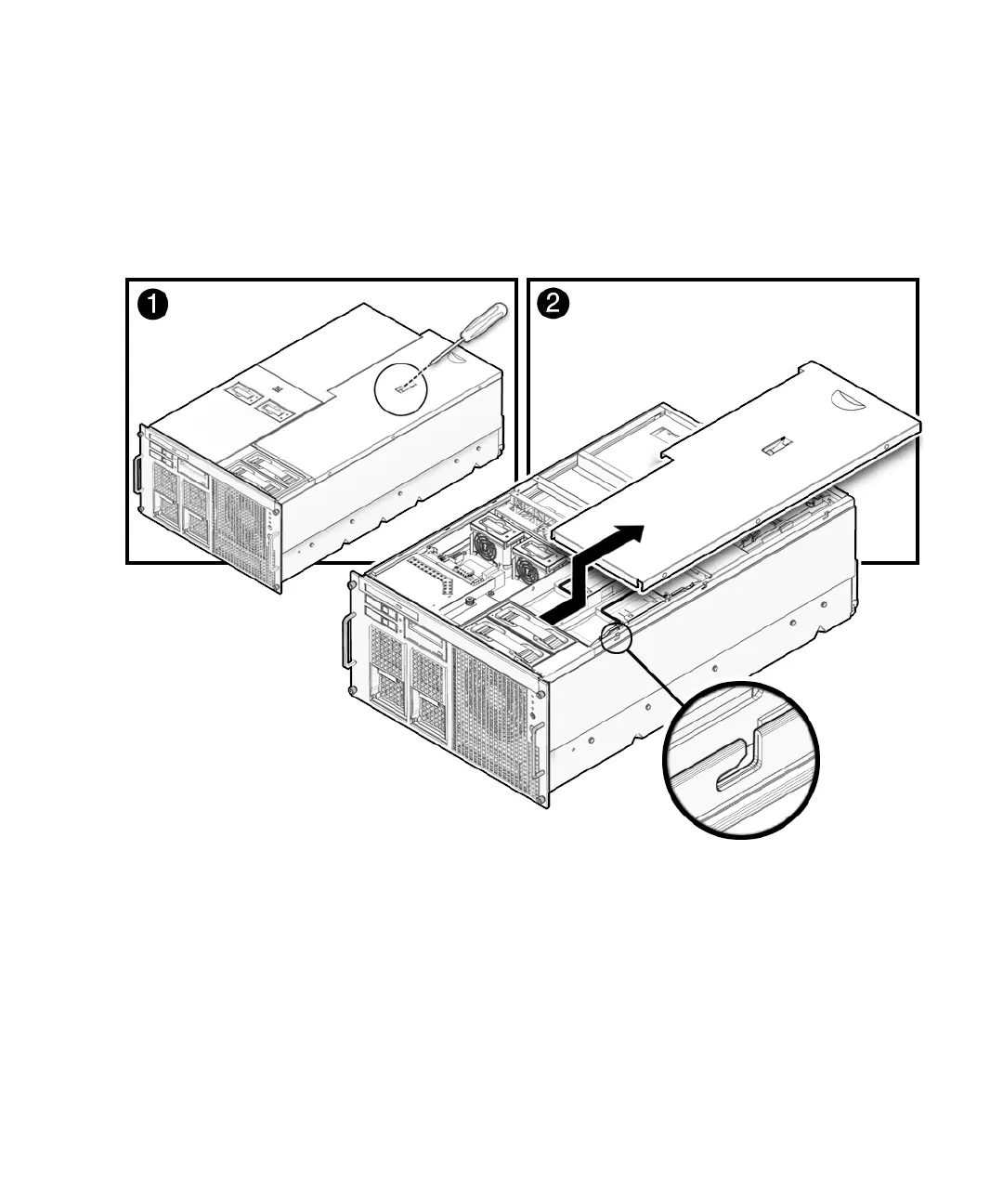

FIGURE 5-3 Removing the M4000 Server Top Cover
