TeamPoS 2000 with TeamUSB Board Connector Layout with M Motherboard

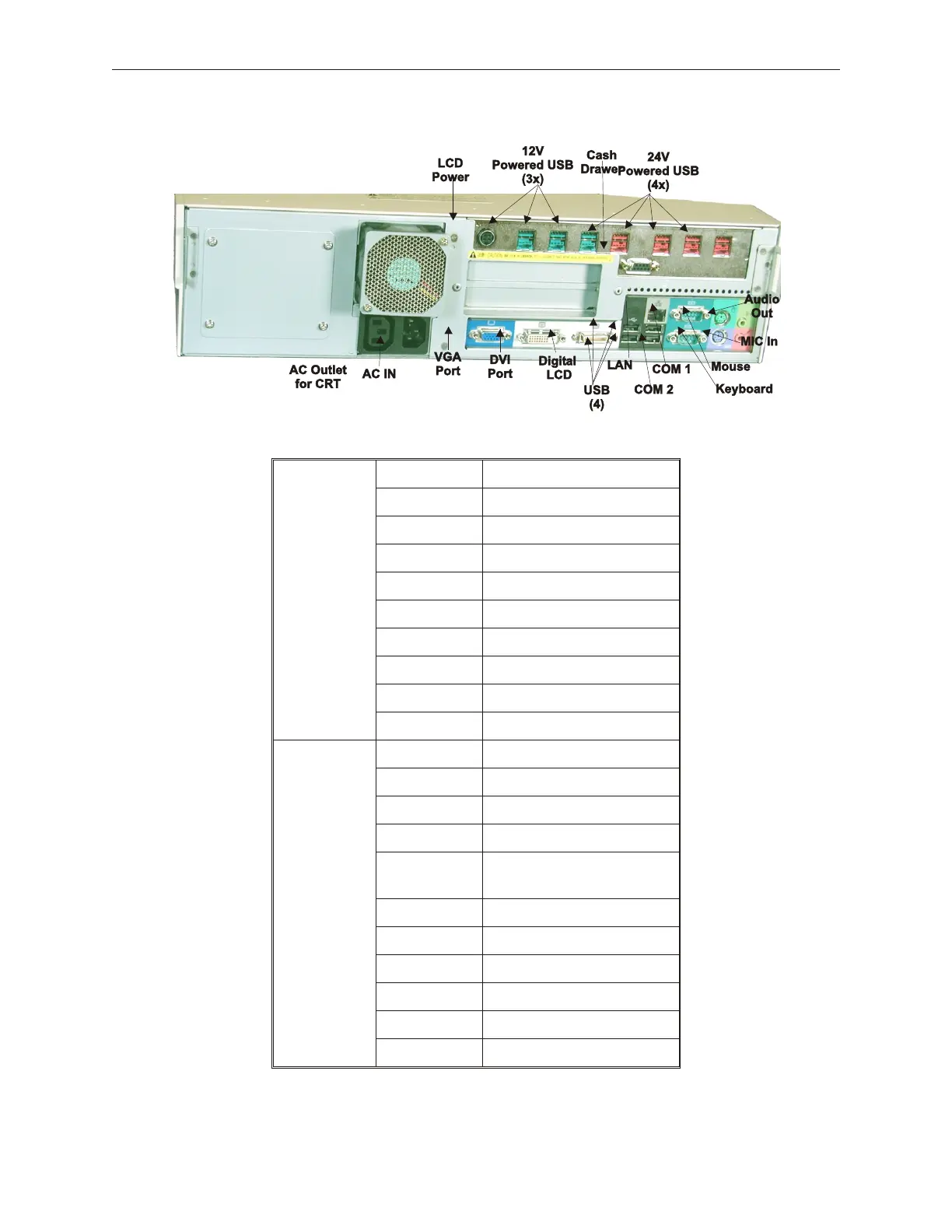

5.12.4 TeamPoS 2000 M with TeamUSB Board Connector Layout
with M Motherboard
Name Defnition
USB1 USB, 24VDC
USB2 USB, 24VDC
USB3 USB, 24VDC
PoS USB4 USB, 24VDC
Ports USB5 USB, 12VDC
USB6 USB, 12VDC
USB7 USB, 12VDC
LCD PWR LCD Power
DRW Cash Drawer
KB Keyboard
M Mouse
COM1 Communications Port #1
COM2 Communications Port #2
PC Board LPT Optional --uses add-in card
expansion slot opening
Ports VGA Analog Video
LCD Digital LCD Video
USB Universal Serial BUS (4)
MIC Microphone/Audio In
SPEAKER Speaker/Audio Out
LAN Local Area Network
5-80 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
