5.3 Accessing and Configuring
(PIN # 90000161)
5.3.1 Retail I/O Board Pin layout
To access jumpers:
1. Remove front cover (see section 5.1.1).
2. Remove side cover (left) (see section 5.1.2).

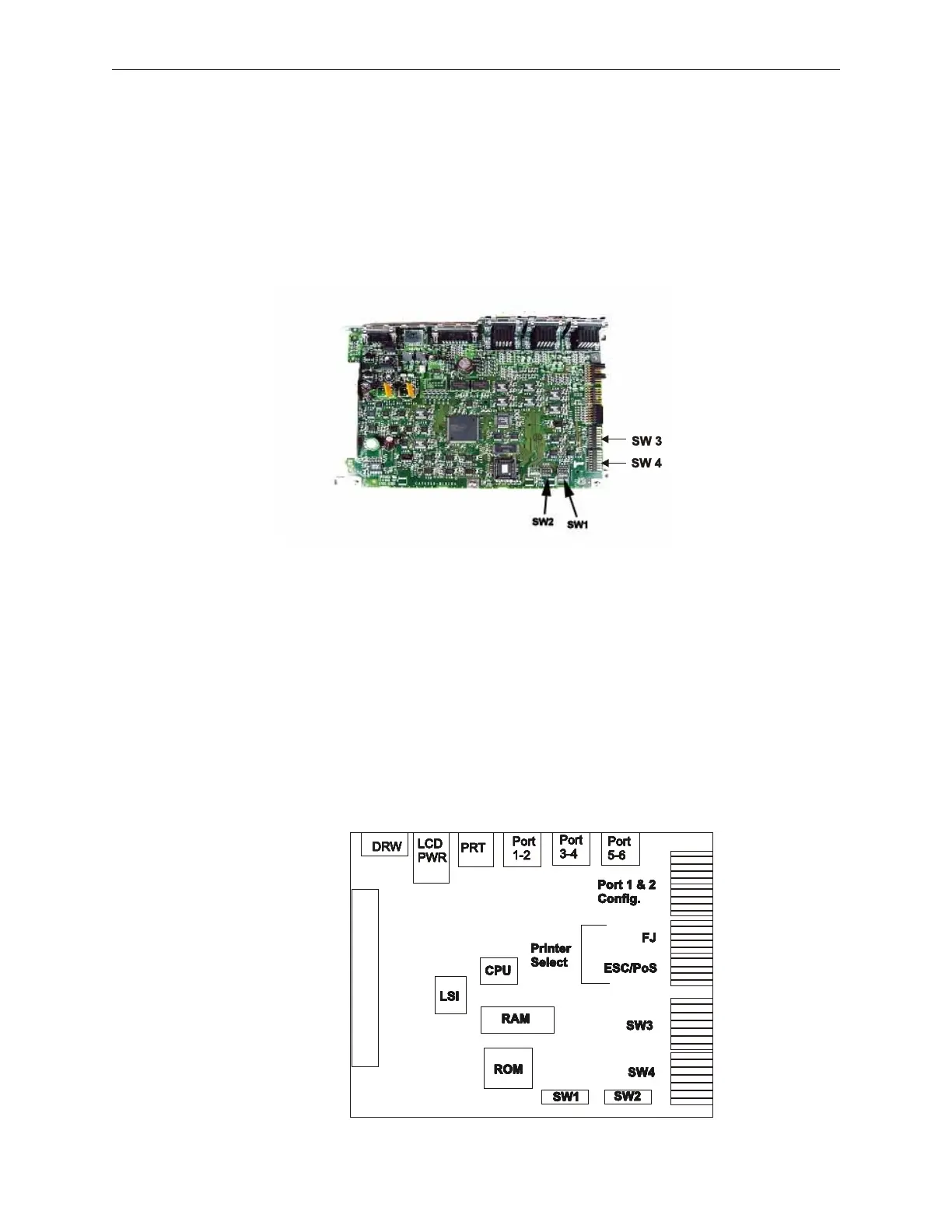

Retail I/O Board Layout
5-12 Rev 3.0 90000291
