5.3.2 Retail I/O Board Settings
Switch Definition Settings (Default in Bold)

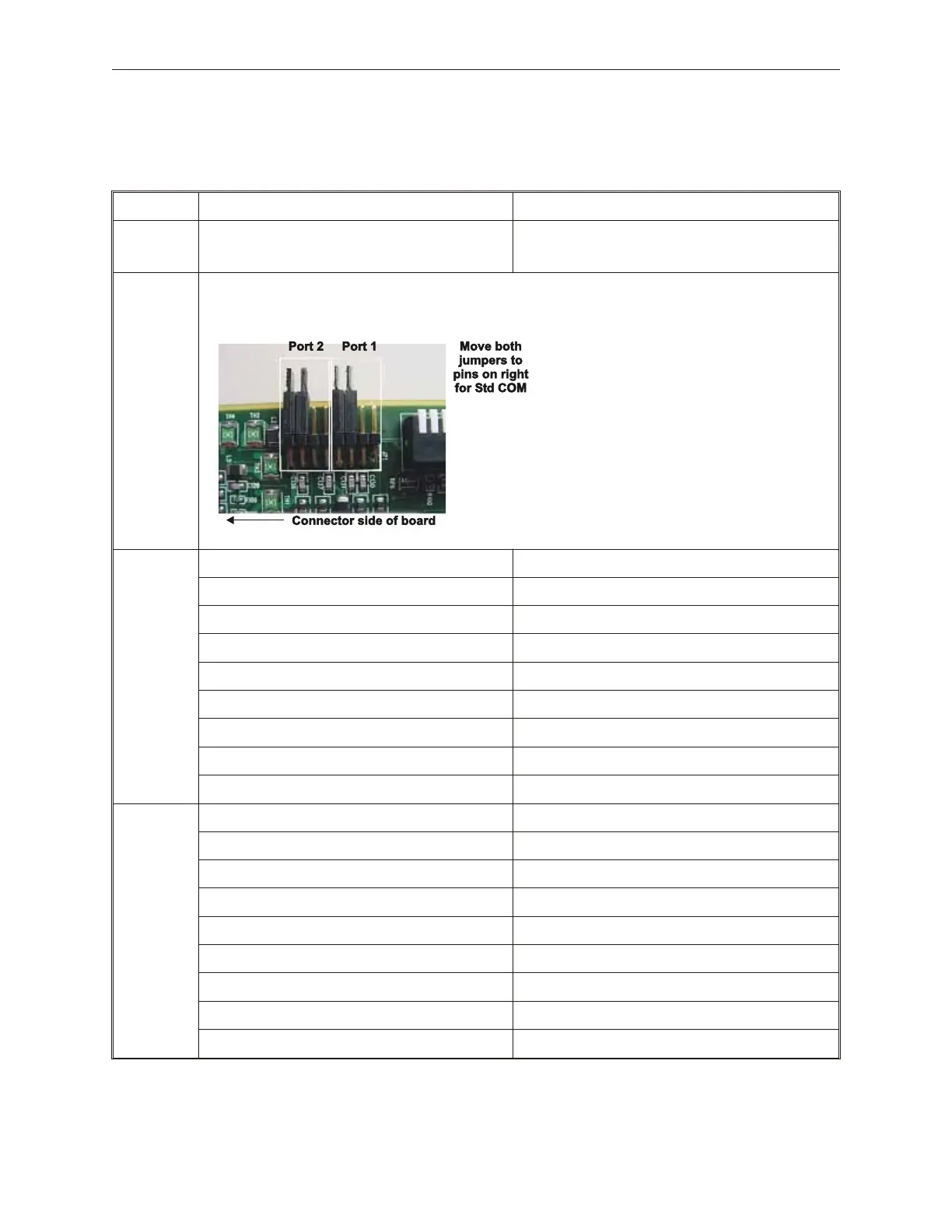

Port 1/2 DC Powered or Standard COM-I/F for Port 1/2
PORT 1 STD COM DC Powered
PORT 2 STD COM DC Powered
* Two jumpers required for each setting.
SW3
1 UART Base Address in MCP Mode
ON 0230H OFF 0100H
2 OPC/MPC Parallel Port Address
ON 0278H OFF 0378H
3 MODE Operation Mode
ON OPC OFF MCP
4 MODE Operation Mode
ON COM3/4 OFF Multi-Com
5 BATL Detect Lead Acid Battery Alarm
ON Enable OFF Disable
6 FAN1 Detect CPU FAN Alarm
ON Enable OFF Disable
7 FAN2 Detect PSU FAN Alarm
ON Enable OFF Disable
8 FAN3 Detect Chassis FAN Alarm
ON Enable OFF Disable
SW4
1 Factory use only. Must be off
ON Enable OFF Disable
2 Factory use only. Must be off
ON Enable OFF Disable
3
IRQ12 S ON Enable OFF Disable
4
IRQ11 E O O ON Enable OFF Disable
5
IRQ10 L N N ON Enable OFF Disable
6
IRQ9 E L E ON Enable OFF Disable
7
IRQ7 C Y ON Enable OFF Disable
8
IRQ5 T ON Enable OFF Disable
