7.3.3 A Motherboard Layout

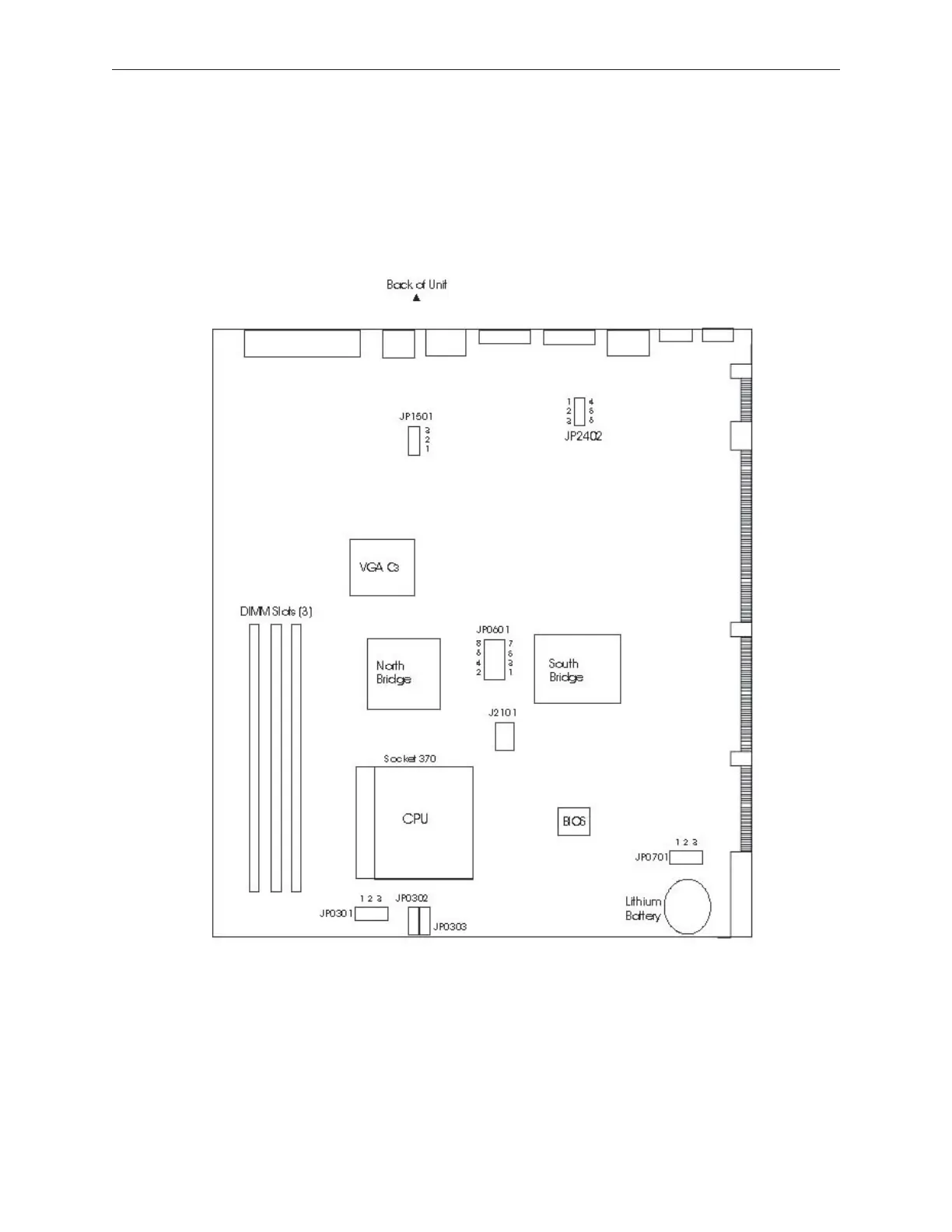

The following figure shows jumper positions. Explanations are provided on the following
pages. When setting and exchanging the main board, be sure settings are as follows
(default settings), before operation.
90000291 Rev 3.0 7-9
TeamPoS 2000 MAINTENANCE MANUAL
