5.4 Installing the TeamCOMBO Board
(PIN #90000273)

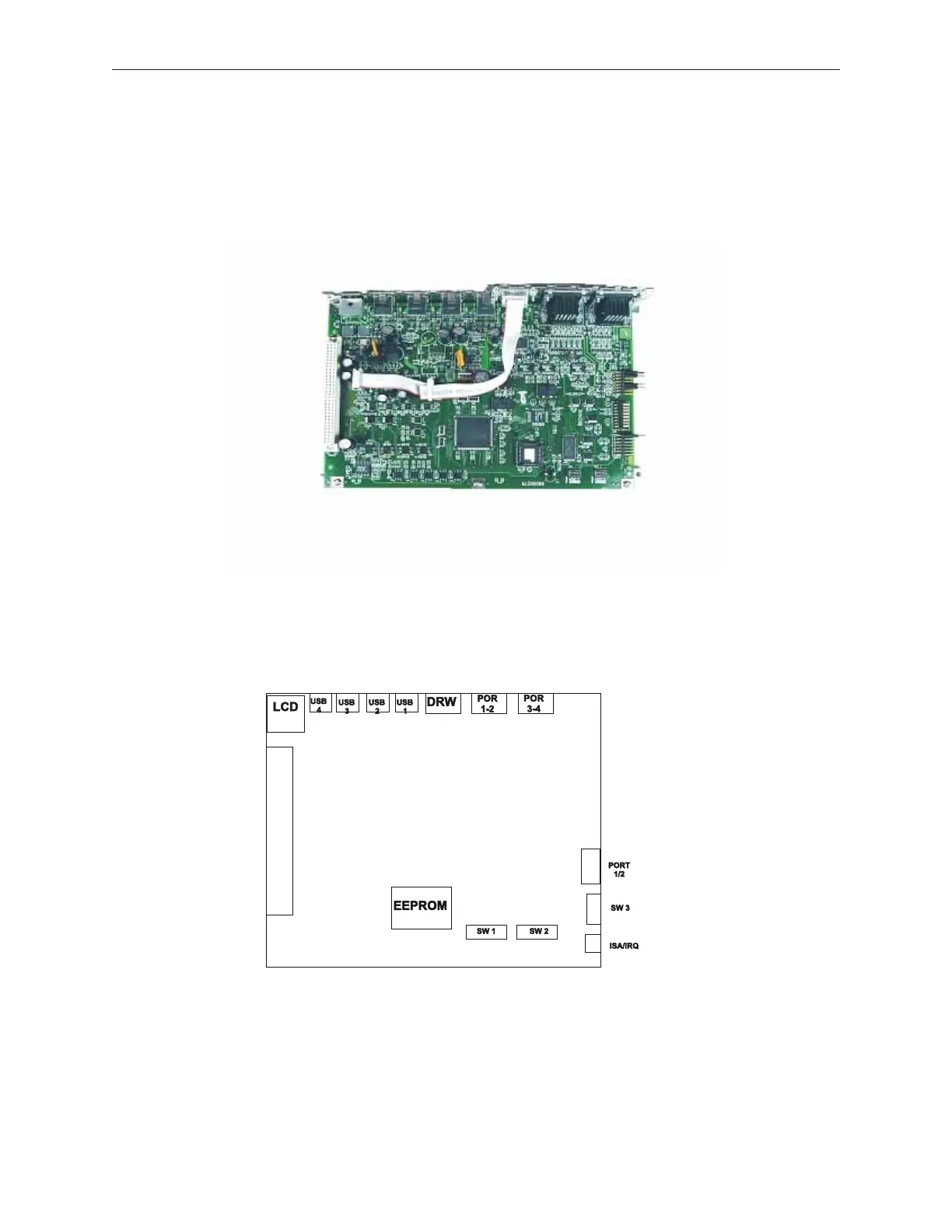

5.4.1 TeamCOMBO Board Pin Layout
To access jumpers:
1. Remove front cover (see section 5.1.1).
2. Remove side cover (left) (see section 5.1.2).
5-18 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
