Fujitsu TeamPoS 2000 - DRW Connector Signals; Retail I;O Boardports 3, 4 & 6 Connector Signals

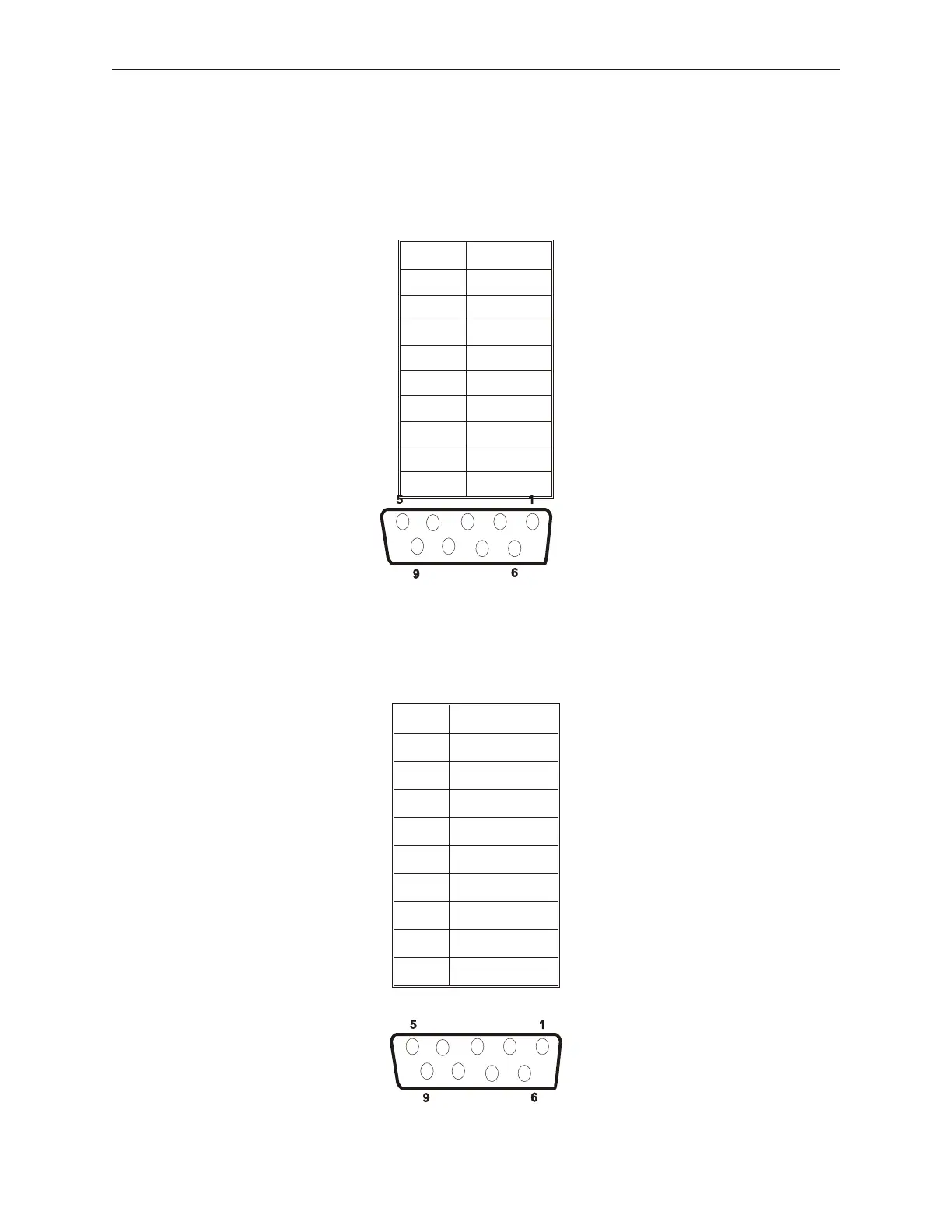

5.3.7 Retail I/O BoardPorts 3, 4 & 6 Connector Signals
Connector type: Female D9
Pin # Signal
1 GND
2 RX
3 TX
4 +24V
5 SG
6 +5V
7 RTS
8 CTS
9 GND
5.3.8 DRW Connector Signals
(Cash drawer port) Connector type: Female D9
Pin # Signal
1 +24V RET
2 CD1 Status
3 CD1 SOL+
4 NC
5 GND
6 NC
7 CD2 SOL+
8 CD2 Status
9 GND
