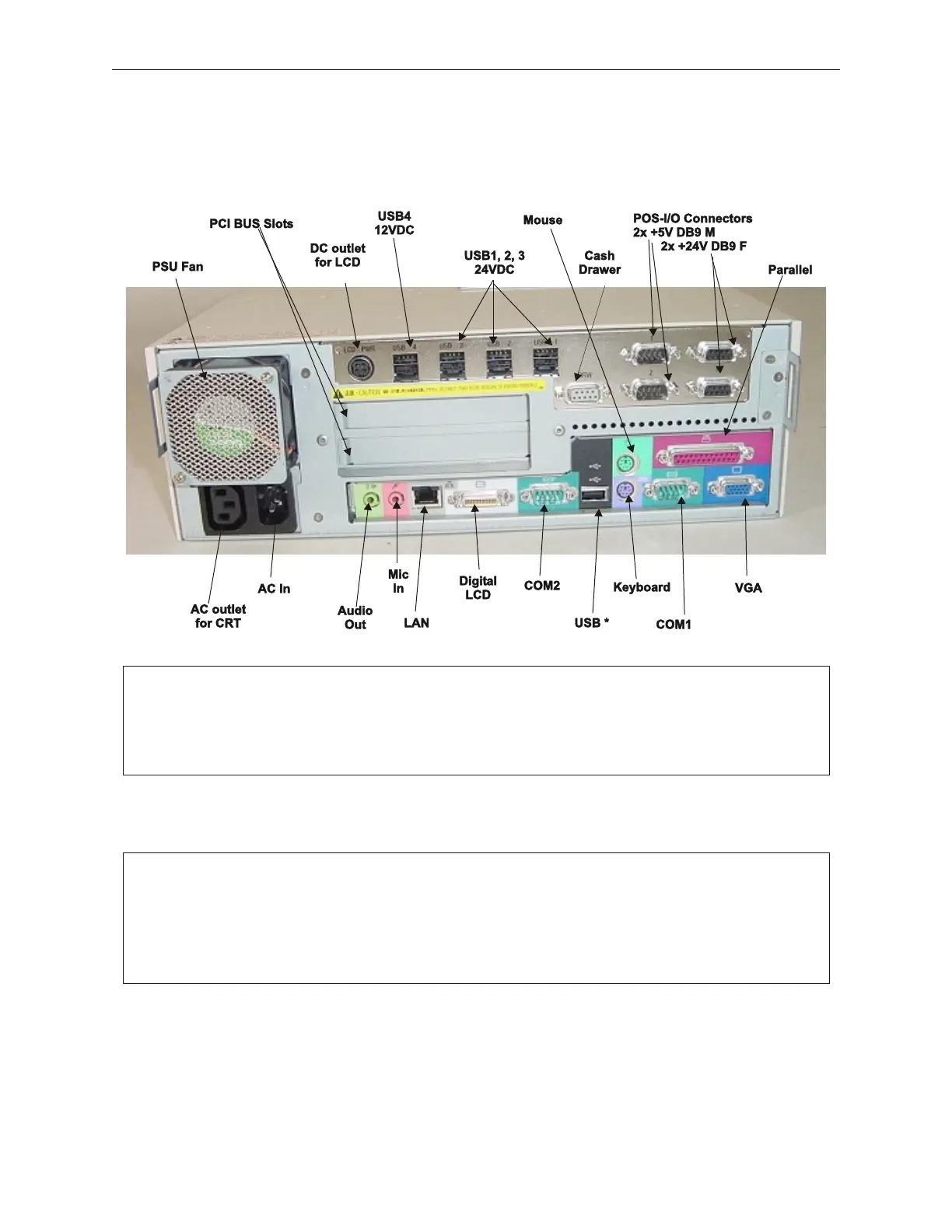

TeamPoS 2000 with TeamCOMBO Board Connector Layout with A Motherboard
90000291 Rev 3.0 5-77
TeamPoS 2000 MAINTENANCE MANUAL
Note: When the TeamCOMBO board is installed, one of the USB ports on the
motherboard becomes unavailable because it is used as a hub for the TeamCOMBO
board. A blanking label is installed over the top USB port connector on the back of
the motherboard as shown.
Note: There are two versions of the TeamCOMBO board:
1. PIN #90000276
2. PIN #90001036
PIN # 90000276 does not support powering the D15 LCD. A separate power
supply unit (PSU) is required.
