5.10.2 12.1" LCD Cable Requirements
The following graphics show LCD cable requirements for various configurations of
digital and analog LCD
*
. Refer to the cable summary at the end of these graphics for
cable part numbers.

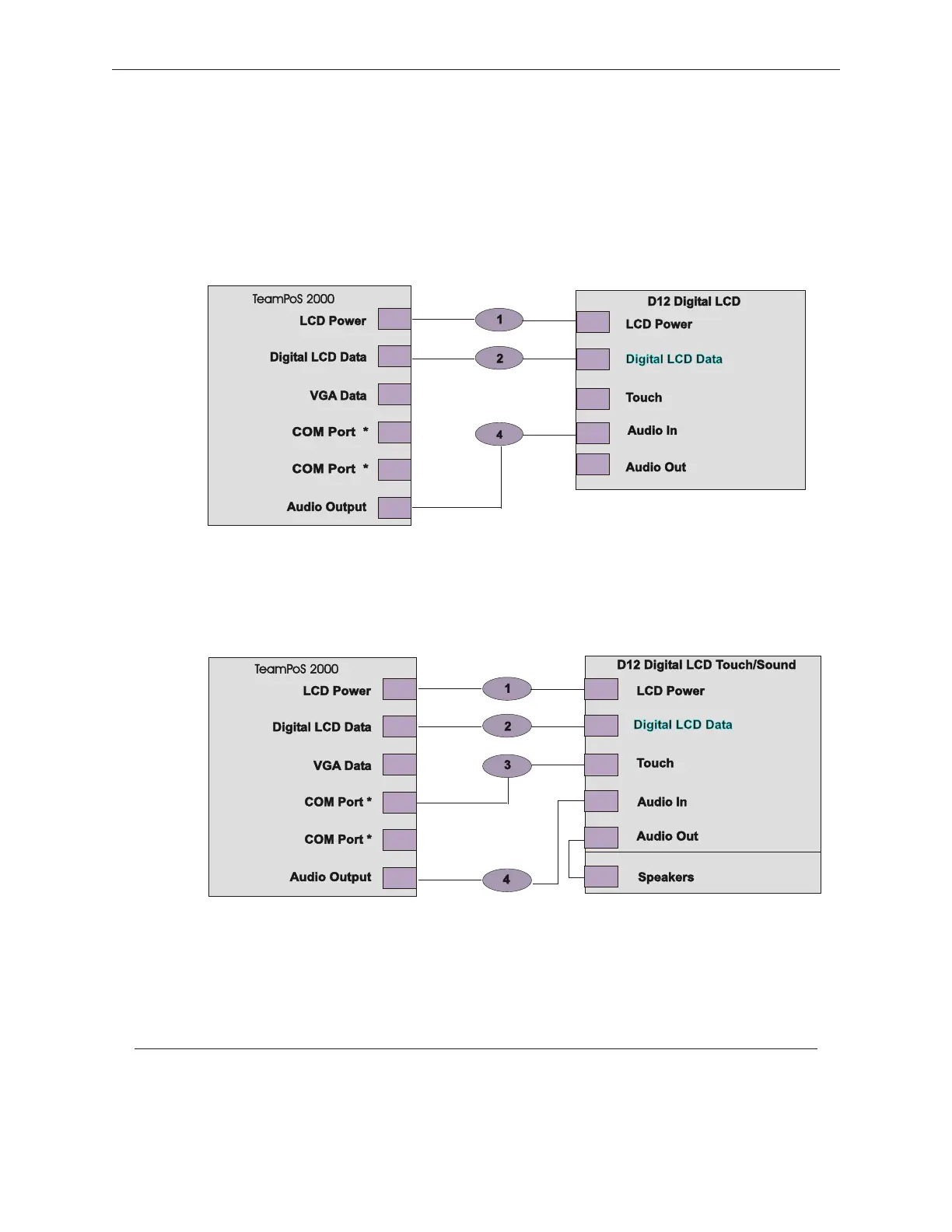

TeamPoS 2000 with Single Digital LCD
TeamPoS 2000 with Digital LCD, Touch & Speaker Options
90000291 Rev 3.0 5-55
TeamPoS 2000 MAINTENANCE MANUAL
* The application software will determine where the touch panels connect to the TeamPoS 2000. The touch cables can
be connected to one of the PC board's COM ports or any male 5VDC connector on the Retail I/O Board (Ports 1, 2 or 5) or
TeamCOMBO Board (Port 1 or 2)
