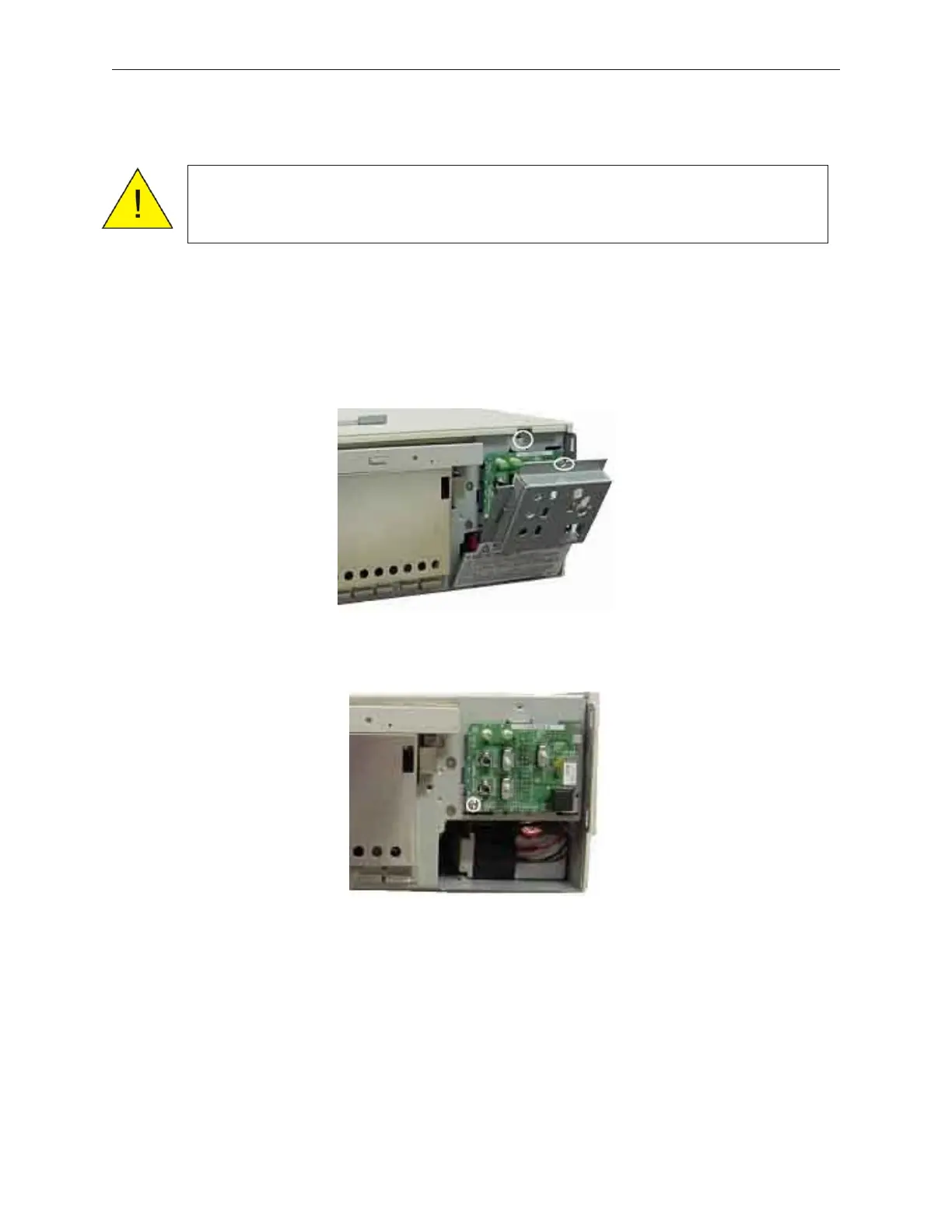

7.10 Operator Panel
1. Remove the front cover (see section 5.1.1).
2. Remove the cover metal plate on the front-right side of unit and over the panel with the
LED’s and power switch. It is secured with a screw in the center of the top cover.
3. Remove the screw at the lower left of the operator panel, and then disconnect the two
(2) cables from the back of the board to remove the board.
4. To mount the operator panel again, reverse the removal procedure.
7-18 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
Caution: To prevent electric shock, confirm that the AC cable is removed from
the AC outlet anytime the covers are removed. Be sure to observe all
ESD precautions and power off procedures.
