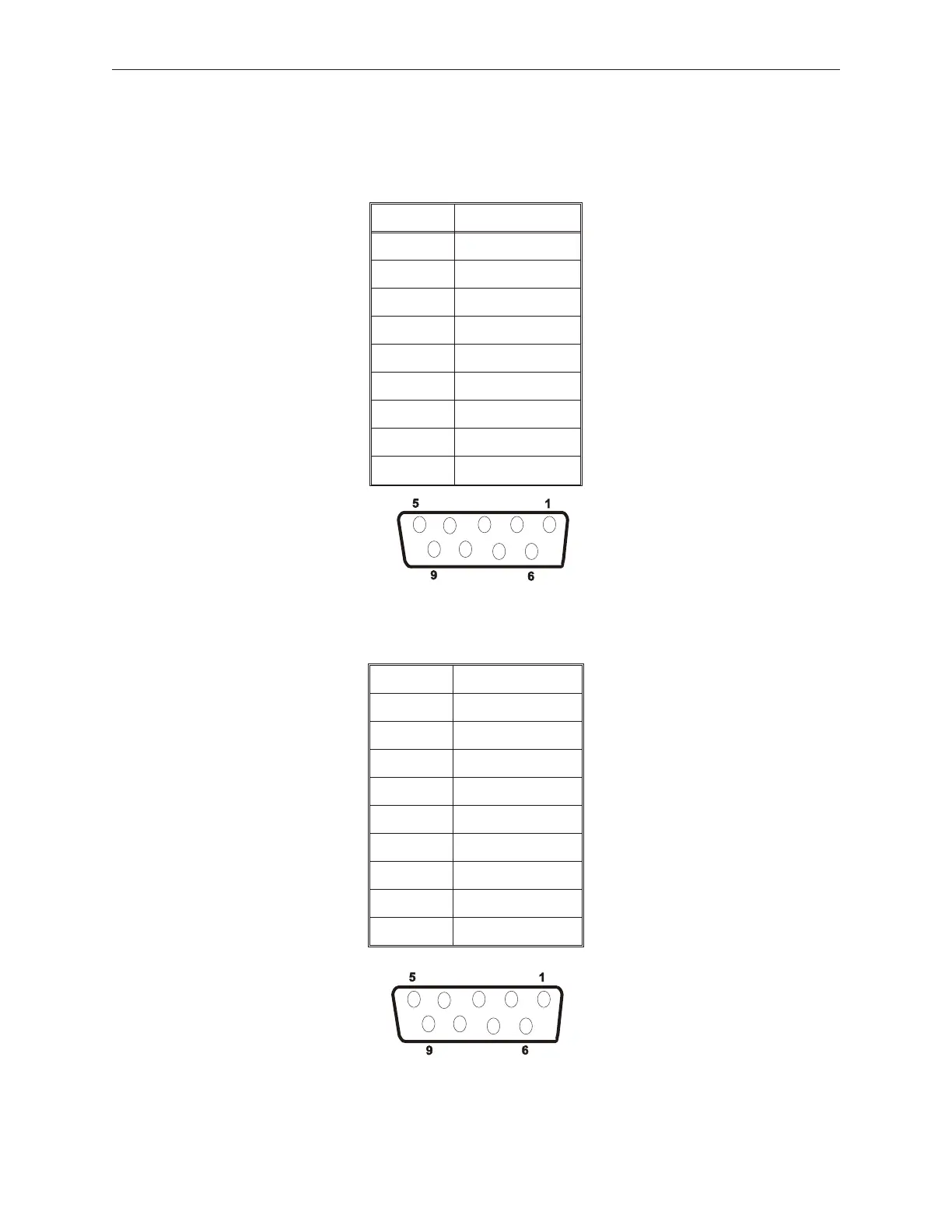

5.4.4 TeamCOMBO Board. Ports 3 and 4 Connector Signals
Connector type: Female D9
Pin # Signal
1 GRD
2 RX
3 TX
4 +24V
5 SG
6 +5V
7 RTS
8 CTS
9 GND
5.4.5 DRW Connector Signals
Connector type: Female D9 (Cash drawer port)
Pin # Signal
1 +24V RET
2 CD1 Status
3 CD1 SOL+
4 NC
5 GND
6 NC
7 CD2 SOL+
8 CD2 Status
9 GND
