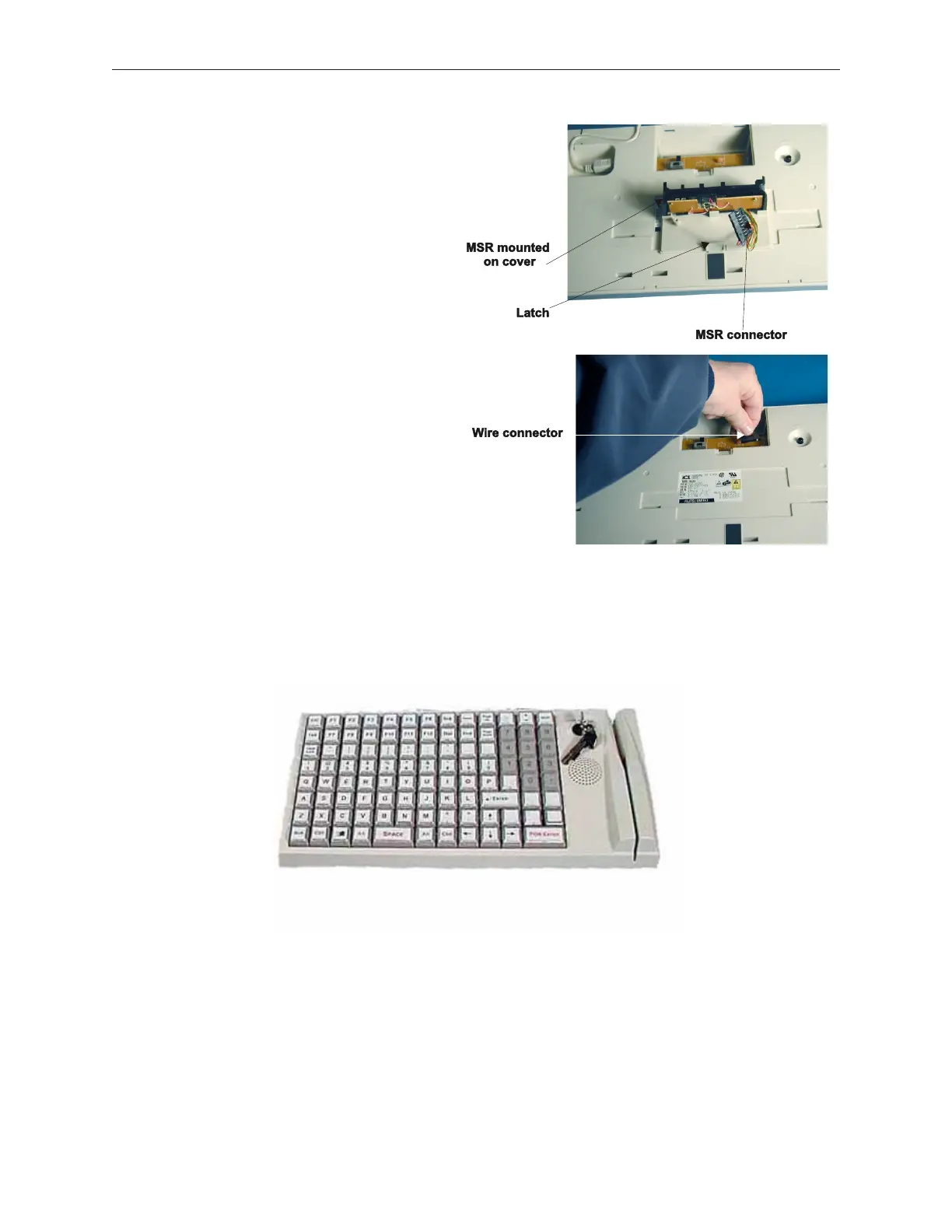

4. Fit the MSR into the frame inside the MSR cover.

The circuit board should face the latch. This is the

only way that the MSR can be installed. Be sure

the connecting wires come out from under the

MSR on the circuit board side.

5. Slip the end of the wire onto the pin connector in the

MSR space, smooth side up. The wires can only be

connected one way.

6. Flip cover over and ease the MSR into the slot,

aligning the slot in the MSR beneath the slot in the

keyboard.

5.8.4 Model 104P Keyboard Unit (Compact Keyboard)

(PIN #'s 90000175)

90000291 Rev 3.0 5-33

TeamPoS 2000 MAINTENANCE MANUAL
