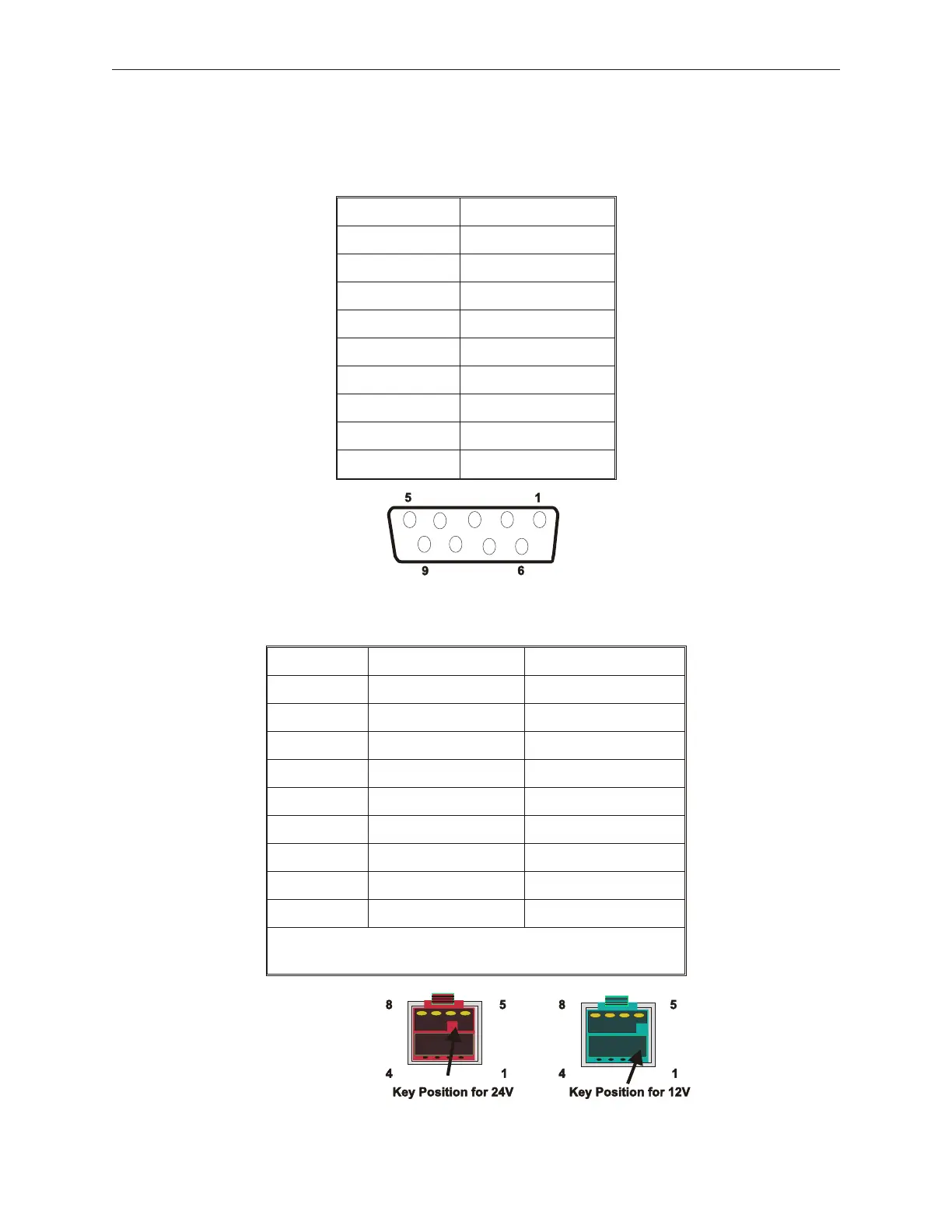

5.5.2 TeamUSB Board DRW Connector Signals
Connector type: Female D9 (Cash drawer port)
Pin # Signal
1 +24V Return
2 CD0-Open
3 CD0-Sol
4 N/C
5 Gnd
6 N/C
7 CD1-Sol
8 CD1-Open
9 +24V Return
5.5.3 TeamUSB Board, Powered USB Connectors - 7 ports
Pin # USB +24V USB +12V
Ports 1, 2, 3 & 4 Ports 5, 6 & 7
1 5V USB Pwr 5V USB Pwr
2 Data - Data -
3 Data + Data +
4 Gnd Gnd
5 +24V Return +12V Return
6 +24V Pwr +12V Pwr
7* +24V Pwr +12V Pwr
8 +24V Return +12V Return
* Port 7 is unavailable when TeamUSB board is installed with the
A Motherboard
