5.8.2.1 Model 92U Keyboard Switch Settings

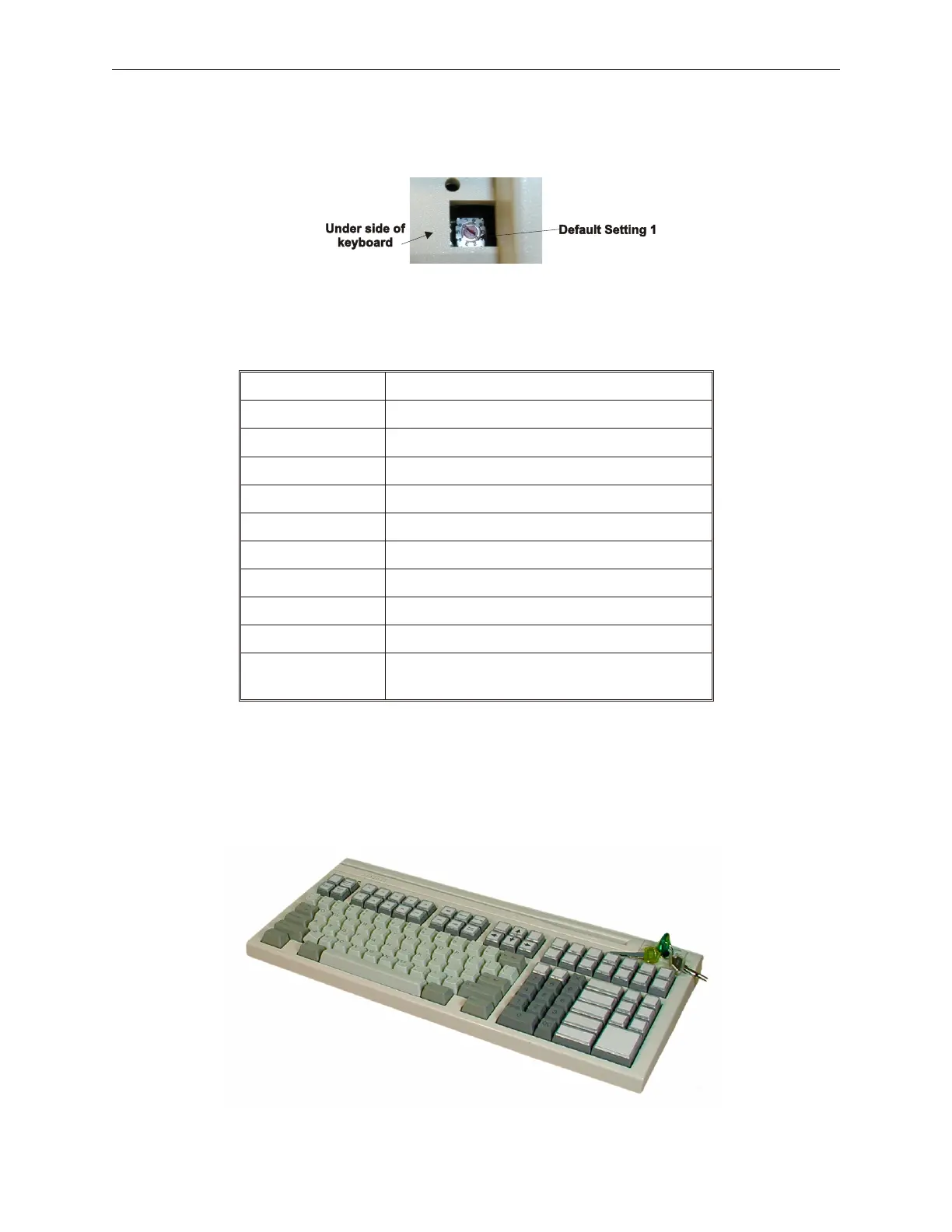

The keyboard assembly has a 10-position rotary address switch located next to the
interface cable connection. See photo above.
Switch Number Function
0 Offline Diagnostics
1
MSR 1, 2 &3
2 Not used
3 Not used
4 Not used
5 MSR 1 & 2 emulation
6 MSR 2 & 3 emulation
7 Not used
8 Not used
9 Returns keyboard layout to the factory setting
during power up
5.8.3 Model 133PQ Keyboard Unit (not programmable)
(PIN #'s PB600335, PB600315, 90000627-29)
90000291 Rev 3.0 5-31
TeamPoS 2000 MAINTENANCE MANUAL
