12. After the entire display unit is completed, set the unit on
the TeamPoS 2000 control unit, and slide it back onto the
LCD brackets.

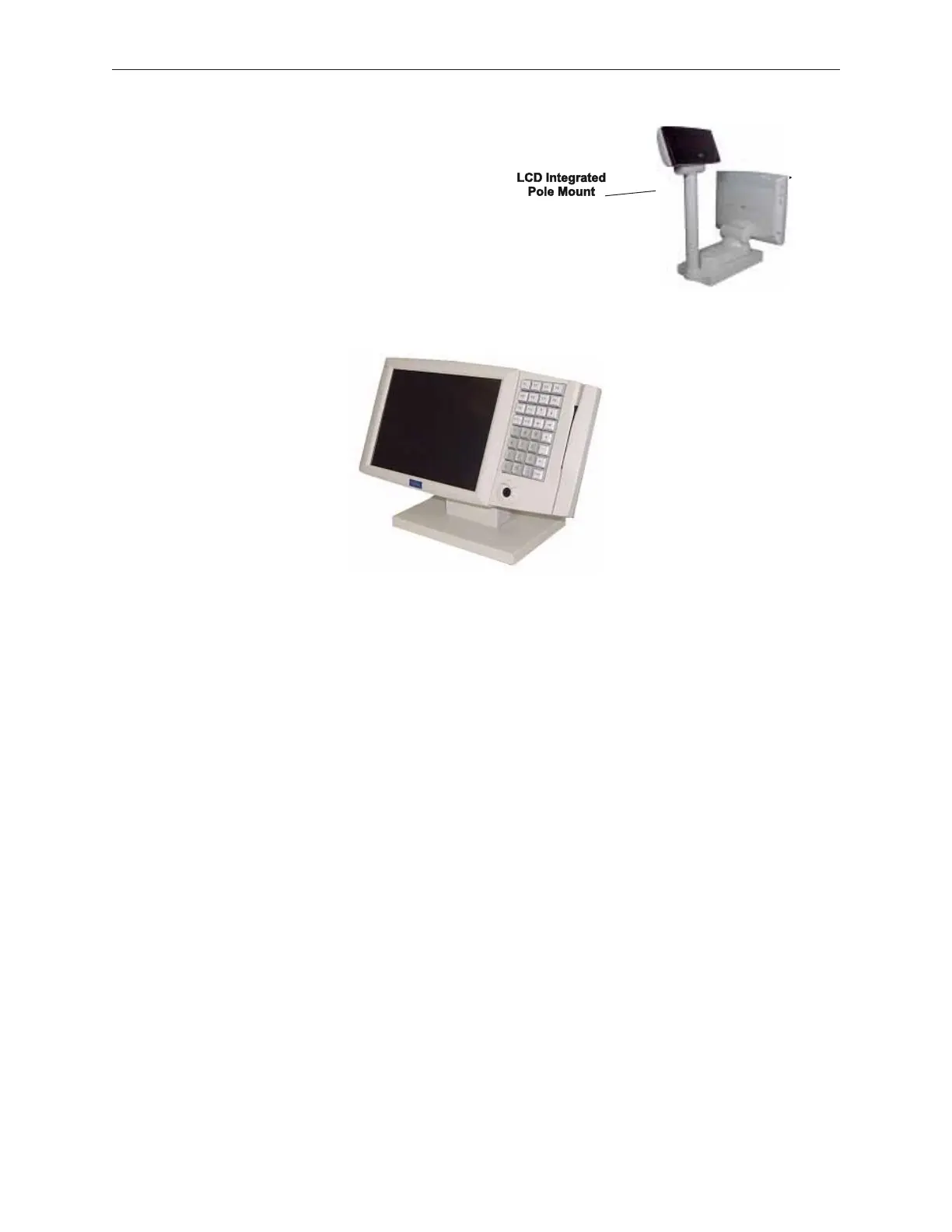

5.10.6 D12/A12 LCD with TeamKey Assembly
1. Install cables on the LCD (See LCD Cable Requirements, section 5.8.2.2).
2. Route all cables though the stand.
5-66 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
