Fujitsu TeamPoS 2000 - Teampos 2000 Control Unit Flow Diagram

1.1 TeamPoS 2000 Control Unit Flow Diagram

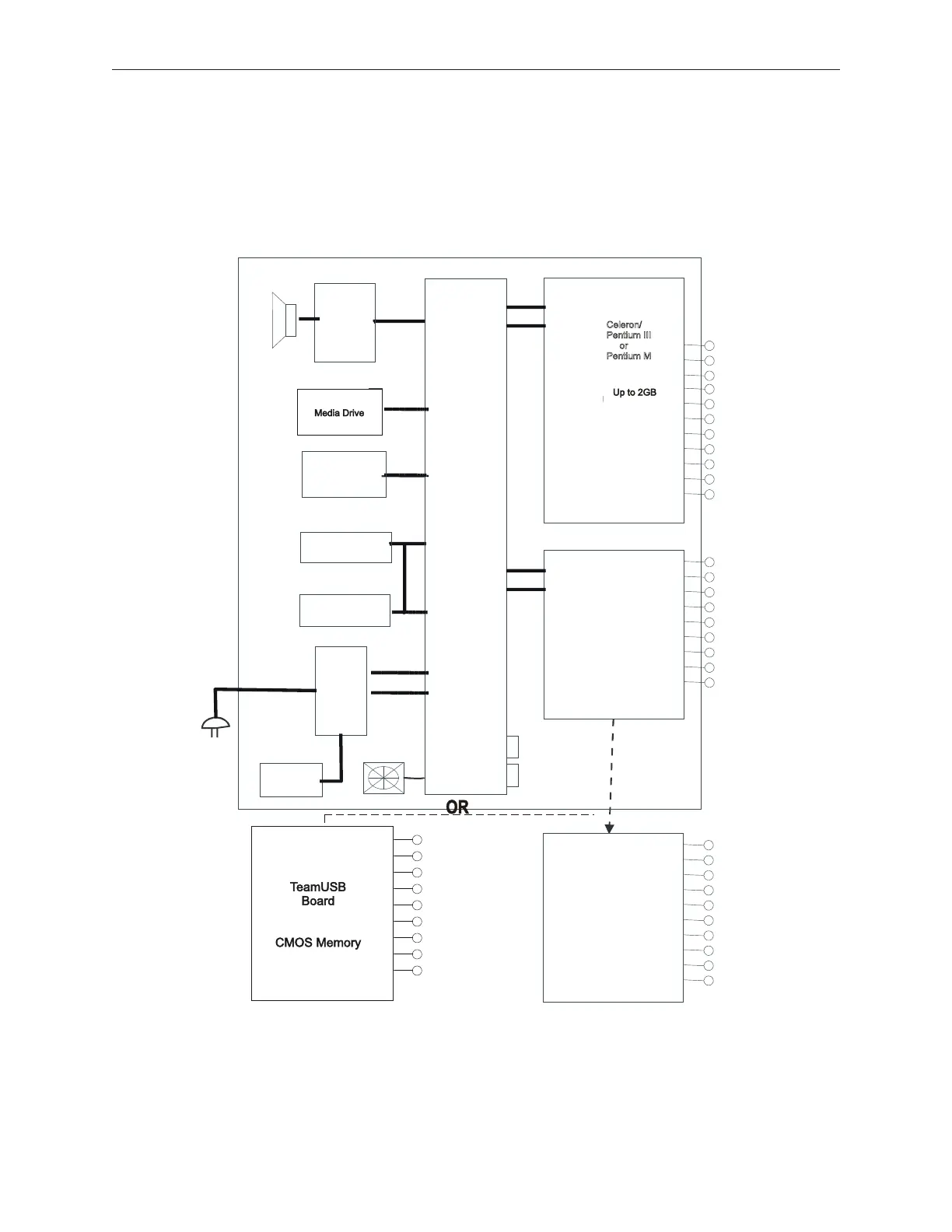

The following graphic shows a high level overview of the TeamPoS 2000 Control Unit.
1-2 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
PC Board
CPU:
Celeron /
Pentium III
Memory:
Up to 768MB
Lithium Battery
Retail
I/O Board
CMOS Memory
PCI Slot
PCI Slot
Hard Drive # 1
Hard Drive # 2
Battery
AC 100V
AC 240V
Fan
DRAWER
LCD POWER
PRINTER
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
R
I
S
E
R
C
A
R
D
Floppy
Operator
Panel
TeamCOM BO
Board
CMOS Memory
DRAWER
LCD POWER
PORT 1
PORT 2
PORT 3
PORT 4
Retail USB
Retail USB
Retail USB
Retail USB
Alternate I/O board
CD-ROM/DVD
Power
Control
Unit
OR
DRAWER
LCD POWER
Retail USB
Retail USB
Retail USB
Retail USB
Retail USB
Retail USB
Retail USB
w/new riser
card
