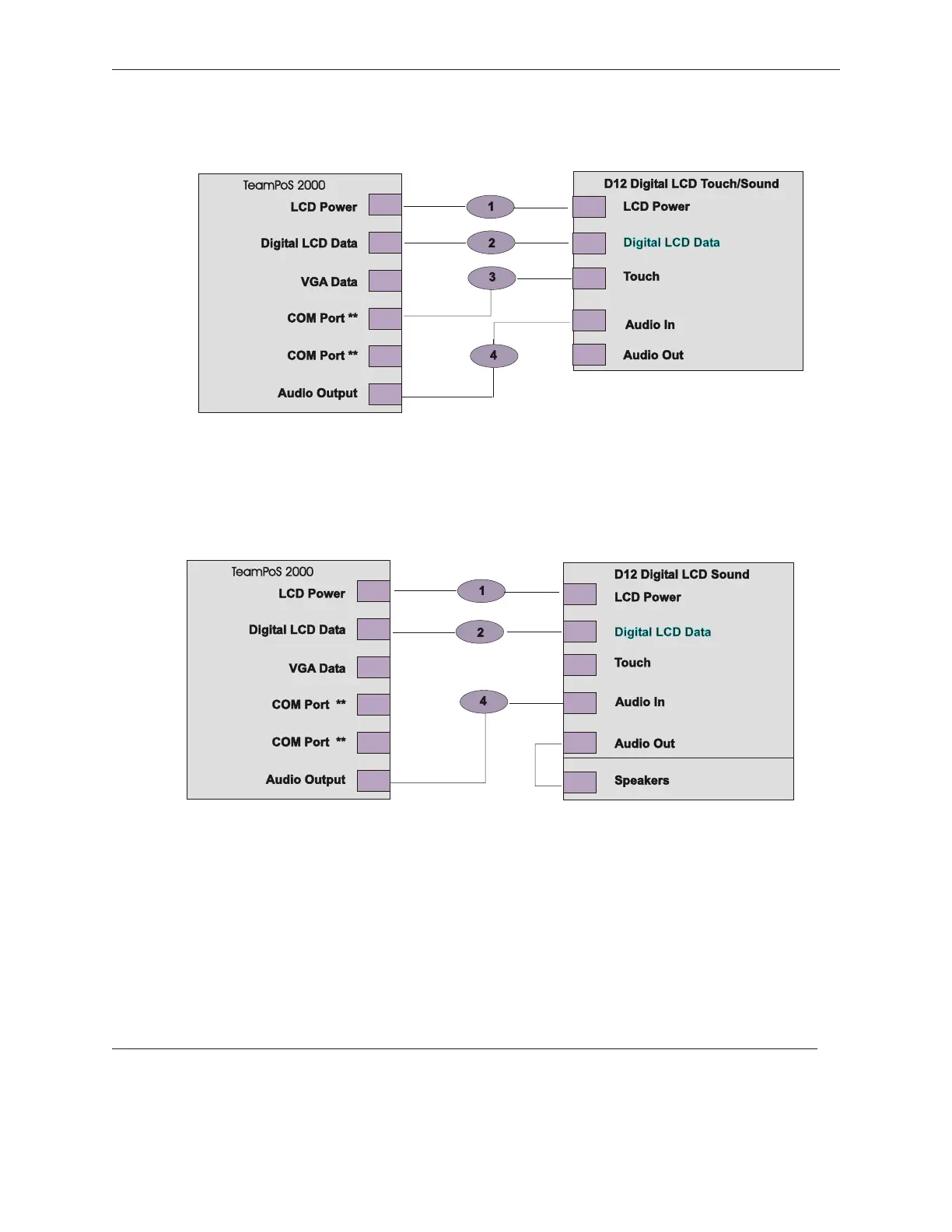

LCD Cable Requirements (continued)
TeamPoS 2000 with Digital LCD and Touch Option
**
TeamPoS 2000 with Digital LCD and Speaker Option
5-56 Rev 3.0 90000291
TeamPoS 2000 MAINTENANCE MANUAL
** The application software will determine where the touch panels connect to the TeamPoS 2000. The touch cables can be
connected to one of the PC board's COM ports or any male 5VDC connector on the Retail I/O Board (Ports 1, 2 or 5) or
TeamCOMBO Board (Port 1 or 2)
To Next Page
