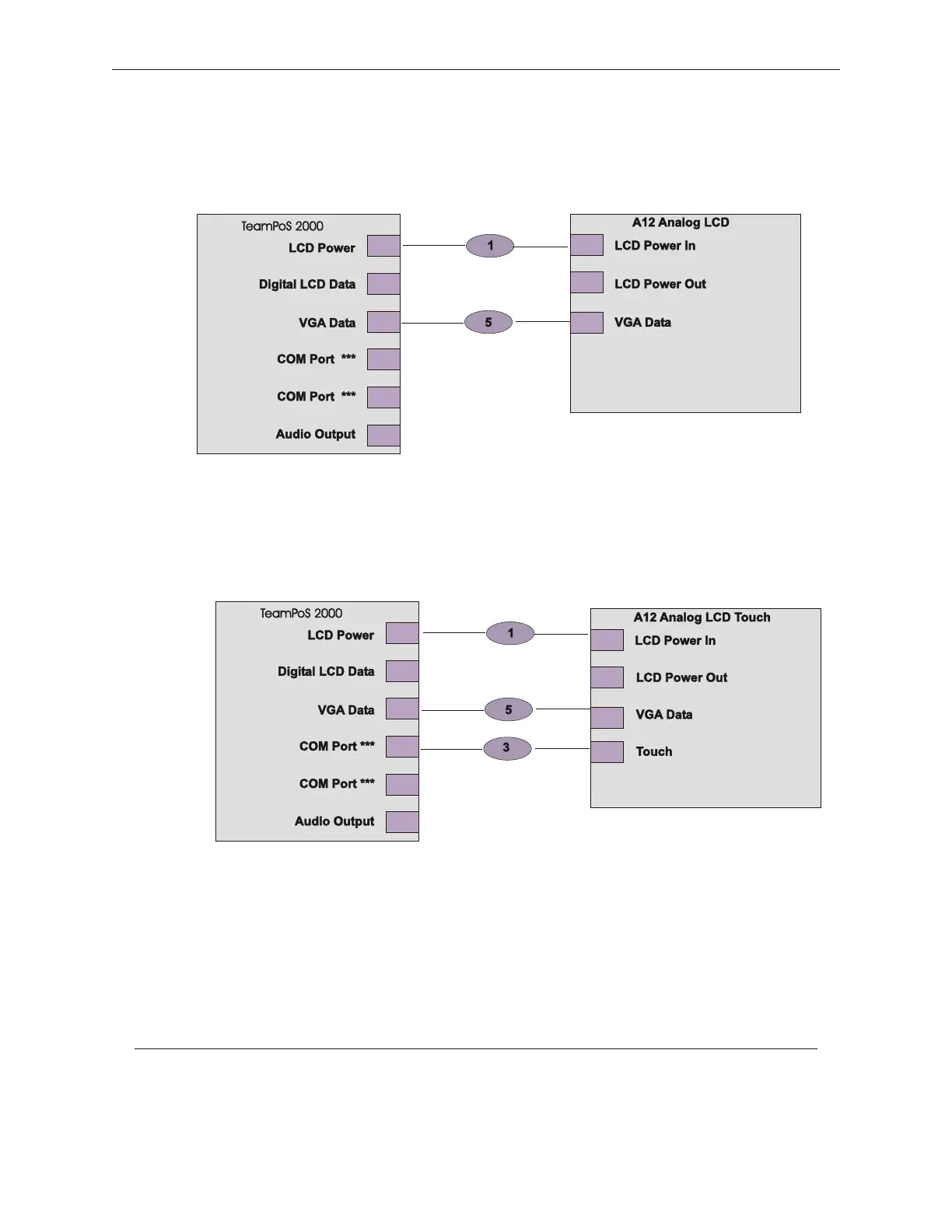

LCD Cable Requirements (continued)
TeamPoS 2000 with Analog LCD
TeamPoS 2000with Analog LCD and Touch Option
***
90000291 Rev 3.0 5-57
TeamPoS 2000 MAINTENANCE MANUAL
*** The application software will determine where the touch panels connect to the TeamPoS 2000. The touch cables can
be connected to ne of the PC board's COM ports or any male 5VDC connector on the Retail I/O Board (Ports 1, 2 or 5)
orTeamCOMBO Board (Port 1 or 2)
