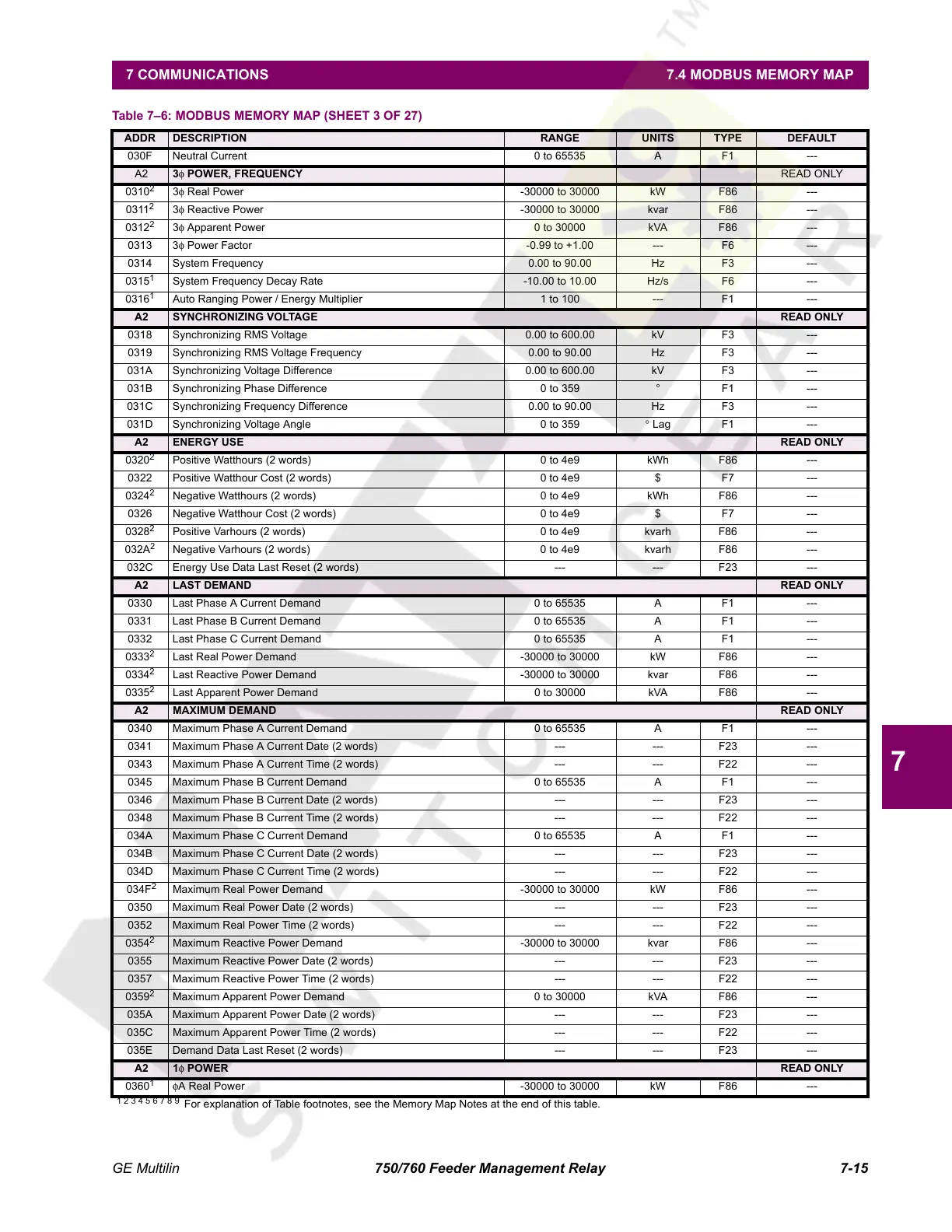

7 COMMUNICATIONS 7.4 MODBUS MEMORY MAP
7
030F Neutral Current 0 to 65535 A F1 ---
A2 3φ POWER, FREQUENCY READ ONLY
0310
2
3φ Real Power -30000 to 30000 kW F86 ---
0311
2
3φ Reactive Power -30000 to 30000 kvar F86 ---
0312
2
3φ Apparent Power 0 to 30000 kVA F86 ---
0313 3φ Power Factor -0.99 to +1.00 --- F6 ---
0314 System Frequency 0.00 to 90.00 Hz F3 ---
0315
1
System Frequency Decay Rate -10.00 to 10.00 Hz/s F6 ---
0316
1
Auto Ranging Power / Energy Multiplier 1 to 100 --- F1 ---
A2 SYNCHRONIZING VOLTAGE READ ONLY
0318 Synchronizing RMS Voltage 0.00 to 600.00 kV F3 ---
0319 Synchronizing RMS Voltage Frequency 0.00 to 90.00 Hz F3 ---
031A Synchronizing Voltage Difference 0.00 to 600.00 kV F3 ---
031B Synchronizing Phase Difference 0 to 359 ° F1 ---
031C Synchronizing Frequency Difference 0.00 to 90.00 Hz F3 ---
031D Synchronizing Voltage Angle 0 to 359 ° Lag F1 ---
A2 ENERGY USE READ ONLY
0320
2
Positive Watthours (2 words) 0 to 4e9 kWh F86 ---
0322 Positive Watthour Cost (2 words) 0 to 4e9 $ F7 ---
0324
2
Negative Watthours (2 words) 0 to 4e9 kWh F86 ---
0326 Negative Watthour Cost (2 words) 0 to 4e9 $ F7 ---
0328
2
Positive Varhours (2 words) 0 to 4e9 kvarh F86 ---
032A
2
Negative Varhours (2 words) 0 to 4e9 kvarh F86 ---
032C Energy Use Data Last Reset (2 words) --- --- F23 ---
A2 LAST DEMAND READ ONLY
0330 Last Phase A Current Demand 0 to 65535 A F1 ---
0331 Last Phase B Current Demand 0 to 65535 A F1 ---
0332 Last Phase C Current Demand 0 to 65535 A F1 ---
0333
2
Last Real Power Demand -30000 to 30000 kW F86 ---
0334
2
Last Reactive Power Demand -30000 to 30000 kvar F86 ---
0335
2
Last Apparent Power Demand 0 to 30000 kVA F86 ---
A2 MAXIMUM DEMAND READ ONLY
0340 Maximum Phase A Current Demand 0 to 65535 A F1 ---
0341 Maximum Phase A Current Date (2 words) --- --- F23 ---
0343 Maximum Phase A Current Time (2 words) --- --- F22 ---
0345 Maximum Phase B Current Demand 0 to 65535 A F1 ---
0346 Maximum Phase B Current Date (2 words) --- --- F23 ---
0348 Maximum Phase B Current Time (2 words) --- --- F22 ---
034A Maximum Phase C Current Demand 0 to 65535 A F1 ---
034B Maximum Phase C Current Date (2 words) --- --- F23 ---
034D Maximum Phase C Current Time (2 words) --- --- F22 ---
034F
2
Maximum Real Power Demand -30000 to 30000 kW F86 ---
0350 Maximum Real Power Date (2 words) --- --- F23 ---
0352 Maximum Real Power Time (2 words) --- --- F22 ---
0354
2
Maximum Reactive Power Demand -30000 to 30000 kvar F86 ---
0355 Maximum Reactive Power Date (2 words) --- --- F23 ---
0357 Maximum Reactive Power Time (2 words) --- --- F22 ---
0359
2
Maximum Apparent Power Demand 0 to 30000 kVA F86 ---
035A Maximum Apparent Power Date (2 words) --- --- F23 ---
035C Maximum Apparent Power Time (2 words) --- --- F22 ---
035E Demand Data Last Reset (2 words) --- --- F23 ---
A2 1φ POWER READ ONLY
0360
1
φA Real Power -30000 to 30000 kW F86 ---
Table 7–6: MODBUS MEMORY MAP (SHEET 3 OF 27)
ADDR DESCRIPTION RANGE UNITS TYPE DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see the Memory Map Notes at the end of this table.
