7-16 750/760 Feeder Management Relay GE Multilin
7.4 MODBUS MEMORY MAP 7 COMMUNICATIONS
7
0361
1
φA Reactive Power -30000 to 30000 kvar F86 ---
0362
1
φA Apparent Power 0 to 30000 kVA F86 ---
0363
1
φA Power Factor -0.99 to +1.00 --- F6 ---
0364
1
φB Real Power -30000 to 30000 kW F86 ---
0365
1
φB Reactive Power -30000 to 30000 kvar F86 ---
0366
1
φB Apparent Power 0 to 30000 kVA F86 ---
0367
1
φB Power Factor -0.99 to +1.00 --- F6 ---
0368
1
φC Real Power -30000 to 30000 kW F86 ---
0369
1
φC Reactive Power -30000 to 30000 kvar F86 ---
036A
1
φC Apparent Power 0 to 30000 kVA F86 ---
036B
1
φC Power Factor -0.99 to +1.00 --- F6 ---
A2 ANALOG INPUT READ ONLY
0370 Analog Input 0 to 65535 Units F1 ---
0371 Analog Input Fast Rate of Change --- Units / min. F5 ---
0372 Analog Input Slow Rate of Change --- Units / hr. F5 ---
A3 TRIP COUNTERS READ ONLY
0380 Breaker Trips 0 to 65535 --- F1 ---
0381 Ground Overcurrent Trips 0 to 65535 --- F1 ---
0382 Neutral Overcurrent Trips 0 to 65535 --- F1 ---
0383 One Phase Overcurrent Trips 0 to 65535 --- F1 ---
0384 Two Phase Overcurrent Trips 0 to 65535 --- F1 ---
0385 Three Phase Overcurrent Trips 0 to 65535 --- F1 ---
0386 Trip Counters Last Reset Date (2 words) --- --- F23 ---
0388 Negative Sequence Overcurrent Trips 0 to 65535 --- F1 ---
0389
3
Sensitive Ground Overcurrent Trips 0 to 65535 --- F1 ---
A3 TOTAL ARCING CURRENT READ ONLY
03A0 Total Arcing Current Phase A 0 to 65535 kA
2
cyc F1 ---
03A1 Total Arcing Current Phase B 0 to 65535 kA
2
cyc F1 ---
03A2 Total Arcing Current Phase C 0 to 65535 kA
2
cyc F1 ---
03A3 Total Arcing Current Last Reset (2 words) --- --- F23 ---
A1 FAULT LOCATION 1 READ ONLY
03B0 Date of Fault (2 words) --- --- F23 ---
03B2 Time of Fault (2 words) --- --- F22 ---
03B4 Type of Fault --- --- F76 ---
03B5 Distance to Fault -327.68 to 327.67 km, mi F52 ---
03B6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 2 READ ONLY
03B8 Date of Fault (2 words) --- --- F23 ---
03BA Time of Fault (2 words) --- --- F22 ---
03BC Type of Fault --- --- F76 ---
03BD Distance to Fault -327.68 to 327.67 km F52 ---
03BE Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 3 READ ONLY
03C0 Date of Fault (2 words) --- --- F23 ---
03C2 Time of Fault (2 words) --- --- F22 ---
03C4 Type of Fault --- --- F76 ---
03C5 Distance to Fault -327.68 to 327.67 km F52 ---
03C6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 4 READ ONLY
03C8 Date of Fault (2 words) --- --- F23 ---
03CA Time of Fault (2 words) --- --- F22 ---
03CC Type of Fault --- --- F76 ---
03CD Distance to Fault -327.68 to 327.67 km F52 ---

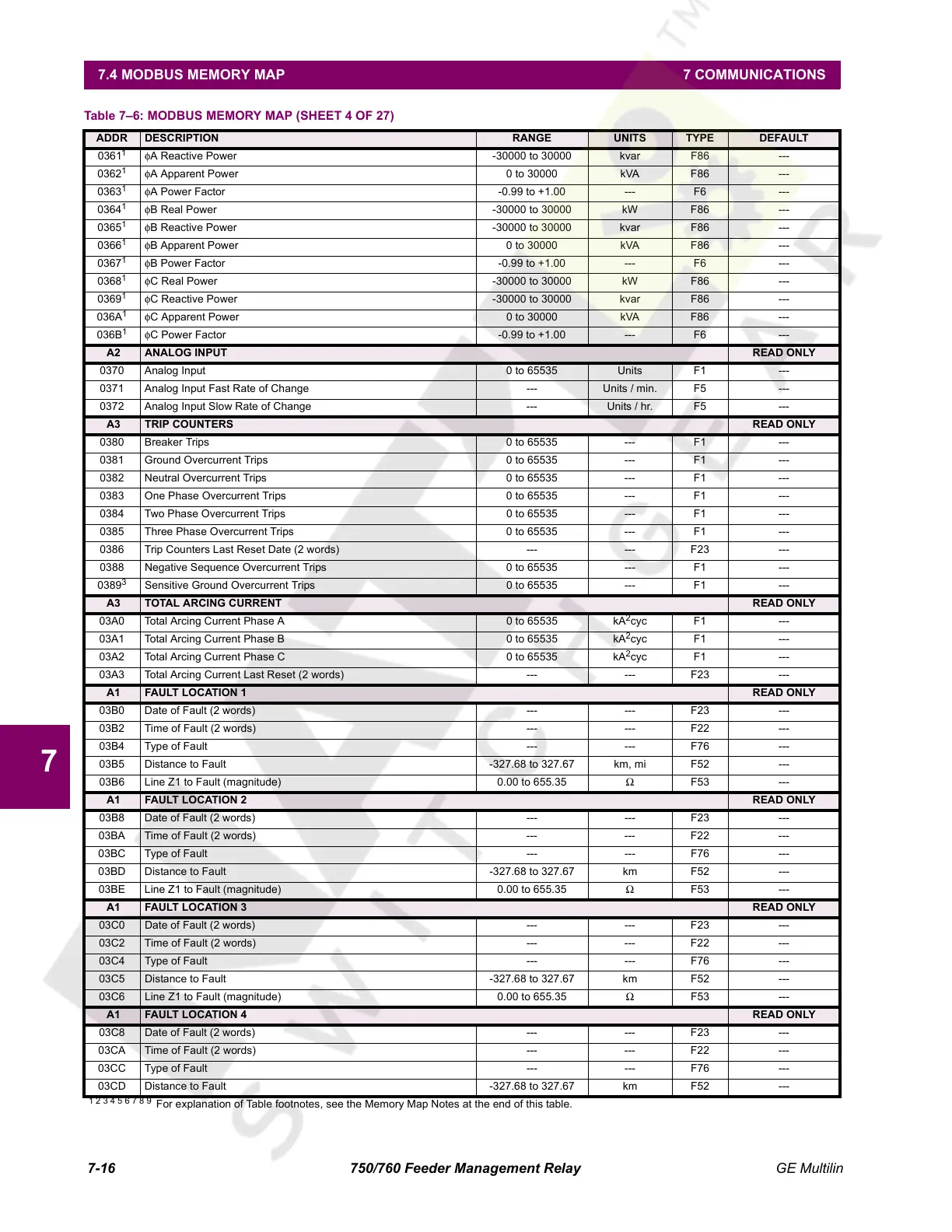

Table 7–6: MODBUS MEMORY MAP (SHEET 4 OF 27)
ADDR DESCRIPTION RANGE UNITS TYPE DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see the Memory Map Notes at the end of this table.
