GE Multilin 750/760 Feeder Management Relay 7-29
7 COMMUNICATIONS 7.4 MODBUS MEMORY MAP
7
1661
1
Neutral Time Overcurrent 2 Relays --- --- F57 None
1662
1
Neutral Time Overcurrent 2 Curve --- --- F36 Ext. Inverse
1663
1
Neutral Time Overcurrent 2 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1664
1
Neutral Time Overcurrent 2 Multiplier 0.00 to 100.00 --- F3 1.00
1665
1
Neutral Time Overcurrent 2 Reset Time --- --- F68 Instantaneous
1666
1
Neutral Time Overcurrent 2 Direction --- --- F84 Disabled
S5 NEUTRAL DIRECTIONAL READ/WRITE
1670
1
Neutral Directional Function --- --- F38 Disabled
1671
1
Neutral Directional Maximum Torque Angle 0 to 359 ° F1 315°
1672
1
Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1674
1
Neutral Directional Polarizing --- --- F50 Voltage
1675
1
Neutral Directional Relays --- --- F57 None
S5 NEGATIVE SEQUENCE TIME OVERCURRENT READ/WRITE
1700 Negative Sequence Time Overcurrent Function --- --- F37 Disabled
1701 Negative Sequence Time Overcurrent Relays --- --- F57 None
1702
1
Negative Sequence Time Overcurrent Curve --- --- F36 Ext. Inverse
1703
1
Negative Sequence Time Overcurrent Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1704
1
Negative Sequence Time Overcurrent Multiplier 0.00 to 100.00 --- F3 1.00
1705
1
Negative Sequence Time Overcurrent Reset Time --- --- F68 Instantaneous
1706
1
Negative Sequence Time Overcurrent Direction --- --- F84 Disabled
S5 NEGATIVE SEQUENCE INST OVERCURRENT READ/WRITE
1710 Negative Sequence Inst Overcurrent Function --- --- F37 Disabled
1711 Negative Sequence Instantaneous Overcurrent Relays --- --- F57 None
1712 Negative Sequence Instantaneous Overcurrent Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1713 Negative Sequence Instantaneous Overcurrent Delay 0.00 to 600.00 s F3 0.00 s
1714
1
Negative Sequence Inst Overcurrent Direction --- --- F84 Disabled
S5 NEGATIVE SEQUENCE VOLTAGE READ/WRITE
1720 Negative Sequence Voltage Function --- --- F39 Disabled
1721 Negative Sequence Voltage Relays --- --- F57 None
1722
2
Negative Sequence Voltage Pickup 0.00 to 1.25 x VT F3 0.10
1723 Negative Sequence Voltage Delay 0.0 to 6000.0 s F2 2.0 s
S5 NEGATIVE SEQUENCE DIRECTIONAL READ/WRITE
1730
1
Negative Sequence Directional Function --- --- F38 Disabled
1731
1
Neg Seq Directional Maximum Torque Angle (MTA) 0 to 359 ° F1 315°
1732
1
Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1733
1
Negative Sequence Directional Relays --- --- F57 None
S5 SENSITIVE GROUND INSTANTANEOUS OC READ/WRITE
1740
3
Sensitive Ground Instantaneous Overcurrent Function --- --- F37 Disabled
1741
3
Sensitive Ground Instantaneous Overcurrent Relays --- --- F57 None
1742
3
Sensitive Ground Instantaneous Overcurrent Pickup 0.005 to 1.000 x CT F70 0.100 x CT
1743
3
Sensitive Ground Instantaneous Overcurrent Delay 0.00 to 600.00 s F3 0.00 s
1744
3
Sensitive Ground Instantaneous Overcurrent Direction --- --- F84 Disabled
S5 SENSITIVE GROUND TIME OC READ/WRITE
1750
3
Sensitive Ground Time Overcurrent Function --- --- F37 Disabled
1751
3
Sensitive Ground Time Overcurrent Relays --- --- F57 None
1752
3
Sensitive Ground Time Overcurrent Curve --- --- F36 Ext. Inverse
1753
3
Sensitive Ground Time Overcurrent Pickup 0.005 to 1.000 x CT F70 0.100 x CT
1754
3
Sensitive Ground Time Overcurrent Multiplier 0.00 to 100.00 --- F3 1.00
1755
3
Sensitive Ground Time Overcurrent Reset Time --- --- F68 Instantaneous
1756
3
Sensitive Ground Time Overcurrent Direction --- --- F84 Disabled
S5 SENSITIVE GROUND DIRECTIONAL READ/WRITE
1760
3
Sensitive Ground Directional Function --- --- F38 Disabled
1761
3
Sensitive Ground Directional Maximum Torque Angle 0 to 359 ° F1 315°

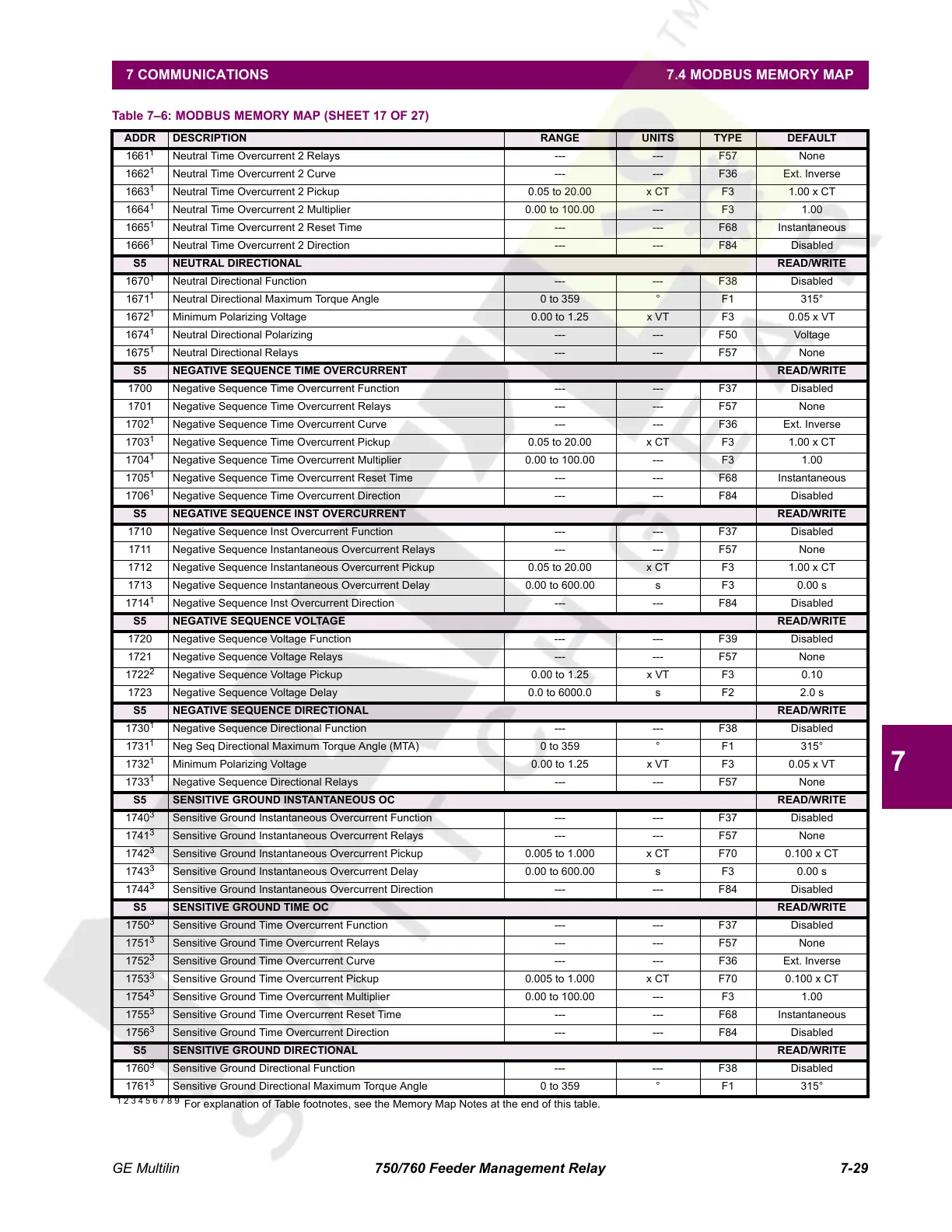

Table 7–6: MODBUS MEMORY MAP (SHEET 17 OF 27)
ADDR DESCRIPTION RANGE UNITS TYPE DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see the Memory Map Notes at the end of this table.
