7-34 750/760 Feeder Management Relay GE Multilin
7.4 MODBUS MEMORY MAP 7 COMMUNICATIONS
7
S6 ANALOG OUTPUT 7 READ/WRITE
18D8 Analog Output 7 Parameter --- --- F77 Disabled
18D9 Analog Output 7 Minimum --- --- F78 0
18DA Analog Output 7 Maximum --- --- F78 0
S6 ANALOG OUTPUT 8 READ/WRITE
18DC Analog Output 8 Parameter --- --- F77 Disabled
18DD Analog Output 8 Minimum --- --- F78 0
18DE Analog Output 8 Maximum --- --- F78 0
S6 OVERFREQUENCY READ/WRITE
18E0 Overfrequency Function --- --- F38 Disabled
18E1 Overfrequency Relays --- --- F57 None
18E2 Overfrequency Pickup 20.00 to 65.00 Hz F3 60.50 Hz
18E3 Overfrequency Delay 0.0 to 6000.0 s F2 5.0 s
S6 TRIP COUNTER READ/WRITE
1900 Trip Counter Function --- --- F38 Disabled
1901 Trip Counter Relays --- --- F57 None
1902 Trip Counter Limit 1 to 10000 --- F1 10000 Trips
S6 TOTAL ARCING CURRENT READ/WRITE
1908 Total Arcing Current Function --- --- F38 Disabled
1909 Total Arcing Current Relays --- --- F57 None
190A Total Arcing Current Start Delay 0 to 100 ms F1 32 ms
190B Total Arcing Current Limit 1 to 50000 kA
2
-cyc F1 1000 kA
2
cyc
S6 VT FAILURE READ/WRITE
1918 VT Failure Function --- --- F38 Disabled
1919 VT Failure Relays --- --- F57 None
191A VT Failure Delay 0 to 60,000 s F1 10 s
S8 SIMULATION SETUP READ/WRITE
1920 Simulation Status --- --- F48 Disabled
1921 Circuit Breaker Simulation --- --- F30 Enabled
1922 Allow Operation of Relays --- --- F57 None
S8 SIMULATION PRE-FAULT VALUES READ/WRITE
1930 Prefault Phase A/B/C Current Level 0.00 to 20.00 x CT F3 0.50 x CT
1931 Prefault Power Factor Angle 0 to 359 ° Lag F1 0° Lag
S8 SIMULATION FAULT VALUES READ/WRITE
1940 Fault Phase A-N Voltage Level 0.00 to 2.00 x VT F3 1.00 x VT
1941 Fault Phase A-N Voltage Position 0 to 359 ° Lag F1 0° Lag
1942 Fault Phase B-N Voltage Level 0.00 to 2.00 x T F3 1.00 x VT
1943 Fault Phase B-N Voltage Position 0 to 359 ° Lag F1 120° Lag
1944 Fault Phase C-N Voltage Level 0.00 to 2.00 x T F3 1.00 x VT
1945 Fault Phase C-N Voltage Position 0 to 359 ° Lag F1 240° Lag
1946 Fault Phase A Current Level 0.00 to 20.00 x CT F3 1.00 x CT
1947 Fault Phase A Current Position 0 to 359 ° Lag F1 60° Lag
1948 Fault Phase B Current Level 0.00 to 20.00 x CT F3 1.00 x CT
1949 Fault Phase B Current Position 0 to 359 ° Lag F1 180° Lag
194A Fault Phase C Current Level 0.00 to 20.00 x CT F3 1.00 x CT
194B Fault Phase C Current Position 0 to 359 ° Lag F1 300° Lag
194C Fault System Frequency 20.00 to 65.00 Hz F3 60.00 Hz
194D Fault Analog Input Current 0.00 to 20.00 mA F3 0.00 mA
194E
3
Reserved for Fault Polarizing Current Level 0.00 to 20.00 x CT F70 1.00 x CT
194F
3
Reserved for Fault Polarizing Current Position 0 to 359 ° Lag F1 0°
1950 Fault Ground Current Level 0.00 to 20.00 x CT F3 0.00 x CT
1951 Fault Ground Current Position 0 to 359 ° Lag F1 0°
1952
3
Fault Sensitive Ground Current Level 0.005 to 1.000 x CT F70 0.100 x CT

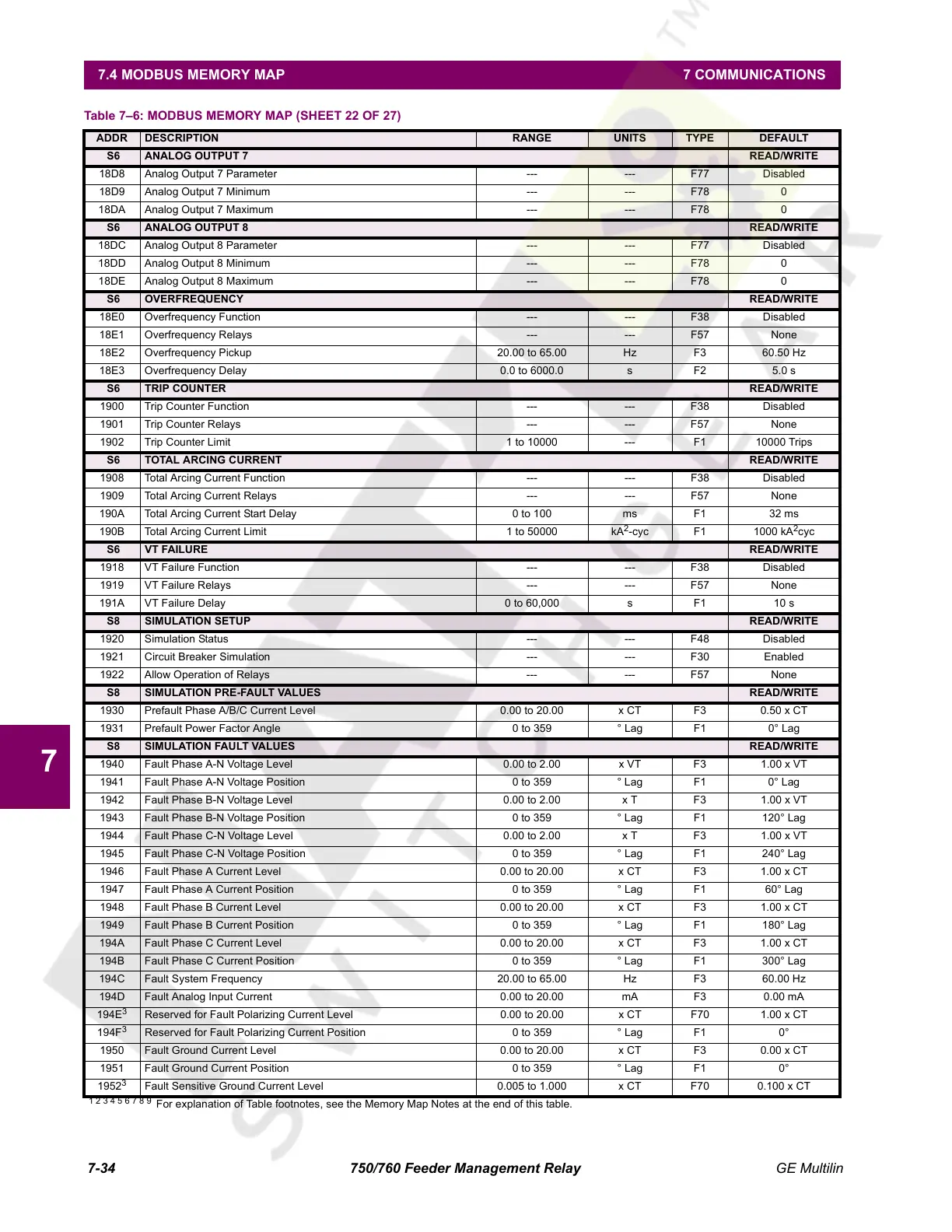

Table 7–6: MODBUS MEMORY MAP (SHEET 22 OF 27)
ADDR DESCRIPTION RANGE UNITS TYPE DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see the Memory Map Notes at the end of this table.
