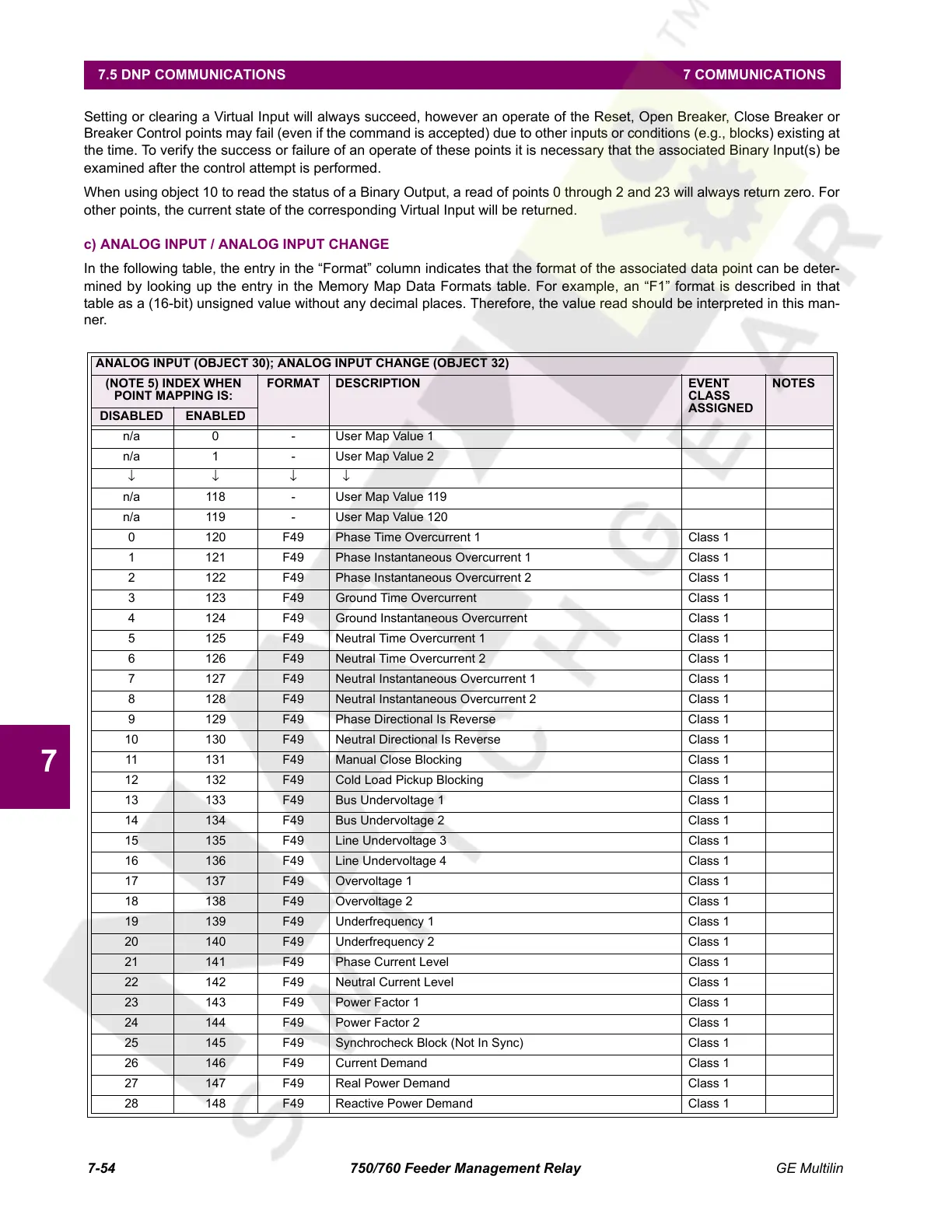

7-54 750/760 Feeder Management Relay GE Multilin
7.5 DNP COMMUNICATIONS 7 COMMUNICATIONS
7
Setting or clearing a Virtual Input will always succeed, however an operate of the Reset, Open Breaker, Close Breaker or
Breaker Control points may fail (even if the command is accepted) due to other inputs or conditions (e.g., blocks) existing at
the time. To verify the success or failure of an operate of these points it is necessary that the associated Binary Input(s) be
examined after the control attempt is performed.
When using object 10 to read the status of a Binary Output, a read of points 0 through 2 and 23 will always return zero. For
other points, the current state of the corresponding Virtual Input will be returned.
c) ANALOG INPUT / ANALOG INPUT CHANGE
In the following table, the entry in the “Format” column indicates that the format of the associated data point can be deter-
mined by looking up the entry in the Memory Map Data Formats table. For example, an “F1” format is described in that
table as a (16-bit) unsigned value without any decimal places. Therefore, the value read should be interpreted in this man-
ner.
ANALOG INPUT (OBJECT 30); ANALOG INPUT CHANGE (OBJECT 32)
(NOTE 5) INDEX WHEN
POINT MAPPING IS:
FORMAT DESCRIPTION EVENT
CLASS
ASSIGNED
NOTES
DISABLED ENABLED
n/a 0 - User Map Value 1
n/a 1 - User Map Value 2
↓↓↓↓
n/a 118 - User Map Value 119
n/a 119 - User Map Value 120
0 120 F49 Phase Time Overcurrent 1 Class 1
1 121 F49 Phase Instantaneous Overcurrent 1 Class 1
2 122 F49 Phase Instantaneous Overcurrent 2 Class 1
3 123 F49 Ground Time Overcurrent Class 1
4 124 F49 Ground Instantaneous Overcurrent Class 1
5 125 F49 Neutral Time Overcurrent 1 Class 1
6 126 F49 Neutral Time Overcurrent 2 Class 1
7 127 F49 Neutral Instantaneous Overcurrent 1 Class 1
8 128 F49 Neutral Instantaneous Overcurrent 2 Class 1
9 129 F49 Phase Directional Is Reverse Class 1
10 130 F49 Neutral Directional Is Reverse Class 1
11 131 F49 Manual Close Blocking Class 1
12 132 F49 Cold Load Pickup Blocking Class 1
13 133 F49 Bus Undervoltage 1 Class 1
14 134 F49 Bus Undervoltage 2 Class 1
15 135 F49 Line Undervoltage 3 Class 1
16 136 F49 Line Undervoltage 4 Class 1
17 137 F49 Overvoltage 1 Class 1
18 138 F49 Overvoltage 2 Class 1
19 139 F49 Underfrequency 1 Class 1
20 140 F49 Underfrequency 2 Class 1
21 141 F49 Phase Current Level Class 1
22 142 F49 Neutral Current Level Class 1
23 143 F49 Power Factor 1 Class 1
24 144 F49 Power Factor 2 Class 1
25 145 F49 Synchrocheck Block (Not In Sync) Class 1
26 146 F49 Current Demand Class 1
27 147 F49 Real Power Demand Class 1
28 148 F49 Reactive Power Demand Class 1
