GE Multilin 750/760 Feeder Management Relay 7-55
7 COMMUNICATIONS 7.5 DNP COMMUNICATIONS
7
29 149 F49 Apparent Power Demand Class 1
30 150 F49 Analog Input Threshold 1 Class 1
31 151 F49 Analog Input Threshold 2 Class 1
32 152 F49 Analog Input Rate of Change 1 Class 1
33 153 F49 Analog Input Rate of Change 2 Class 1
34 154 F49 Overfrequency Class 1
35 155 F49 Trip Counter Class 1
36 156 F49 Arcing Current Class 1
37 157 F49 VT Failure Class 1
38 158 F49 Breaker Failure Class 1
39 159 F49 Breaker Operation Failure Class 1
40 160 F49 Trip Coil Monitor Class 1
41 161 F49 Close Coil Monitor Class 1
42 162 F49 User Input A Class 1
43 163 F49 User Input B Class 1
44 164 F49 User Input C Class 1
45 165 F49 User Input D Class 1
46 166 F49 User Input E Class 1
47 167 F49 User Input F Class 1
48 168 F49 User Input G Class 1
49 169 F49 User Input H Class 1
50 170 F49 Negative Sequence Instantaneous Overcurrent Class 1
51 171 F49 Negative Sequence Time Overcurrent Class 1
52 172 F49 Negative Sequence Overvoltage Class 1
53 173 F49 Undervoltage Restoration Class 1
54 174 F49 Underfrequency Restoration Class 1
55 175 F49 Phase Time Overcurrent 2 Class 1
56 176 F49 Frequency Decay Class 1
57 177 F49 Negative Sequence Directional Is Reverse Class 1
58 178 F49 Sensitive Ground Instantaneous Overcurrent Class 1
59 179 F49 Sensitive Ground Time Overcurrent Class 1
60 180 F49 Sensitive Ground Directional Is Reverse Class 1
61 181 F1 Phase A RMS Current Class 2 Note 3
62 182 F1 Phase B RMS Current Class 2 Note 3
63 183 F1 Phase C RMS Current Class 2 Note 3
64 184 F1 Percent Of Load-To-Trip Class 2 Note 3
65 185 F1 Ground Current Class 2 Note 3
66 186 F3 Phase A-Neutral RMS Voltage Class 2 Note 3
67 187 F3 Phase B-Neutral RMS Voltage Class 2 Note 3
68 188 F3 Phase C-Neutral RMS Voltage Class 2 Note 3
69 189 F3 Phase A-Phase B RMS Voltage Class 2 Note 3
70 190 F3 Phase B-Phase C RMS Voltage Class 2 Note 3
71 191 F3 Phase C-Phase A RMS Voltage Class 2 Note 3
72 192 F3 Sensitive Ground Current Class 2 Note 3
73 193 F1 Average Current Class 2 Note 3
74 194 F3 Average Line Voltage Class 2 Note 3

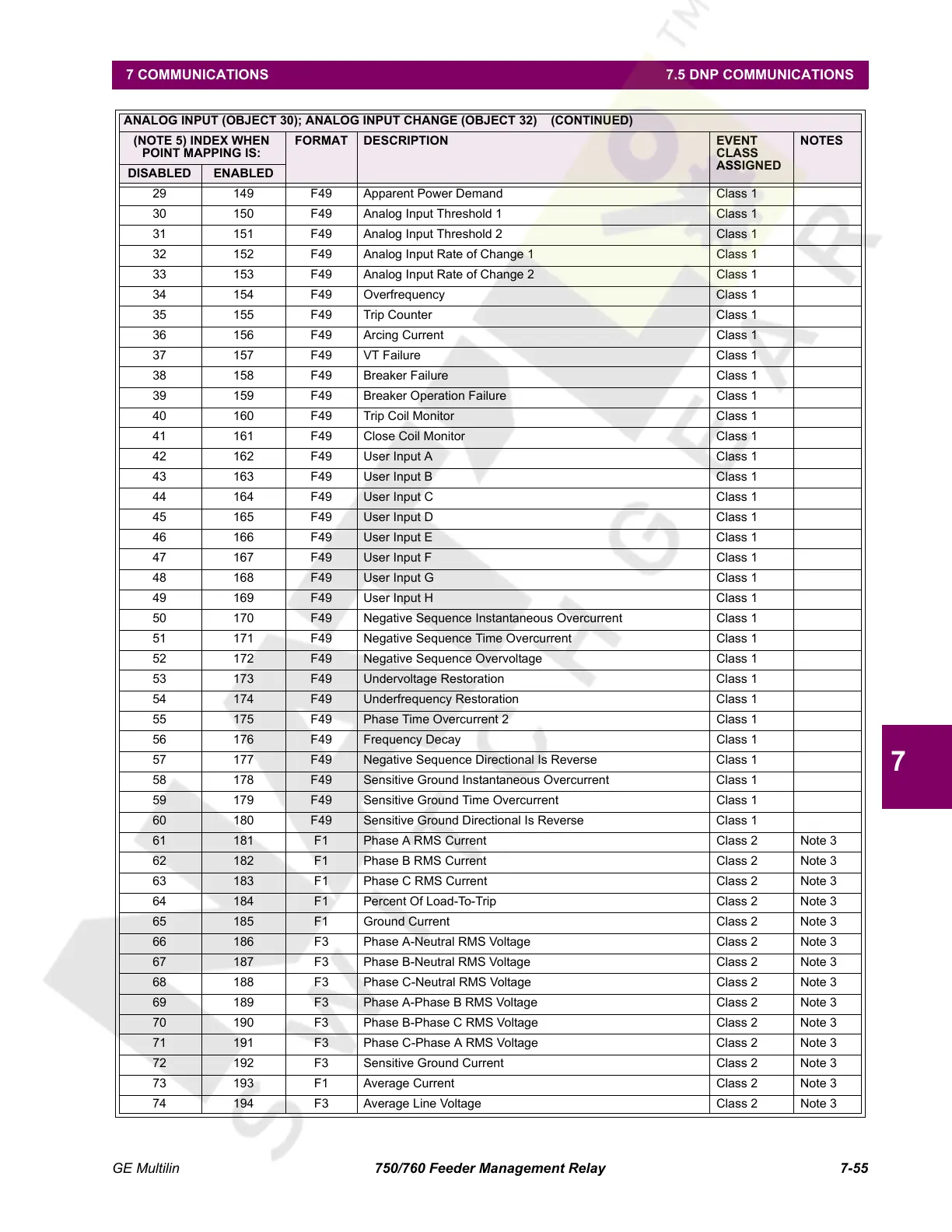

ANALOG INPUT (OBJECT 30); ANALOG INPUT CHANGE (OBJECT 32) (CONTINUED)
(NOTE 5) INDEX WHEN
POINT MAPPING IS:
FORMAT DESCRIPTION EVENT
CLASS
ASSIGNED
NOTES
DISABLED ENABLED
