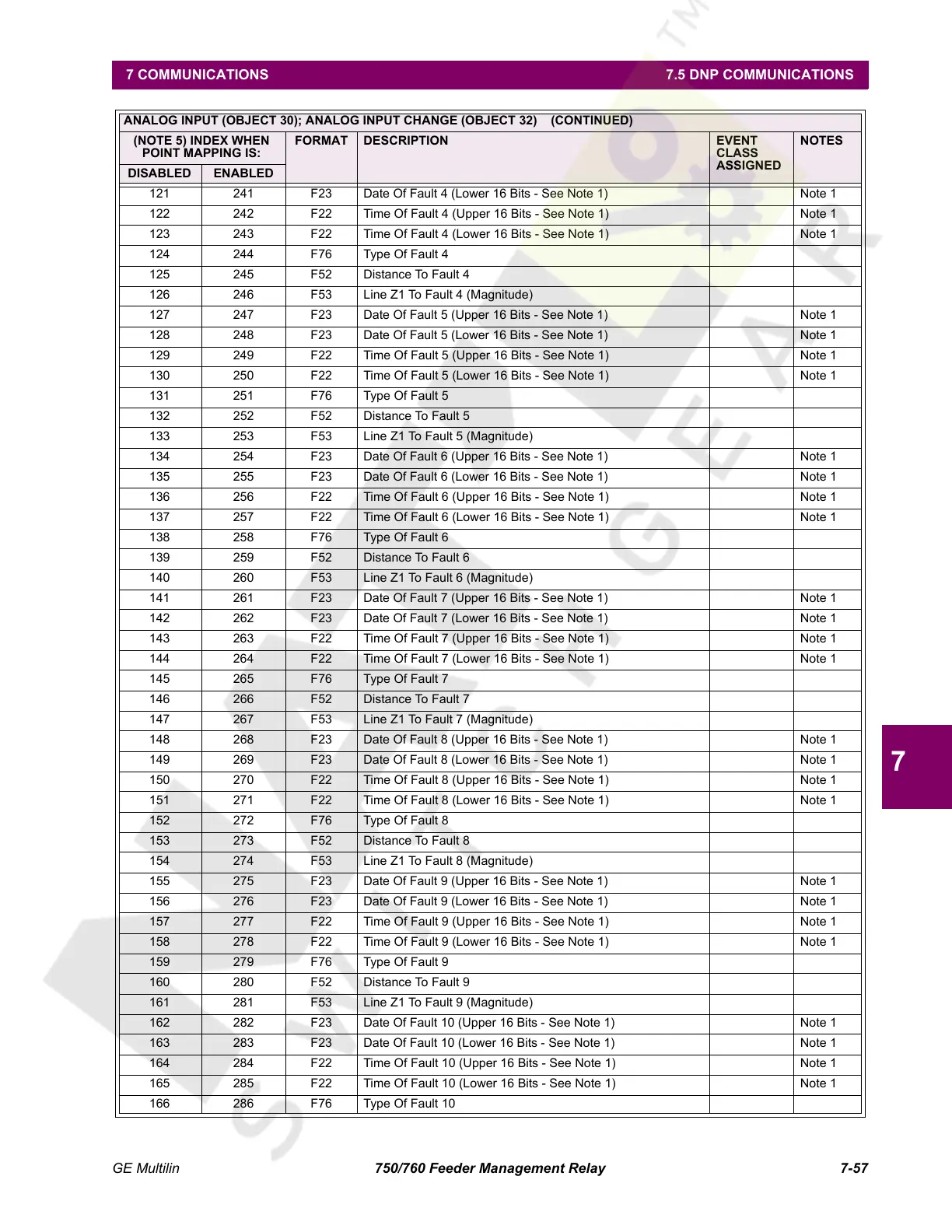

GE Multilin 750/760 Feeder Management Relay 7-57
7 COMMUNICATIONS 7.5 DNP COMMUNICATIONS
7
121 241 F23 Date Of Fault 4 (Lower 16 Bits - See Note 1) Note 1
122 242 F22 Time Of Fault 4 (Upper 16 Bits - See Note 1) Note 1
123 243 F22 Time Of Fault 4 (Lower 16 Bits - See Note 1) Note 1
124 244 F76 Type Of Fault 4
125 245 F52 Distance To Fault 4
126 246 F53 Line Z1 To Fault 4 (Magnitude)
127 247 F23 Date Of Fault 5 (Upper 16 Bits - See Note 1) Note 1
128 248 F23 Date Of Fault 5 (Lower 16 Bits - See Note 1) Note 1
129 249 F22 Time Of Fault 5 (Upper 16 Bits - See Note 1) Note 1
130 250 F22 Time Of Fault 5 (Lower 16 Bits - See Note 1) Note 1
131 251 F76 Type Of Fault 5
132 252 F52 Distance To Fault 5
133 253 F53 Line Z1 To Fault 5 (Magnitude)
134 254 F23 Date Of Fault 6 (Upper 16 Bits - See Note 1) Note 1
135 255 F23 Date Of Fault 6 (Lower 16 Bits - See Note 1) Note 1
136 256 F22 Time Of Fault 6 (Upper 16 Bits - See Note 1) Note 1
137 257 F22 Time Of Fault 6 (Lower 16 Bits - See Note 1) Note 1
138 258 F76 Type Of Fault 6
139 259 F52 Distance To Fault 6
140 260 F53 Line Z1 To Fault 6 (Magnitude)
141 261 F23 Date Of Fault 7 (Upper 16 Bits - See Note 1) Note 1
142 262 F23 Date Of Fault 7 (Lower 16 Bits - See Note 1) Note 1
143 263 F22 Time Of Fault 7 (Upper 16 Bits - See Note 1) Note 1
144 264 F22 Time Of Fault 7 (Lower 16 Bits - See Note 1) Note 1
145 265 F76 Type Of Fault 7
146 266 F52 Distance To Fault 7
147 267 F53 Line Z1 To Fault 7 (Magnitude)
148 268 F23 Date Of Fault 8 (Upper 16 Bits - See Note 1) Note 1
149 269 F23 Date Of Fault 8 (Lower 16 Bits - See Note 1) Note 1
150 270 F22 Time Of Fault 8 (Upper 16 Bits - See Note 1) Note 1
151 271 F22 Time Of Fault 8 (Lower 16 Bits - See Note 1) Note 1
152 272 F76 Type Of Fault 8
153 273 F52 Distance To Fault 8
154 274 F53 Line Z1 To Fault 8 (Magnitude)
155 275 F23 Date Of Fault 9 (Upper 16 Bits - See Note 1) Note 1
156 276 F23 Date Of Fault 9 (Lower 16 Bits - See Note 1) Note 1
157 277 F22 Time Of Fault 9 (Upper 16 Bits - See Note 1) Note 1
158 278 F22 Time Of Fault 9 (Lower 16 Bits - See Note 1) Note 1
159 279 F76 Type Of Fault 9
160 280 F52 Distance To Fault 9
161 281 F53 Line Z1 To Fault 9 (Magnitude)
162 282 F23 Date Of Fault 10 (Upper 16 Bits - See Note 1) Note 1
163 283 F23 Date Of Fault 10 (Lower 16 Bits - See Note 1) Note 1
164 284 F22 Time Of Fault 10 (Upper 16 Bits - See Note 1) Note 1
165 285 F22 Time Of Fault 10 (Lower 16 Bits - See Note 1) Note 1
166 286 F76 Type Of Fault 10
ANALOG INPUT (OBJECT 30); ANALOG INPUT CHANGE (OBJECT 32) (CONTINUED)
(NOTE 5) INDEX WHEN
POINT MAPPING IS:
FORMAT DESCRIPTION EVENT
CLASS
ASSIGNED
NOTES
DISABLED ENABLED
