GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
3 - 36 Section 3-6 - Configuring the LOGIQ Totus

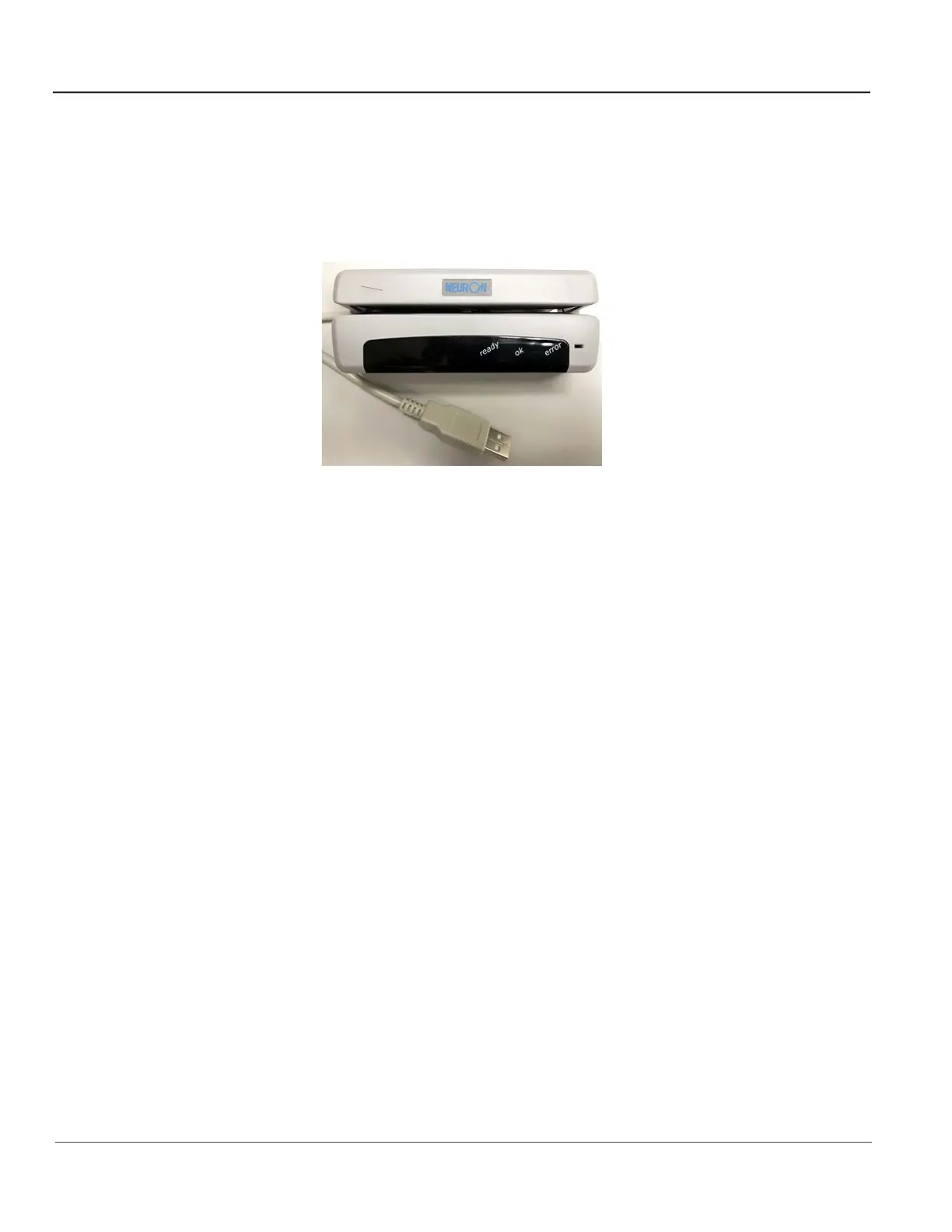

3-6-5 Magstripe card reader
The Magstripe card reader can be used to populate the following:
• Patient screen: Patient ID, First Name, Last Name, Middle Name, Perf. Physician, Ref. Physician.
• Worklist: Patient ID, Search String.
• Image Display: Comments (Annotation)
To connect the card reader:
1.) Connect the card reader to any USB port. For example, on the user USB ports on the left side of
the upper operator panel Boot up the Ultrasound system.
2.) Scan the card that comes with the card reader to activate device.
NOTE: Consult the card reader manufacturer’s instructions. This configuration process will vary based
on the card reader model/manufacturer and the keyboard language set on the Ultrasound
system.
Once the configuration process is complete, the card reader is ready to use to start a new patient.
You do not need to repeat this process if software is reloaded, this card reader can be used on any
scanner as long as they have the same keyboard language selection.
