GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
Chapter 4 Functional Checks 4 - 17
4-3-6 Basic control functional checks
Different functions can be assigned to the basic controls depending on the current active mode. The
trackball area consist of the following:
Controls are grouped together by function for ease of use.

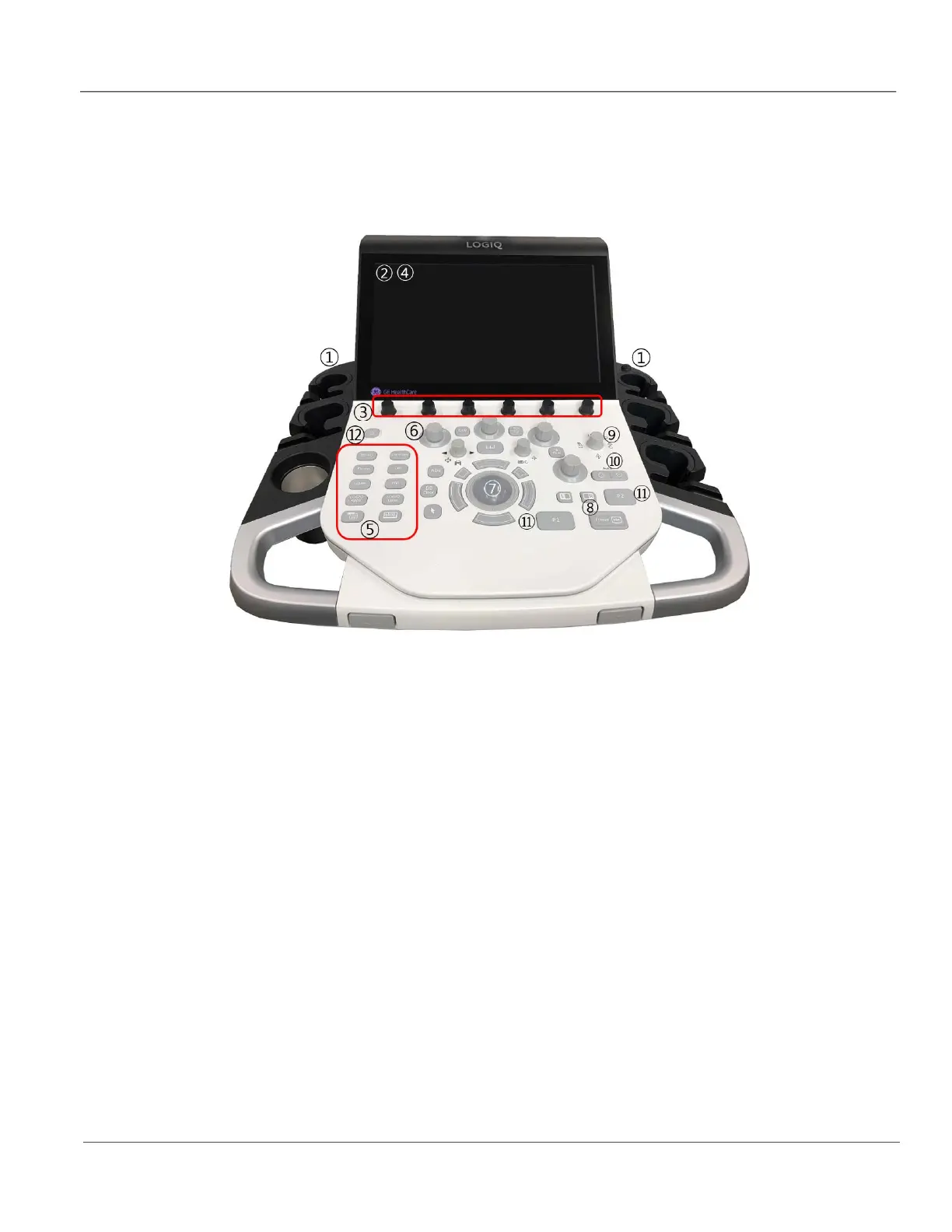

Figure 4-11 Control Panel
1.
Probe holder and cable management
7.
Trackball, Trackball keys, Pointer, Measure,
Comment, Body pattern, Clear,
Zoom,Programmable keys
2.
Touch Panel
8.
L/R, Freeze keys
3.
Joystick controls
9.
Steer/Width/Depth/Reverse joystick
4.
On screen keyboard (not display in this
graphic)
10.
Auto, CF/PW auto positioning
5.
User defined keys
11.
P1, P2
6.
Mode/Gain/XYZ (3D) controls
12.
Start/Stop
