GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
5 - 26 Section 5-8 - Backplane Description
5-8-2 Backplane (UEPP)
The LOGIQ Totus Peripheral board (UEPP) is part of an Ultrasound system, main purpose is to connect
SSD, UVSC-T and WIFI module. UEPP support 2EA USB 3.0, LAN, HDMI and audio for user.

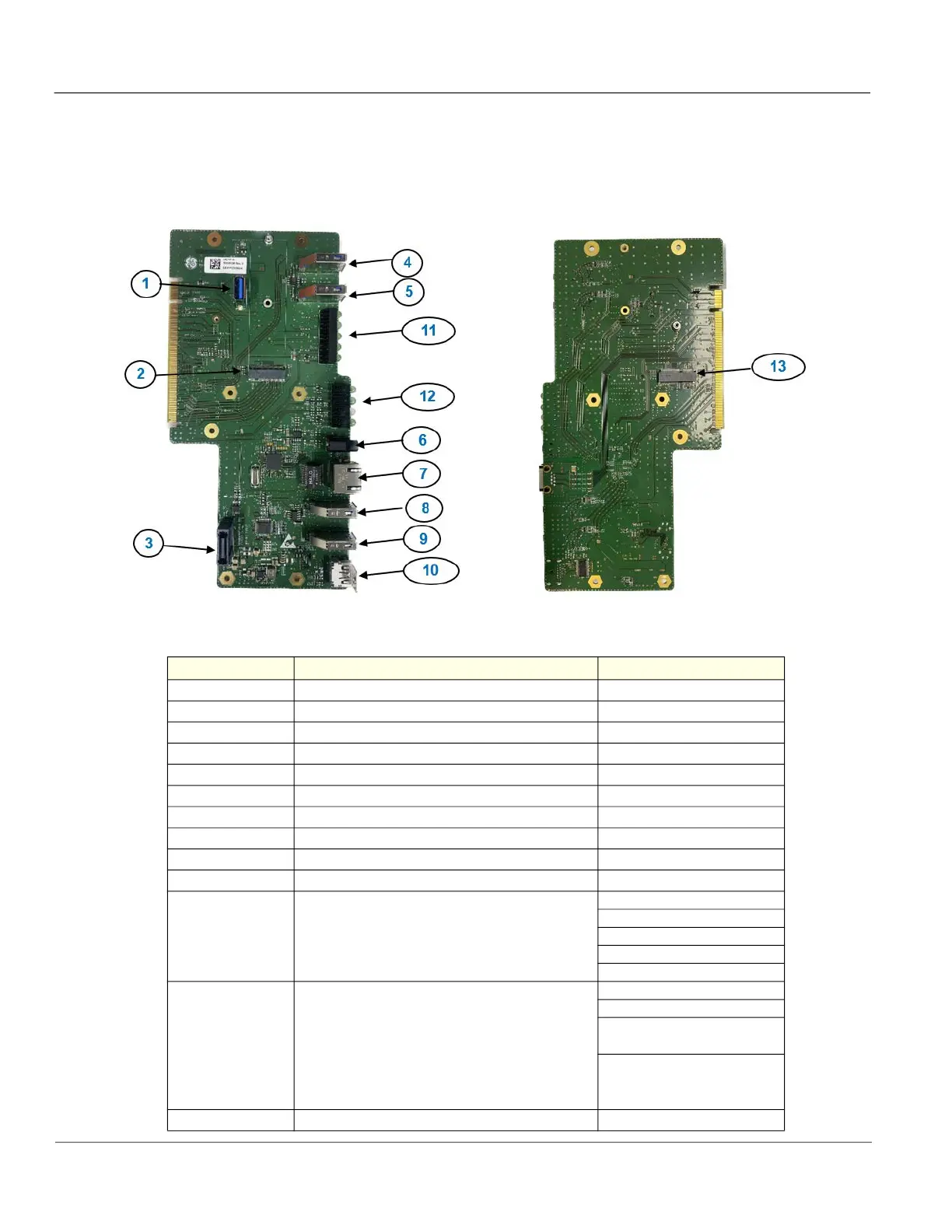

Figure 5-15 UEPP
Table 5-6 UEPP table
Connector Description Additional Information
1
USB3.0 port for security dongle
2
M.2 Port for SSD
3
Connector for UVSC option
HDMI, 5V, 3.3V, I2C
4
USB3.0 port for Wireless LAN and Bluetooth dongle
5
USB3.0 port for Wireless LAN and Bluetooth dongle
6
Audio Jack port for user
stereo
7
LAN port
Giga bit ethernet
8
USB3.0 port for user
9
USB3.0 port for user
10
HDMI port for user
11
System power status LED indicator
12V
5V
-5V
Standby 5V
HV status LED
12
System status LED indicator
SSD Status
LAN Activation
LAN Speed: 1Gbps = amber
100Mbps = green
Battery charge
LED Blink = charge
LED On = full charge
13
WIFI module connector
