7-8-5 Automatic probe diagnostics (VITAOnDemand) (continued)
After running the test again with a test fail, perform the following steps to identify if the failure is a system
problem or a probe problem:
To determine a system failure or a probe failure:
1.) Using a good probe on the same connector, run a VITAOnDemand probe test.
2.) If the test passes, then this might be a probe problem. Refer to the detailed VITA analysis results in
the coming days from the Datalake.
3.) If the test fails, then this is a system problem.
4.) Run system diagnostics to detect where the problem is and replace whichever board is causing the
problem.
5.) If the system diagnostics passes, this is relay board problem.
6.) Replace the relay board.
7-8-6 Advanced Probe Option
If the following probes does not activate even if you select, check the Advanced Probe Option
(H46612LS) is installed in Utility -> Admin-> System Admin.
• C1-6-D probe
• C1-6VN-D probe
• C3-10-D probe
• M5Sc-D Probe

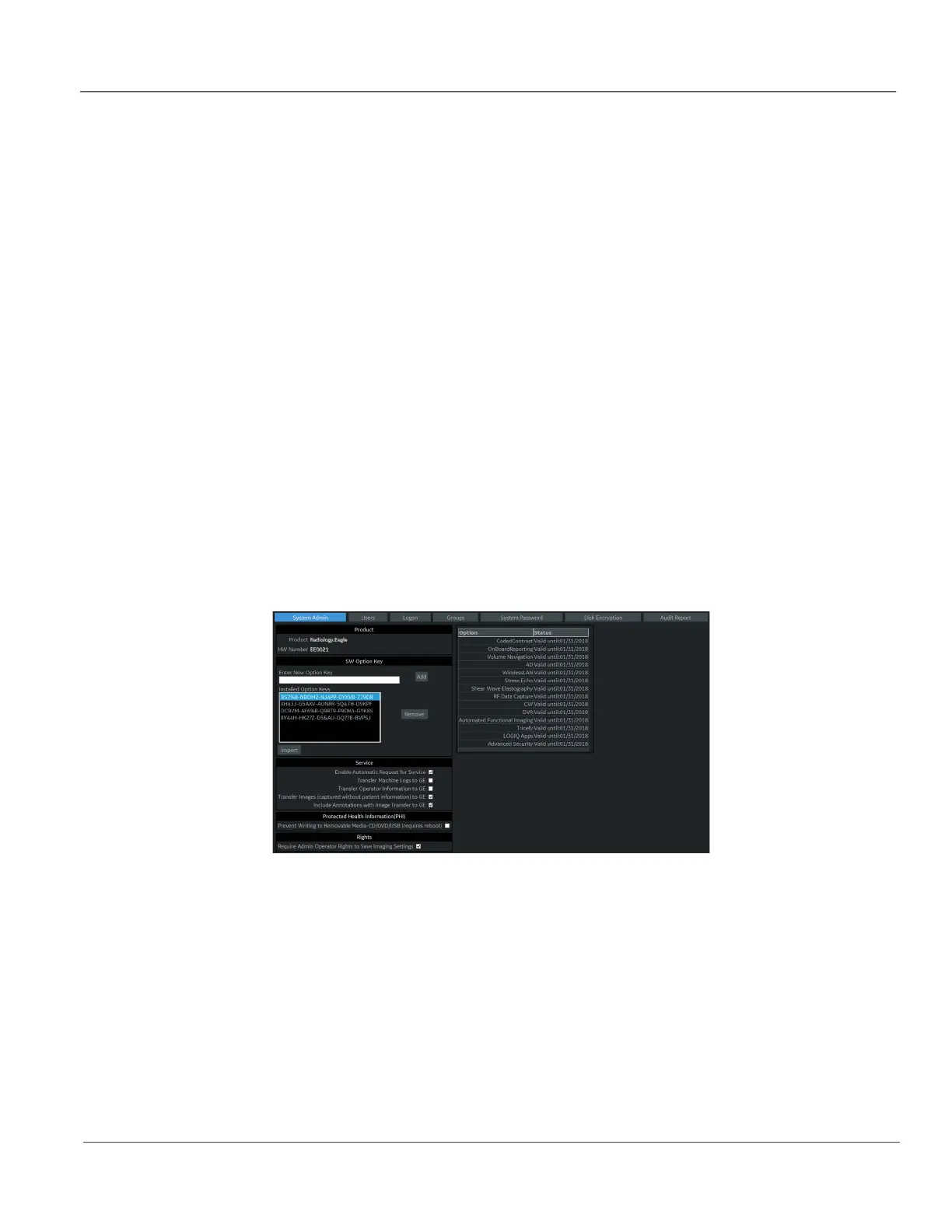

Figure 7-30 System Admin Window
