Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
4 - 16 Section 4-3 - Functional Checks
4-3-4 Alphanumeric keyboard functional checks
To perform the function checks for the alphanumeric keyboard:
1.) Press Comment on the operator control panel to activate Comment.
2.) Type any comments using alphanumeric keys to confirm keyboard functionality.
4-3-5 Footswitch functional checks
1.) Plug in the footswitch.
2.) Select Utility > Application. Under Footswitch, you should the footswitch programming options
for Left, Middle, and Right.
3.) Program the left, middle, and right footswitch pedals for Freeze.
4.) Scan and use each footswitch pedal to freeze and unfreeze to confirm each one works.

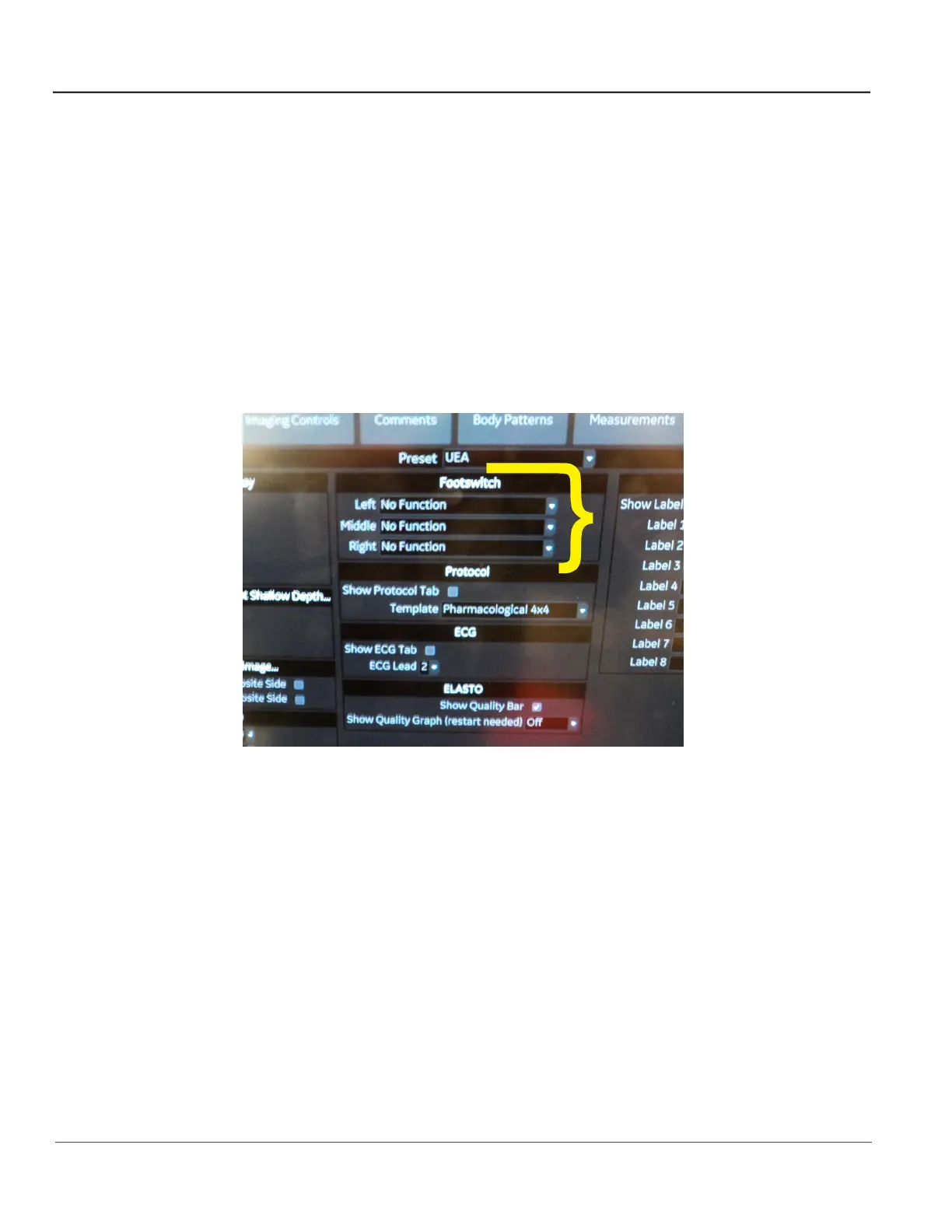

Figure 4-10 Footswitch Functional Checks
