3-6-6 LAN Protection Cable (Option)
To prevent the breakage of LAN cables, it is recommended to use LAN protection cables.
Follow the steps below to ensure proper installation:
1.) Insert one end of the LAN protection cable into the LAN port of scanner firmly but gently.
Ensure that the connector is aligned properly to prevent any undue stress on the cable.
2.) Take the other end of the LAN protection cable and connect it to the LAN port on the networking
equipment or wall socket.
Make sure the LAN protection cable is secured in place and not subjected to excessive tension or
pulling.
By using LAN protection cables, you can significantly reduce the risk of claw breakage and ensure
a stable and reliable network connection.

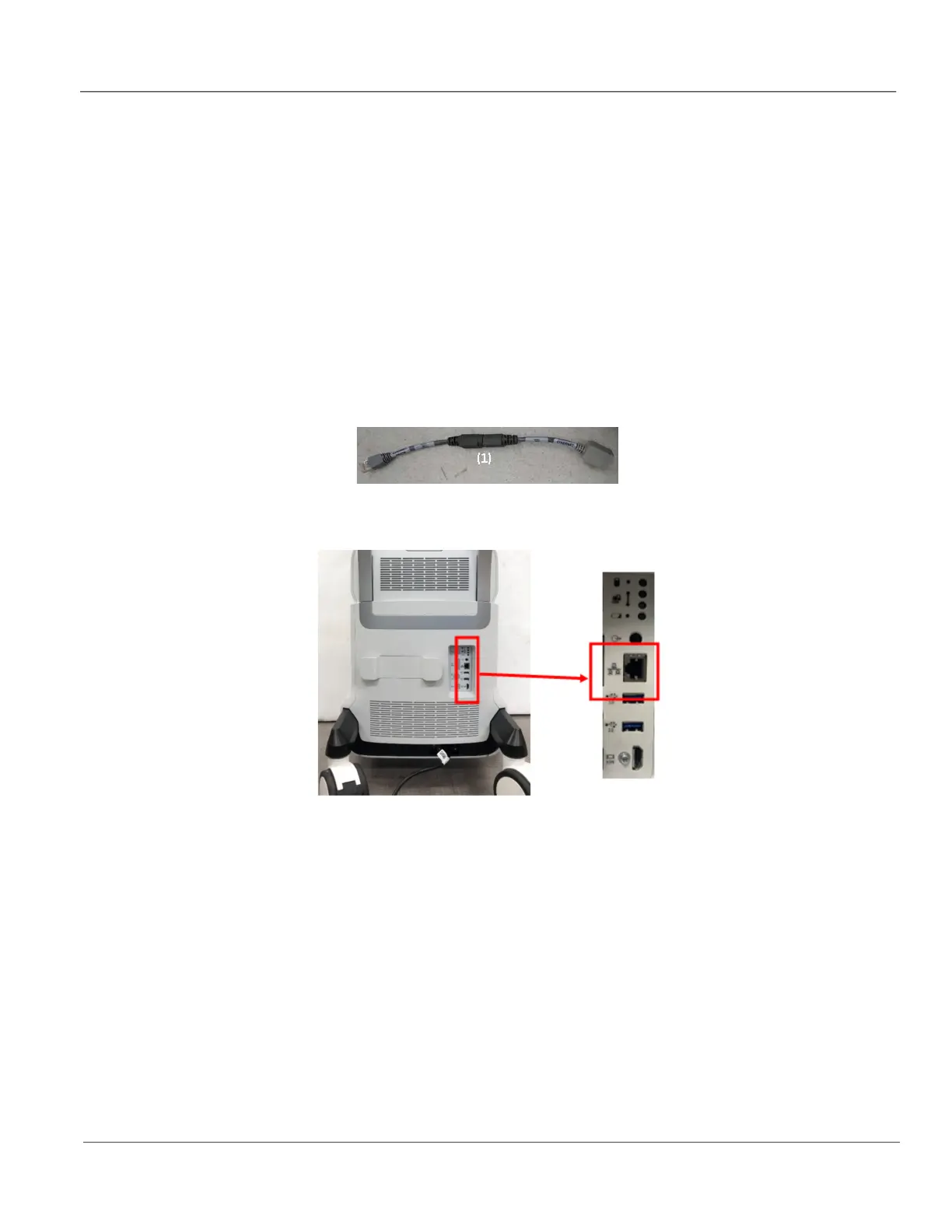

Figure 3-19 LAN protection cable
Figure 3-20 LAN cable with protection cable (example)
