Chapter 2 Site Preparations 2 - 11
2-3-3 Desirable features
In addition to the floor plan suggestions shown in Figure 2-1 and Figure 2-2, a nearby waiting room and
a receptacle for bio–hazardous waste, like used probe sheaths is suggested. Grid represents 30.5 x
30.5 cm (1 x 1 foot).
2-3-4 Minimal floor plan suggestions
Floor Plan Suggestion 4.27 x 5.18 m (14 x 17 foot) Key

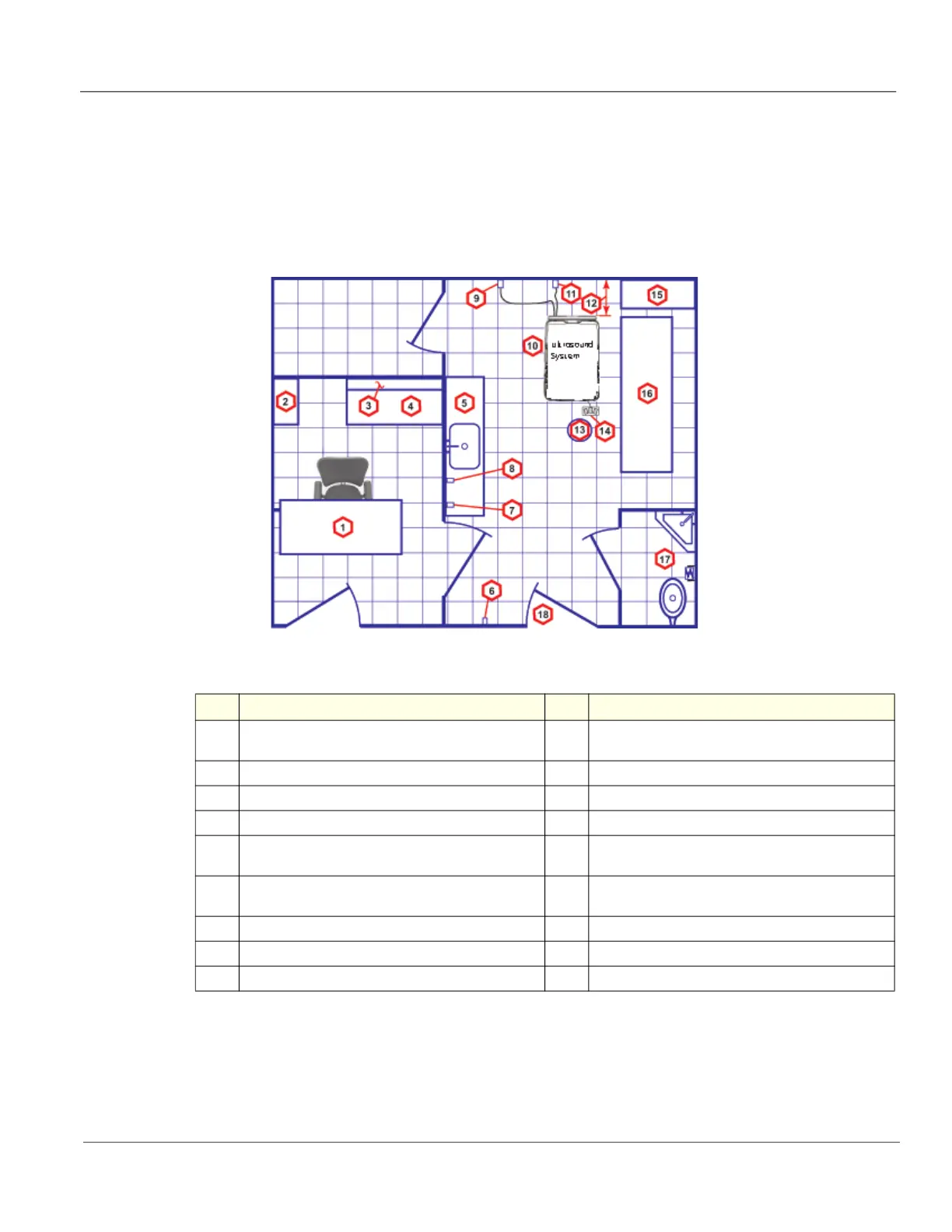

Figure 2-1 Floor Plan Suggestion 4.27 x 5.18 m (14 x 17 foot)
Item Description Item Description
1.
Secretary or doctors desk
2.
Lockable cabinet ordered by GE HealthCare for its
software and proprietary manuals
3.
Film viewer
4.
Counter top
5.
Counter top and sink with hot and cold water
6.
Overhead light dimmer – dual level lighting (bright/dim)
7.
Emergency oxygen
8.
Suction line
9.
Dedicated power outlet – circuit breaker protected and
easily accessible
10.
LOGIQ Totus
11.
Network interface
12.
45,7 cm (1.5 ft) distance of LOGIQ Totus from wall or
objects
13.
Stool
14.
Footswitch
15.
Storage for linens and equipment
16.
Examination table – 193 x 61 cm (76 x 24 inches)
17.
Lavatory and dressing room
18.
Door – at least 76 cm (30 inches)
